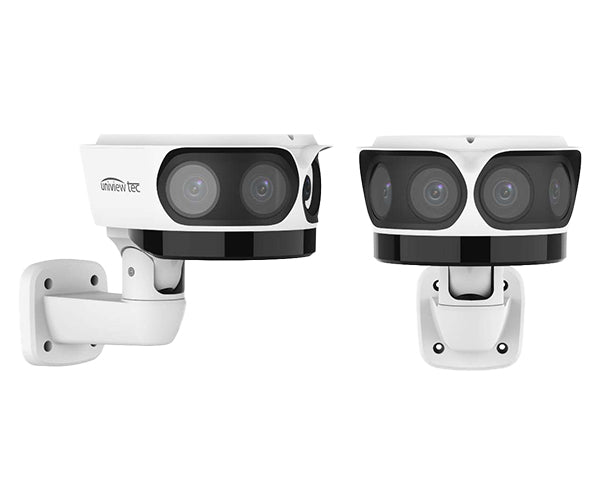

16MP, 180° Panoramic, LightHunter Bullet, WDR, IR, IP67, 12V/PoE
The Uniview Tec 16MP 180° Panoramic LightHunter Bullet Camera delivers unmatched surveillance with four 4MP CMOS sensors, seamlessly stitching a 16MP panoramic view for complete 180° coverage. LightHunter technology ensures ultra-high color imaging in near darkness at just 0.001 Lux, while Smart IR LEDs provide up to 164 feet of night vision. With H.265 compression, it optimizes bandwidth and storage without compromising quality. True Day/Night and Digital WDR enhance clarity in all lighting conditions, and a built-in fan prevents heat buildup and window mist. Designed for durability, this IP67-rated camera supports PoE, 24VDC, and 24VAC power options, features tampering alerts, alarm I/O, and two-way audio, and integrates seamlessly with Uniview Tec’s Guard Station Software and Guard Viewer Mobile App.
Features
Features
- 4 x 4MP CMOS Sensors with 2.8mm fixed lens, provide a stitched 16MP 180° panoramic view
- Exceptional Video Quality with 13MP, 4800 x 2688 Resolution @ 30fps in the mainstream
- LightHunter illumination technology ensures ultra-high color image up to 0.001 Lux
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 164 Feet
- TRUE Day/Night and Digital WDR functionality for all Lighting Conditions
- Triple Video Streams; Backlight Compensation, 3D DNR, Two-way Audio; ONVIF Profile S Compliant
- Built-in fan allows dissipating heat and window mist elimination
- Built-in Micro-SD Card Slot enables local storage up to 512GB
- General event functionality features such as Tampering, Watermark, Alarm input/output
- 3-Way Axis, IP67 Weather Resistant; PoE & 24VDC / 24VAC Power Options
- Supported by Uniview Tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device
Specifications
Specifications
| CAMERA SPECIFICATIONS | |
| Sensor | 4 x 1/1.8'' CMOS |
| Minimum Illumination | Color: 0.001 lux (F1.6 AGC ON), 0 Lux with IR |
| Day / Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto / Manual (1 ~ 1/100000s) |
| WDR | Digital |
| S/N Ratio | >56dB |
| Lens | Fixed 2.8mm, F1.6, 180° Horizontal FOV |
| DORI Distance | Detect: 63m, Observe: 25.2m, Recognize: 12.6m, Identify: 6.3m |
| IR Illumination | Up to 50m (164ft) IR range, Wavelength 850nm |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 4800 x 2688, Max 30fps, Sub Stream: 2688 x 1520, Max 30fps |
| OSD & ROI | Up to 10 OSDs, Up to 8 ROI/Privacy Mask areas |
| Audio Compression | G.711U, G.711A (128 Kbps) |
| Storage | Micro SD, up to 256GB, Network Storage: ANR |
| Protocols | IPv4, IPv6, ONVIF (Profile S, G, T), RTSP, HTTPS, and more |
| Power | AC 24V ±25%, DC 24V ±25%, PoE (IEEE 802.3af), Max 27W |
| Dimensions | 258.8 x 211 x 115mm (10.2 x 8.3 x 4.5”) |
| Weight | 2.27kg (5lb) |
| Operating Temp | -40°C ~ 70°C (-40°F ~ 158°F), Humidity ≤ 95% RH (non-condensing) |
Additional Information
Additional Information
Mounting Accessories
This camera is compatible with the following mounts:
What's in the Box
What's in the Box
- Qty 1 – 16 MP 180° Panoramic LightHunter Bullet Camera
