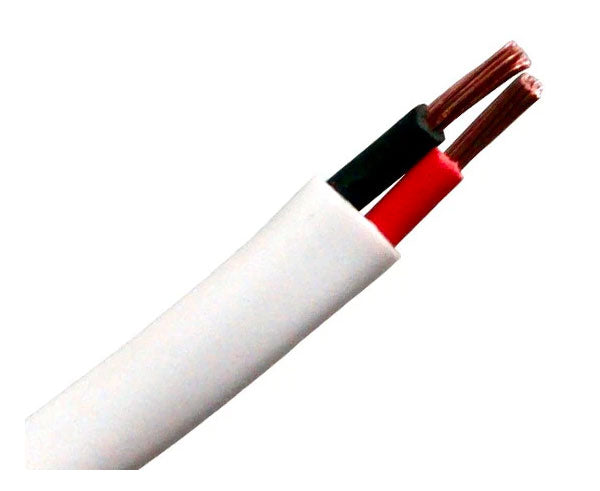

Oxygen Free Speaker Wire/ Audio Cable
18 Gauge
This 18-gauge speaker wire features two bare copper conductors, each with 16 strands for improved conductivity. Crafted from oxygen-free pure copper, it ensures high-quality audio signals from audio components to a receiver or amplifier. Supplied in a 1000-foot pull box with a white PVC outer jacket.
Features
Features
18 Gauge Speaker Wire
- Gauge: 18 AWG
- # of Conductors: 2
- # of Strands: 16
- Shielding: N/A
- # of Feet on Roll: 1000
- Ratings: CMR
- Jacket Color: White
- PVC Jacket
- Pull Box
Specification
Specification
18 AWG Speaker Wire Specs |
|
|---|---|
| Conductor | Stranded Bare Copper |
| Conductor Size | 18 AWG |
| Number of Strands | 16 Strands |
| Insulation Diameter | 2.64mm |
| Insulation | PVC |
| Outer Jacket Diameter | 5.64mm |
| Jacket | White PVC |
| Insulation Colors | Red Black |
| Temperature | 75°C |
| Center Resistance | 21.20 (Ω/km) |
Additional Information
Additional Information
Additional Information |
|
| Standards | UL | CMR |
| Important Notes | The information contained in this document is proprietary to CRN Solutions and may not be disclosed or transmitted to any other parties without the express written permission of CRN Solutions. This information is provided for quotation purposes only. |
To learn more about our Audio Bulk Cable here is a link to a page containing more information on our premium Audio Bulk Cable.
What's in the Box
What’s in the Box
- Qty 1 – 1000 FT 18/2 Speaker Wire (18 AWG, 2 conductors, 16 strands, white PVC jacket, CMR-rated)
