This product is intended to be purchased by installers only
Description
Description

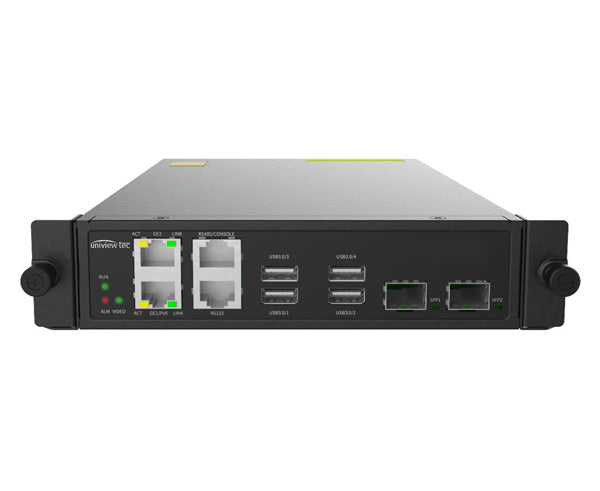

1ch 8K Video Decoder
This 1ch 8K Video Decoder features embedded Linux OS ensures 24/7 stable operation and prevents hackers and viruses, 1 HDMI / VGA / SDI video output. Plus supports decoding 1-ch 8K @ 60fps, 2-ch 8K @ 30fps, 8-ch 12MP @ 20fps, 8-ch 4K @ 30fps, 32-ch 1080P @ 30fps, and 72-ch 720P @ 30fps videos in parallel.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Embedded Linux OS ensures 24/7 stable operation and prevents hackers and viruses
- 1 HDMI / VGA / SDI video output
- Supports decoding 1-ch 8K @ 60fps, 2-ch 8K @ 30fps, 8-ch 12MP @ 20fps, 8-ch 4K @ 30fps, 32-ch 1080P @ 30fps, and 72-ch 720P @ 30fps videos in parallel
- Supports decoding video in H.265, H.264, MPEG4, MPEG2, and MJPEG formats
- Supports decoding video in 8K, 12MP, 4K, 1080P, 720P, and D1 resolutions, compatible with IPC streams from mainstream manufacturers in the industry
- Up to 8K (7680*4320) @ 60Hz output resolution, compatible with mainstream display devices in the industry.
- Supports decoding audio in G711.A and G711.U formats
- Supports up to 64 split screens for a single video output
- Allows users to configure and manage the device on a central server, supports GB/T28181 and standard ONVIF
- Supports synchronizing time with server by schedule
- Supports high/low-temperature alarm
Specifications
Specifications
What's in the Box
What's in the Box
- Qty 1 – Uniview DC8K 8K Video Decoder unit (277 × 40 × 191 mm, 2kg weight)
- Qty 1 – 12V DC power adapter (for <15W power consumption)
- Qty 1 – Basic documentation leaflet (compliance/warranty info)
