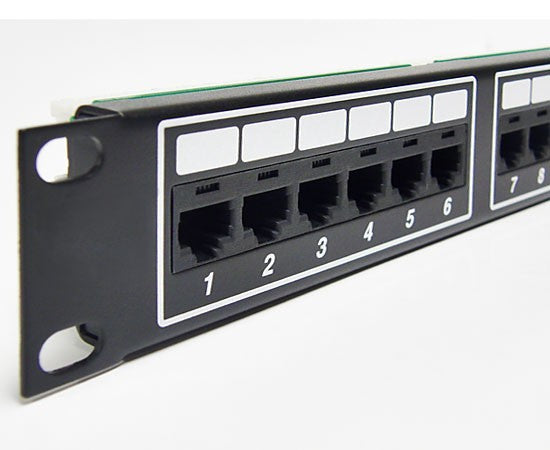

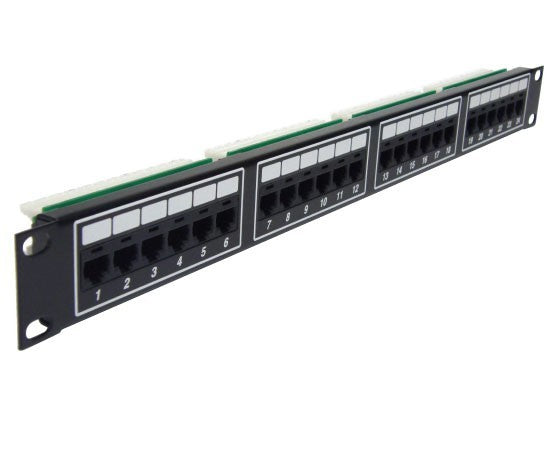

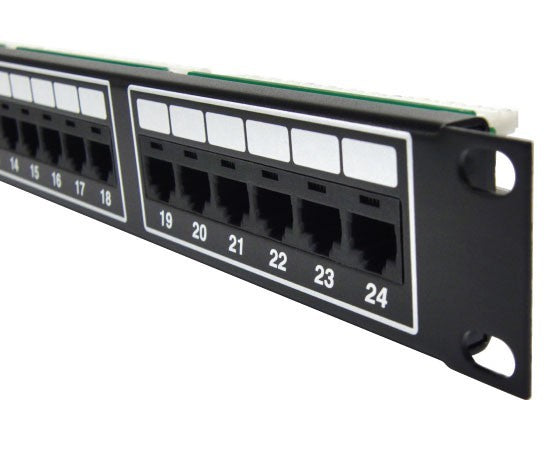

24 Port Telco Patch Panel, 6P2C, 1U
The 24 Port Telco Patch Panel accommodates 24 CAT3 6P2C connections in a 1U footprint. Engineered for high-performance voice networking applications, this rack-mounted patch panel features 50 micro-inch gold-plated, high-retention 6-Position 2-Conductor (RJ-11) contacts ensuring peak efficiency for voice network operations in business systems. The pre-wired male Telco connector on the rear is fully compatible with 25-pair female Telco cables, ensuring seamless integration with existing infrastructure. Constructed with 16-gauge cold-rolled steel, this patch panel fits standard 19" EIA rack mount width and includes a hook and loop tie for securing the 25-pair cable with either 90-degree or 180-degree cable exits. A dust cover protects the Telco connector from contaminants, while the front write-on labeling area facilitates easy port identification.
Features
Features
- 24-port configuration
- 1 rack mount space (RMS)
- Integrated with 1 male Telco connector
- Includes #12 rack screws
- Use female Amphenol connector for connection
- 6 position, 2 conductor (6P2C)
- 50 micro-inch gold-plated contacts
- High-retention RJ-11 contacts supporting at least 750 plug-to-jack mating cycles
- 2-wire USOC wiring scheme with active pins #3 and #4
- Tested to meet or exceed TIA CAT 3 performance standards
- 16-gauge cold-rolled steel construction
- 19" EIA rack mount width, 1U (1.75" height)
- Hook and loop tie for 25-pair cable management
- 90-degree or 180-degree cable exit options
- Dust cover for Telco connector protection
- Front write-on labeling area
Specifications
Specifications
| General Specifications | |
|---|---|
| Product Type | Telco Patch Panel |
| Performance | Voice (CAT 3) |
| Connector | 6P2C (RJ-11) |
| Telco Connector Gender | Male |
| Ports | 24 |
| Mounting | Rack |
| Rack Space | 1U (1.75") |
| Rack Width | 19" EIA Standard |
| Material | 16-gauge cold-rolled steel |
| Contact Plating | 50 micro-inch gold |
| Mating Cycles | At least 750 |
| Wiring Scheme | 2-wire USOC (pins #3 and #4 active) |
| Cable Management | Hook and loop tie, 90° or 180° exits |
| Packaging | Single |
| Shipping Weight | 1.41 lbs |
| Shipping Dimensions (L x W x H) | 20.30" × 15.50" × 9.00" |
| Country of Origin | Taiwan, TAA compliant |
What's in the Box
What's in the Box
- Qty 1 – 24 Port Telco Patch Panel (6P2C, 1U)
- Qty 1 – Hook and loop tie for cable management
- Qty 1 – Dust cover for Telco connector
- Qty 4 – #12 rack screws
- Qty 1 – Installation documentation
