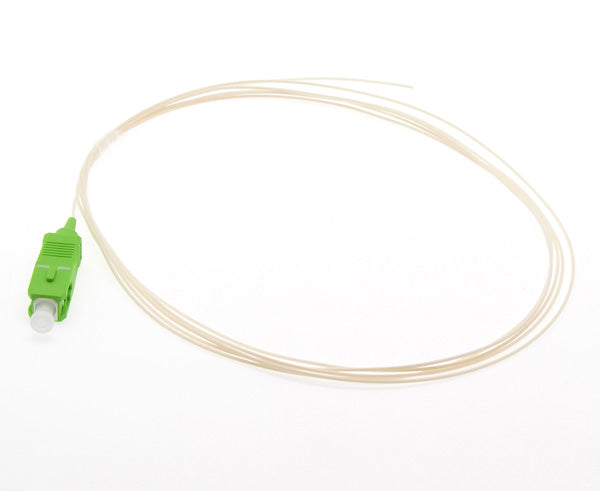

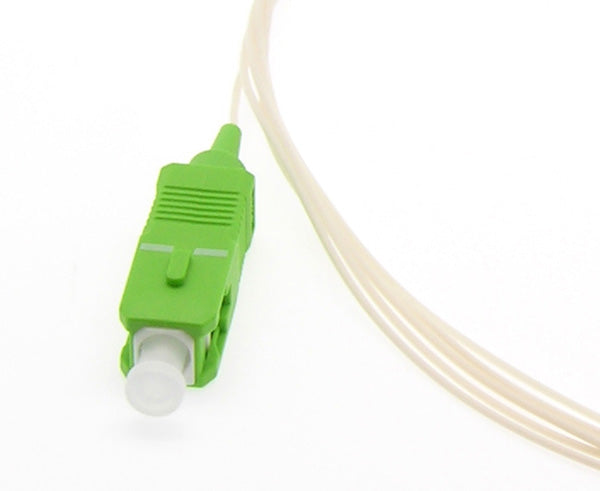

2m SC/APC Simplex Singlemode LSZH Pigtail White
Fiber pigtails are ideal for fusion and splicing, our fiber pigtails are quality tested to meet fiber industry standards and the most stringent performance specifications.
Features
Features
- Low Insertion Loss
- Low back reflection loss
- Ideal with telecommunication networks
-
Meets ISO9001 and RoHS
Specifications
Specifications
- Connector Type: SC Single Mode
- Polish Type: APC
- Return Loss: 60dB
- Insertion Loss: 0.30dB
- Length: 2m
- OD: 0.9mm
- Ferrule: Ceramic Zirconia
- Operation Temperature: -20°C to 70°C
- Jacket Type: OFNR
- Jacket Color: White
What's in the Box
What's in the Box
- Qty 1 – 2 m SC/APC singlemode fiber pigtail (900 µm buffered, LSZH white jacket)
- Qty 1 – Dust cap for the SC/APC ferrule
- Qty 1 – Heat‑shrink splice‑protection sleeve (for fusion splicing the bare end)
- Qty 1 – Anti‑static polybag or protective pouch, labeled with part number
- Qty 1 – Instruction leaflet or brief datasheet summary
- Qty 1 – 3M warranty and compliance sheet
