2MP HD Analog, Easy ColorHunter, DWDR, Turret

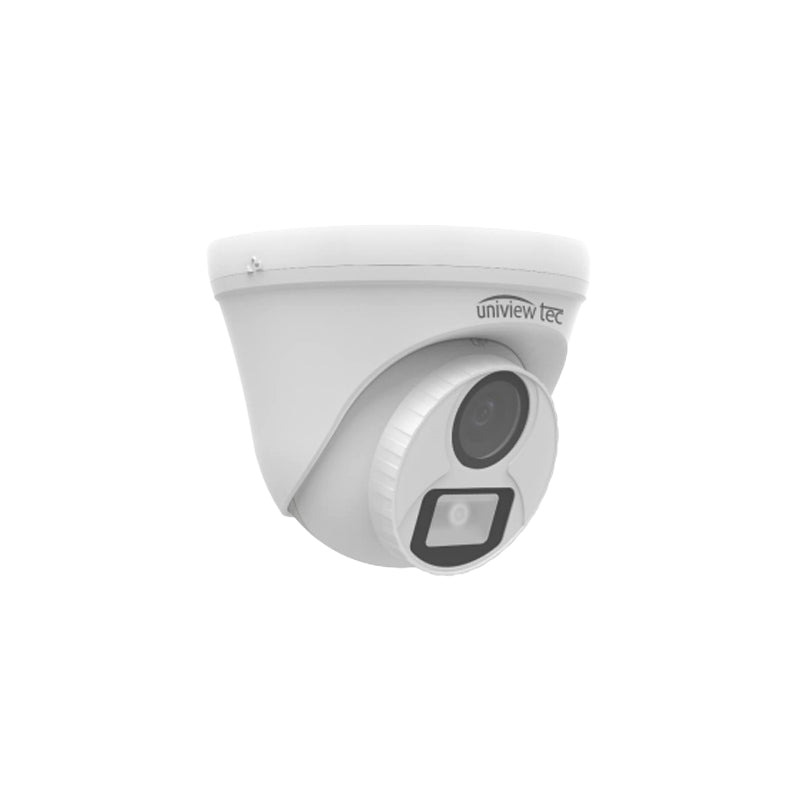

This 2.8mm fixed lens turret security camera from Uniview Tec comes capable of recording at exceptional video quality with 2MP, 1980 x 1080 resolution. TRUE Day/Night and DWDR functionality for all Lighting Conditions, built-in microphone for high quality audio transmission via coax cables.
This security camera features High Definition Analog (HD Analog) ) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary. This camera is a great choice for any security camera system.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- High Video Quality with 2MP, 1980 x 1080 Resolution
- High Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
- TVI, AHD, CVI and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and Performance
- ColorHunter Technology allows 24/7 Full-Color Imaging with White Light Illumination
- TRUE Day/Night and DWDR functionality for all Lighting Conditions
- Built-in Microphone for High Quality Audio Transmission via Coax Cables
- 2.8mm fixed lens
- Backlight Compensation and 2D DNR (Digital Noise Reduction)
- Supports 180° horizontal flip, 180° vertical flip
- Easy to Operation On Screen Display (OSD) Configuration Menu
- 12VDC Power Options; IP67 Weather Resistant Housing with Optional Mounts
- Supported by Uniview Tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Specifications
Specifications
Additional Information
Additional Information
Mounting Accessories
This camera is compatible with the following mounts:
- TR-A01-IN: Waterproof Plastic Grommet
- TR-WM03-D-IN: Wall Mount
- TR-UP06-IN: Pole Mount
- TR-CM24-IN: Pendant Mount Pipe
- TR-SE24-IN: Pendant Mount Pipe
- TR-SE24-A-IN: Pendant Mount Pipe
- TR-JB03-I-IN: Junction Box
- TR-JB07-D-IN: Junction Box
What's in the Box
What’s in the Box
- Qty 1 – 2MP HD Analog Turret Camera (2.8mm fixed lens, IP67-rated housing)
- Qty 1 – Wiring harness (for power/data connectivity)
- Qty 1 – Mounting screw kit (for securing the housing)
- Qty 1 – Quick start guide/documentation
