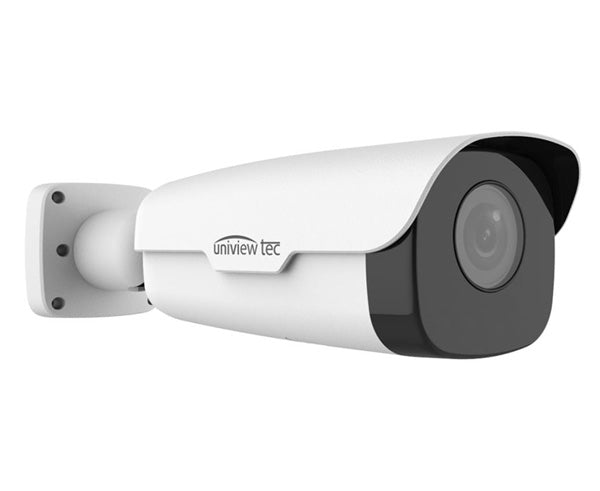

2MP StarView Bullet Camera
The StarView illumination technology by Uniview Tec provides this bullet camera with crisp color images up to 0.001lux. This camera features a long-range, 4.7~47mm motorized varifocal, automatic focus lens capable of capturing images at up to 2mp, 1920x1080 resolution. The super-efficient H.265 video compression drastically reduces bandwidth and storage requirements. It comes with built-in, powerful smart IR LED lights for 0lux nighttime operation at up to 328 feet. Its IP67 weather-resistant housing makes it a perfect option for both indoor and outdoor surveillance applications.
Use our convenient Camera Accessory Guide to determine what items you will need for installation.
Features
Features
- StarView illumination technology provides crisp color images up to 0.001Lux (F1.6)
- Long Range 4.7 ~ 47mm motorized varifocal, automatic focus lens
- Exceptional Video Quality with 2MP, 1920 x 1080 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0 Lux Night Time Operation up to 328 Feet
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Two-way Audio, Corridor View, Backlight Compensation, and 3D DNR (Digital Noise Reduction)
- Triple Video Streams; ONVIF Profile S Compliant
- Powerful Video Analytics such as Behavior, Exception, Identification and Statistical
- PoE, 12VDC & 24VAC Power Options
- Built-in Micro-SD Card Slot enables local storage up to 256GB and Automatic Network Replenishment (ANR)
- IP67 Weather Resistant Housing and Composite Video Output for Test Monitor
- Optional Mounts Available
- Supported by Uniview tec Guard Station Software and Guard Viewer Mobile Apps for iPhone and Android Devices
Specifications
Specifications
| CAMERA | |
|---|---|
| Sensor | 1/2.8", progressive scan, 2 megapixel, CMOS |
| Lens | 4.7 ~ 47mm, DC Iris, varifocal automatic focusing and motorized zoom lens |
| Angle of View (H × V) | 65° ~ 9° × 36.9° ~ 3.8° (Wide ~ Tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.001 Lux (F1.6, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 100m (328ft) IR range |
| WDR | 120dB |
| Signal / Noise Ratio | >52dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream | Main Stream: 2MP (1920 × 1080): Max. 30 fps; Sub Stream: 1920 × 1080: Max. 30 fps; Third Stream: 720 × 576: Max. 30 fps |
| HLC, BLC, 9:16 Corridor, Defog | Supported |
| OSD, Privacy, Motion & ROI | Up to 8 areas |
| NETWORK | |
|---|---|
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Video Analytics | Behavior, Exception, Identification, Statistical |
| Compatible Integration | ONVIF (Profile S & G); API |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| GENERAL | |
|---|---|
| Power | 12VDC / 24VAC ±25%, PoE (IEEE802.3 af); Max 13.7W |
| Dimensions (L × W × H) & Weight | 305.5 × 104.1 × 97.3mm (12 × 4.1 × 3.8″); 1.6kg (3.6lb) |
| Audio I/O & Compression | 1 / 1; G.711 compression |
| Alarm I/O & Serial Port | 2 / 1; 1 × RS485 |
| Video Output | 1 × BNC; Impedance 75 Ω; Amplitude 1 V [p-p] |
| Operating Temperature & Humidity | -40°C ~ +60°C (-40°F ~ 140°F); Humidity: 10%~95% RH (non-condensing) |
| Conformity Certifications | IP67, CE, FCC |
Additional Information
Additional Information
Mounting Accessories
This camera is compatible with the following mounts:
- TR-A01-IN: Waterproof Grommet
- TR-JB07-D-IN: Junction Box
- TR-UP06-B-IN: Pole Mount
- TR-UP06-C-IN: Pole Mount
What's in the Box
What’s in the Box
- Qty 1 - 2MP StarView Bullet Camera with motorized varifocal or fixed lens
- Qty 1 - Mounting Kit (screws, anchors, brackets)
- Qty 1 - Junction Box (optional, depending on model)
- Qty 1 - Ethernet Cable
- Qty 1 - Installation Guide or Manual
- Qty 1 - Protective Packaging (box or bag)
