Description

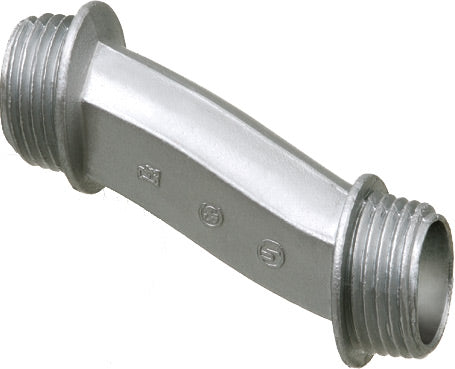

Offset Nipples
3-1/2" Offset nipple with 3/4" offset, zinc die-cast.
Features
Features
- 3-1/2" offset with 3/4" lateral displacement enables installers to bridge misaligned knockouts without bending conduit, speeding installations.
- Zinc die-cast construction provides sturdy mechanical protection and corrosion resistance for durable field performance.
- Available in a full range of trade sizes from 1/2" through 4" to match standard conduit systems and simplify inventory management.
- Clear dimensional specifications (Dim A and Dim B published per trade size) allow accurate layout planning and reduce field measurement errors.
- Malleable iron option for larger sizes offers enhanced strength where higher mechanical loads are expected.
- Threaded ends create secure, leak-resistant connections for reliable power and data conduit continuity.
- Shipped as single-unit packaging (Qty 1) for fast jobsite staging and straightforward distribution to installers.
Specifications
| Quantity | Part Number | Trade Size | Dim A | Dim B |
|---|---|---|---|---|
| 20 | 6A2 | 1/2" | 2.380 | .992 |
| 10 | 6A3 | 3/4" | 2.565 | 1.218 |
| 10 | 6A4 | 1" | 2.663 | 1.525 |
| 10 | 6A5 | 1-1/4" | 2.875 | 1.902 |
| 10 | 6A6 | 1-1/2" | 3.065 | 2.125 |
| 10 | 6A7 | 2" | 3.168 | 2.648 |
| 2 | 6A8 | 2-1/2" | 3.950 | 3.258 |
| 1 | 6A9 | 3" | 4.425 | 3.809 |
| 1 | 6A10* | 3-1/2" | 5.000 | 4.477 |
| 1 | 6A11* | 4" | 5.000 | 4.960 |
| * Malleable Iron (All others Zinc Die-Cast) | ||||
What's in the box
What's in the box
6A2
- Qty 20 - Offset Nipples - Zinc Die-Cast
6A3, 6A4, 6A5, 6A6, 6A7
- Qty 10 - Offset Nipples - Zinc Die-Cast
6A8
- Qty 2 - Offset Nipples - Zinc Die-Cast
6A9, 6A10, 6A11
- Qty 1 - Offset Nipples - Zinc Die-Cast
