300Mbps Wireless N PCI Express Adapter

by TP-Link
$14.99
SKU: TL-WN881ND
Various lead times may apply to this product. Please contact us for more details.

Description

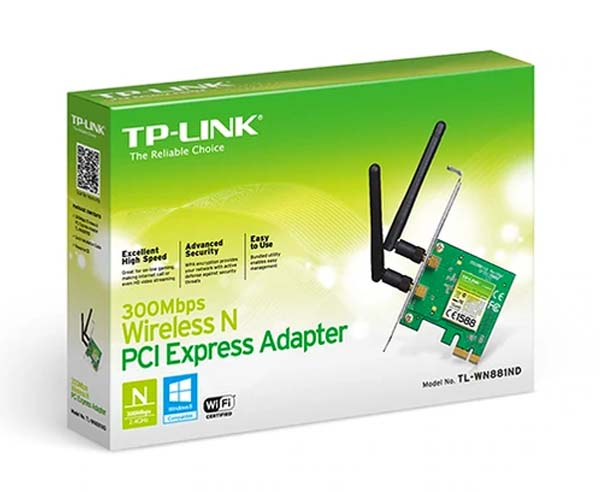

300Mbps Wireless N PCI Express Adapter

What This Product Does

Wireless N PCI Express 2.0(x1) Adapter TL-WN881ND allows you to connect a desktop computer to a wireless network and access high-speed Internet connection. Comply with IEEE 802.11n, they provide wireless speed up to 300Mbps, which is beneficial for the online gaming or even HD video streaming.

Wireless Application Network Map

Wireless N Speed & Range

MIMO (multiple input, multiple output antennas) technology, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!

CCA Technology

Clear Channel Assessment (CCA) automatically avoids channel conflicts using its clear channel selection feature and fully realizes the advantages of channel binding, greatly enhanced the wireless performance.

Features

  • Wireless N speed up to 300Mbps makes it ideal for video streaming, online gaming and Internet calls*
  • MIMO technology with stronger signal penetration strength, wider wireless coverage, providing better performance and stability
  • Easily setup a highly secured wireless link with WPS™ (Wi-Fi Protected Setup)

Specifications






HARDWARE FEATURES
Interface USB 2.0
LED Status
Dimensions (W x D x H) 1.6 x 0.7 x 0.3 in (41 x 19.5 x 8.7 mm)
Antenna Type Omni Directional
WIRELESS FEATURES
Wireless Standards IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 5GHz, 2.4GHz
Signal Rate 5GHz
11ac: Up to 433Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 5GHz:
11a 6Mbps: -94dBm
11a 54Mbps: -78dBm
11n HT20 MCS0: -94dBm
11n HT20 MCS7: -77dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -74dBm
11ac VHT80 MCS0: -89dBm
11ac VHT80 MCS9: -64dBm
2.4GHz:
11b 1Mbps: -99dBm
11b 11Mbps: -91dBm
11g 6Mbps: -94dBm
11g 54Mbps: -77dBm
11n HT20 MCS0: -95dBm
11n HT20 MCS7: -76dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -73dBm
Transmit Power  <20dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
GENERAL
 Certification FCC, RoHS
Package Contents
Wireless Adapter Archer T2U
Resource CD
Quick Installation Guide
System Requirements  Windows & MacOS
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing

Installation Information

How to install a TP-Link PCI-e wireless network adapter


What's in the box?

  • Qty 1 - 300Mbps Wireless N PCI Express Adapter
  • Qty 2 - Detachable Omni directional antenna
  • Qty 1 - Resource CD
  • Qty 1 - Installation Guide
