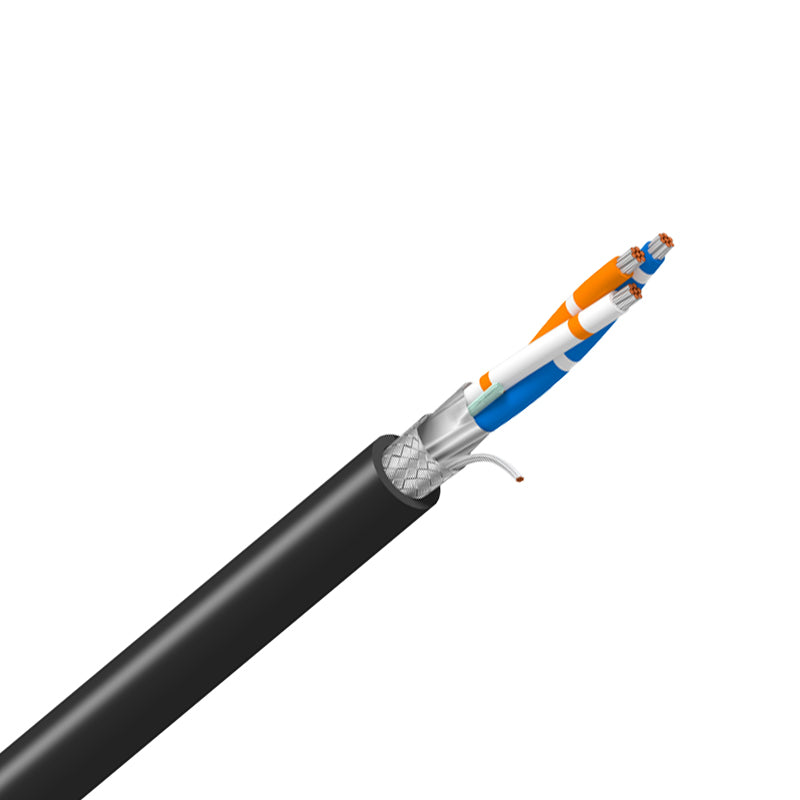

Belden 3106A RS-485 Industrial Grade Access Control Cable, Shielded, 22/3, Non-Plenum, 1000 ft, Black
Our 3106A RS485 is the communication standard for a communication bus used to create simple networks of multiple devices. RS485 allows users to connect up to 32 devices on a pair of conductors and a ground wire, with a transmission distance of up to 1200m. It is sunlight-resistant and oil-resistant.
Applications
RS485 signal cables are applied in various fields:
- Control and Monitoring Systems
- Alarm Systems
- Access Control Systems
- Industrial Automation Systems
- Factory or Process Automation
- Video, Audio, and Data Communications
- Harsh Environments
- IIoT
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.
Features
Features
-
22 AWG stranded tinned copper conductors, ideal for dependable RS‑485 communication
-
Individually shielded and overall foil and braided shield, ensuring robust protection against EMI/RFI
-
Non-plenum PVC jacket, suitable for non-air-handling spaces and general industrial installations
-
120 Ω impedance and low capacitance, promoting stable signal transmission over extended distances
-
Rated 300 V CM-rated, with flame-resistant, oil-resistant, and moisture-resistant construction
-
Rated for –20 °C to +60 °C, supplied on a 1,000 ft spool, perfect for large-scale access control projects
Specifications
Specifications
Specifications |
|
|---|---|
| Conductor Size AWG: | 22 AWG |
| Conductor Material: | Tin Copper |
| Outside Diameter: | .31 in |
| Jacket Color: | Black |
| Jacket Material: | PVC (Polyvinyl Chloride) |
What's in the Box
What's in the Box
- Qty - (1) 3106A RS-485 Industrial Grade Access Control Cable, Shielded, 22/3, Non-Plenum, 1000 ft.
