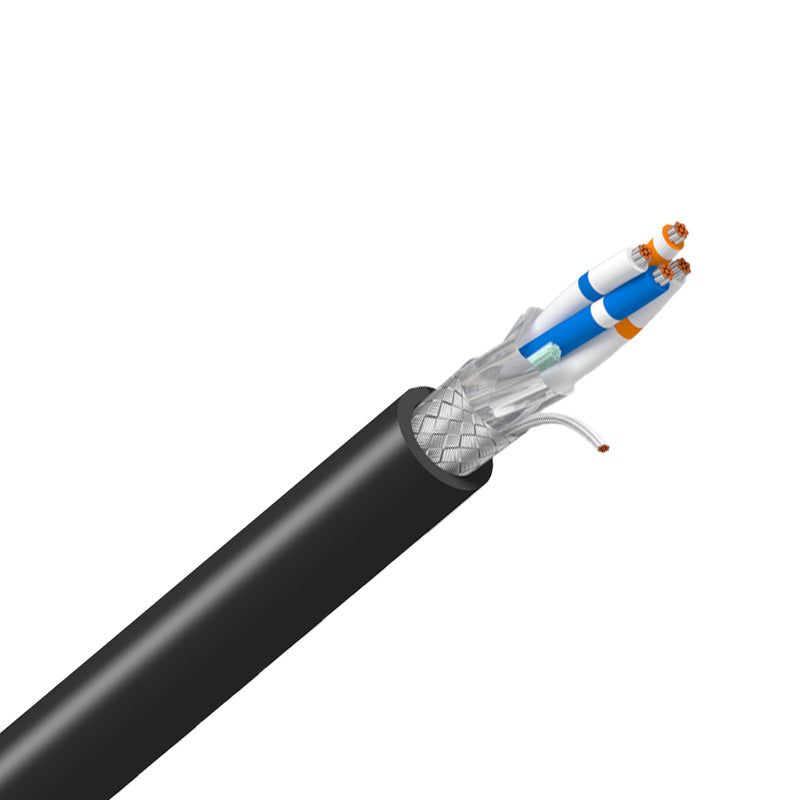

Belden 3107A RS-485 Industrial Grade Access Control Cable, PLTC/CM 2-Pair 22 AWG FHDPE SH PVC, 1000 ft
Belden RS-485 3107A, 2 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Outer Jacket, CM, PLTC, and oil-resistant.
Our 3107A RS485 is the communication standard for a communication bus used to create simple networks of multiple devices. RS485 allows users to connect up to 32 devices on a pair of conductors and a ground wire, with a transmission distance of up to 1200m.
Applications
RS485 signal cables are applied in various fields:
- Control and Monitoring Systems
- Alarm Systems
- Access Control Systems
- Industrial Automation Systems
- Factory or Process Automation
- Video, Audio, and Data Communications
- Harsh Environments
- IIoT
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.
Features
Features
-
2-pair 22 AWG stranded tinned copper conductors for reliable RS-485 data communication
-
Foamed HDPE insulation with overall foil shield ensures excellent signal integrity and noise resistance
-
Durable PVC jacket rated PLTC and CM for industrial and commercial applications
-
120 Ω impedance with low capacitance enables consistent long-distance transmission
-
Flame retardant and oil-resistant construction for use in demanding environments
-
Temperature rated from –20 °C to +60 °C for indoor and light outdoor installations
-
Supplied in a 1,000 ft spool, ideal for professional-grade access control systems
Specifications
Specifications
Specifications |
|
|---|---|
| Conductor Size AWG: | 22 AWG |
| Conductor Material: | Tin Copper |
| Outside Diameter: | .350 in |
| Jacket Color: | Black |
| Jacket Material: | PVC (Polyvinyl Chloride) |
What's in the Box
What's in the Box
- Qty - (1) 3107A RS-485 Industrial Grade Access Control Cable, PLTC/CM 2-Pair 22 AWG FHDPE SH PVC, 1000 ft.
