Belden 3108A RS-485 Industrial Grade Access Control Cable, 3 Pair 22 AWG, OS+TC Brd, PVC Jkt, CM, PLTC, 1000 ft

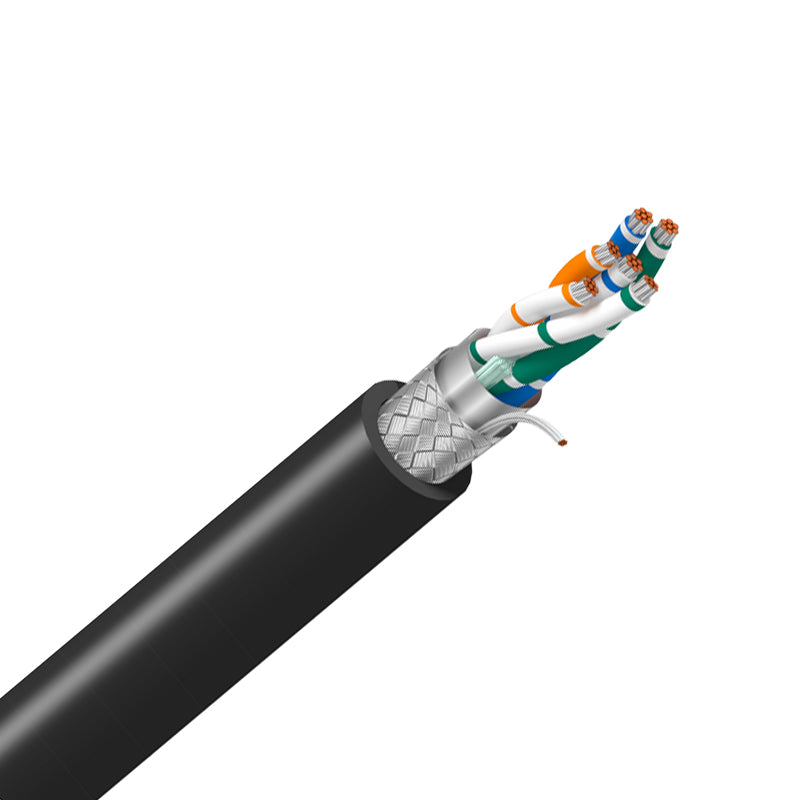

Belden RS-485 3108A, 3 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, PVC Outer Jacket, CM, PLTC, and oil-resistant.
Our 3108A RS485 is the communication standard for a communication bus used to create simple networks of multiple devices. RS485 allows users to connect up to 32 devices on a pair of conductors and a ground wire, with a transmission distance of up to 1200m.
Applications
RS485 signal cables are applied in various fields:
- Control and Monitoring Systems
- Alarm Systems
- Access Control Systems
- Industrial Automation Systems
- Factory or Process Automation
- Video, Audio, and Data Communications
- Harsh Environments
- IIoT
To avoid excessive shipping charges on 10 or more of this product please call 951-824-1571 or email support@primuscable.com to get a shipping quote.
Features
Features
-
22 AWG stranded tinned copper conductors designed for industrial RS-485 communication
-
Overall foil and tinned copper braided shield provides superior EMI and RFI protection
-
PVC outer jacket rated CM/PLTC for 300V installations in commercial and industrial environments
-
Low capacitance and 120 Ω impedance support stable, long-distance signal transmission
-
Oil, moisture, and flame resistant construction suitable for harsh environments
-
Temperature range –20 °C to +60 °C ensures reliable performance in demanding conditions
- Supplied in a 1,000 ft spool, ideal for large-scale or multiple access control installations
Specifications
Specifications
Specifications |
|
|---|---|
| Conductor Size AWG: | 22 AWG |
| Conductor Material: | Tin Copper |
| Outside Diameter: | .374 in |
| Jacket Color: | Black |
| Jacket Material: | PVC (Polyvinyl Chloride) |
What's in the Box
What's in the Box
- Qty - (1) 3108A RS-485 Industrial Grade Access Control Cable, 3 Pair 22 AWG, OS+TC Brd, PVC Jkt, CM, PLTC, 1000 ft.
