Description

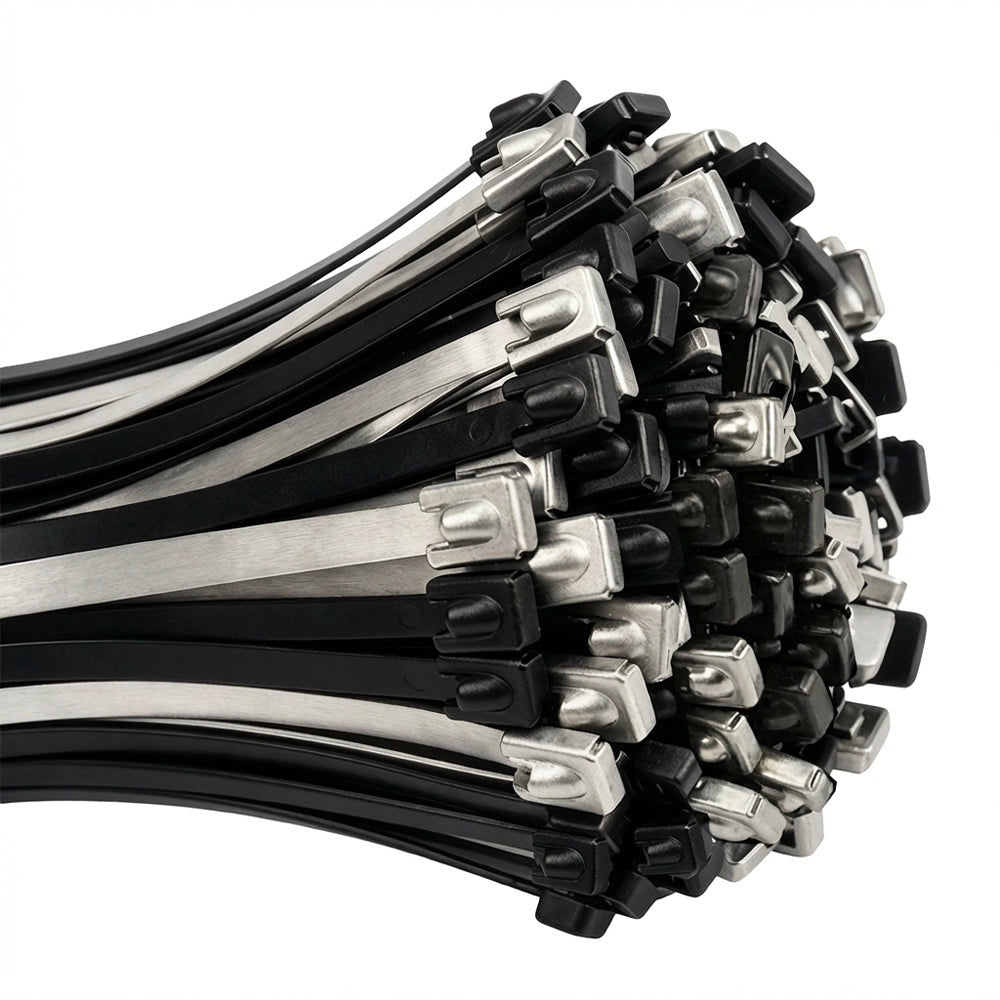

316 Stainless Steel Cable Ties
This diverse 316 Stainless Steel product line provides unique engineering solutions including sizes from 6" up to 27" lengths and tensile strengths from 150 up to 300 LB-F. All options are available in uncoated and coated for dissimilar metal applications, such as aluminum, galvanized steel, carbon steel, brass, bronze, copper, etc. 316 Stainless Steel has an increased nickel content and molybdenum vs. 304, providing increase corrosion and pitting resistance against chlorides (salts) and acids in marine, hydraulic, chemical, food and beverage, and many other harsh environments, including high-temperature applications.
Features
Features
- Ideal for extreme conditions and harsh environments
- Withstanding corrosive and salt-water, chemicals and radiation exposure
- Ball locking mechanism provides ease of insertion
- Polyester coating provides a barrier to avoid corrosion between dissimilar metals
- Indoor and outdoor use
Specifications
| TECHNICAL SPECIFICATIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|

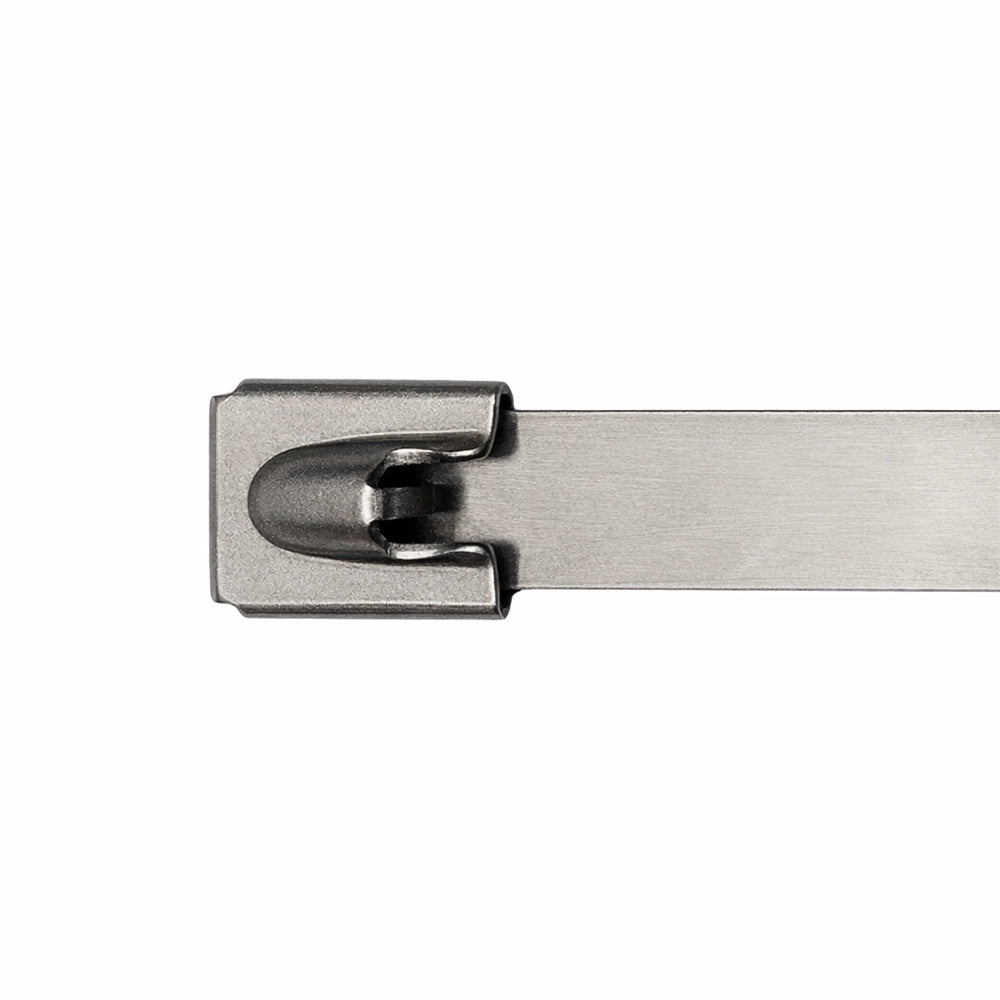

| UNCOATED STAINLESS STEEL CABLE TIES | |||||||||
| MATERIAL | 316 STAINLESS STEEL | ||||||||
| LENGTH (INCH/MM) | 5.90 / 150.0 | 7.87 / 200.0 | 14.17 / 360.0 | 20.47 / 520.0 | 26.77 / 680.0 | 7.87 / 200.0 | 14.17 / 360.0 | 20.47 / 520.0 | 26.77 / 680.0 |
| WIDTH (INCH/MM) | 0.180 / 4.6 | 0.180 / 4.6 | 0.180 / 4.6 | 0.180 / 4.6 | 0.180 / 4.6 | 0.310 / 7.9 | 0.310 / 7.9 | 0.310 / 7.9 | 0.310 / 7.9 |
| THICKNESS | 0.010" / 0.26MM | ||||||||
| TIE TENSILE | 150 LB-F | 150 LB-F | 150 LB-F | 150 LB-F | 150 LB-F | 300 LB-F | 300 LB-F | 300 LB-F | 300 LB-F |
| DIAMETER (INCH/MM) | 1.53 / 39.0 | 1.96 / 50.0 | 3.93 / 100.0 | 5.90 / 150.0 | 7.87 / 200.0 | 1.96 / 50.0 | 3.93 / 100.0 | 5.90 / 150.0 | 7.87 / 200.0 |
| UL-CSA / MIL-SPEC | UL | ||||||||
| OPERATING TEMP. ℉ (MIN./MAX.) | -76 TO 572 | ||||||||

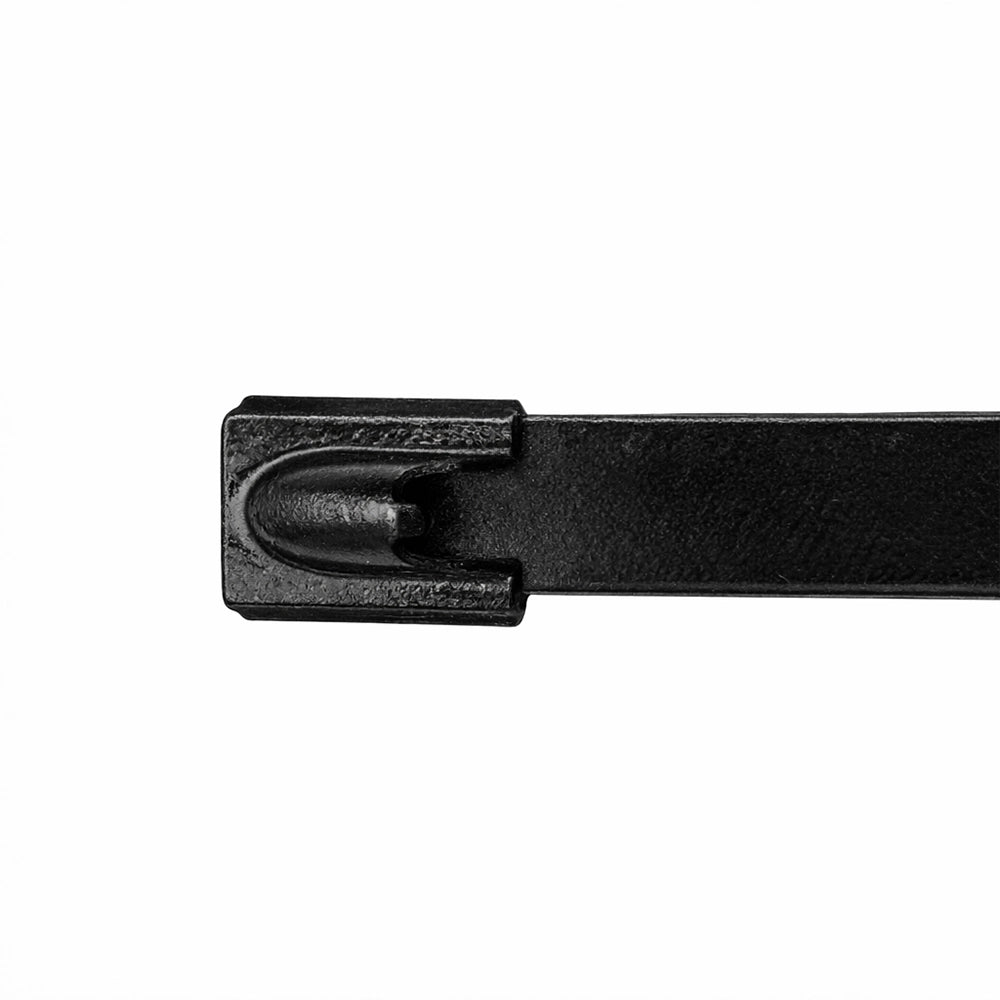

| COATED STAINLESS STEEL CABLE TIES | ||||||||
|---|---|---|---|---|---|---|---|---|
| MATERIAL | 316 STAINLESS STEEL | |||||||
| COATING | BLACK POLYESTER | |||||||
| LENGTH (INCH/MM) | 7.87 / 200.0 | 14.17 / 360.0 | 20.47 / 520.0 | 26.77 / 680.0 | 7.87 / 200.0 | 14.17 / 360.0 | 20.47 / 520.0 | 26.77 / 680.0 |
| WIDTH (INCH/MM) | 0.180 / 4.6 | 0.180 / 4.6 | 0.180 / 4.6 | 0.180 / 4.6 | 0.310 / 7.9 | 0.310 / 7.9 | 0.310 / 7.9 | 0.310 / 7.9 |
| THICKNESS | 0.013"/0.33MM | |||||||
| TIE TENSILE | 150 LB-F | 150 LB-F | 150 LB-F | 150 LB-F | 300 LB-F | 300 LB-F | 300 LB-F | 300 LB-F |
| DIAMETER (INCH/MM) | 1.96 / 50.0 | 3.93 / 100.0 | 5.90 / 150.0 | 7.87 / 200.0 | 1.96 / 50.0 | 3.93 / 100.0 | 5.90 / 150.0 | 7.87 / 200.0 |
| UL-CSA / MIL-SPEC | UL | |||||||
| OPERATING TEMP. ℉ (MIN./MAX.) | -76 TO 302 | |||||||
What's in the Box
What’s in the Box
- Qty 1 - 316 Stainless Steel Cable Ties
