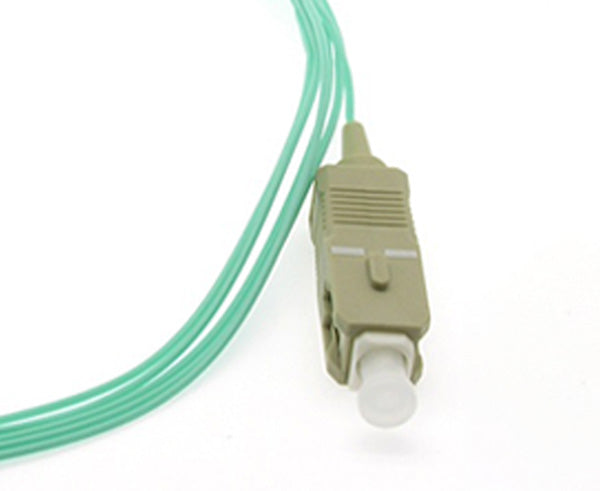

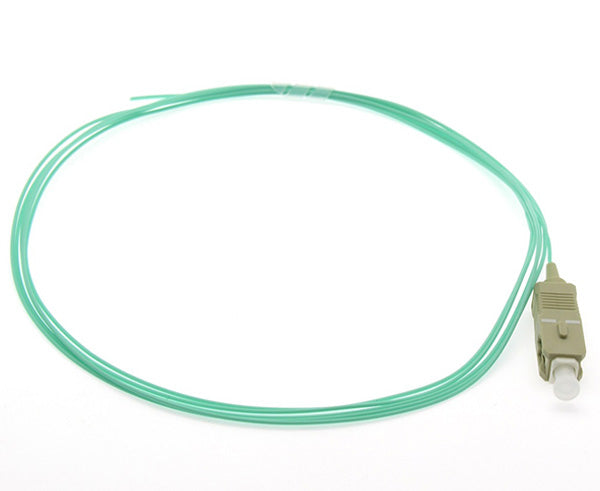

3m SC/UPC OM4 Multimode Pigtail Aqua
Fiber pigtails are ideal for fusion and splicing, our fiber pigtails are quality-tested to meet fiber industry standards and the most stringent performance specifications.
Features
Features
- Low Insertion Loss
- Low Back Reflection Loss
- Ideal with Telecommunication Networks
-
Meets ISO9001 and RoHS
Specifications
Specifications
- Connector Type: SC Multimode
- Polish Type: UPC
- Return Loss: 55dB
- Insertion Loss: 0.30dB
- Length: 3m
- OD: 0.9mm
- Ferrule: Ceramic Zirconia
- Operation Temperature: -20°C to 70°C
- Jacket Type: OFNR/LSZH
- Jacket Color: Aqua
What's in the Box
What's in the Box
- Qty 1 – 3 m SC/UPC OM4 multimode fiber pigtail (900 µm buffered, aqua jacket)
- Qty 1 – Dust cap for SC ferrule
- Qty 1 – Heat‑shrink splice protection sleeve (for fusion splicing)
- Qty 1 – Anti‑static polybag or pouch with product label
- Qty 1 – Instruction leaflet / brief datasheet
- Qty 1 – 3M warranty and compliance sheet
