Description
4" Deep Tray

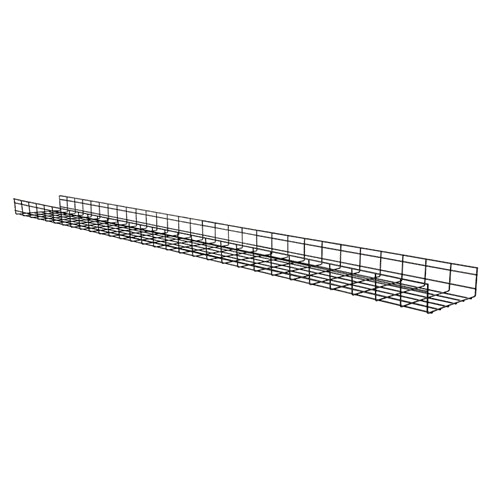

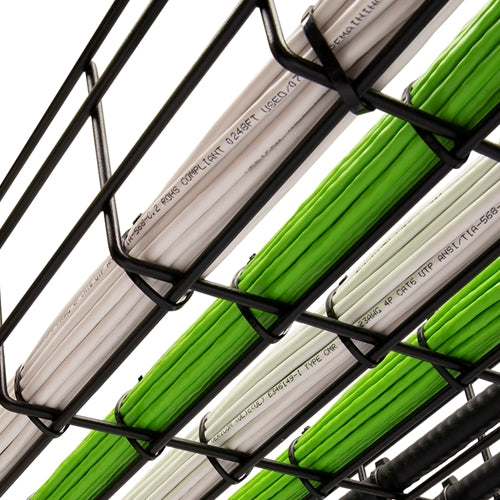

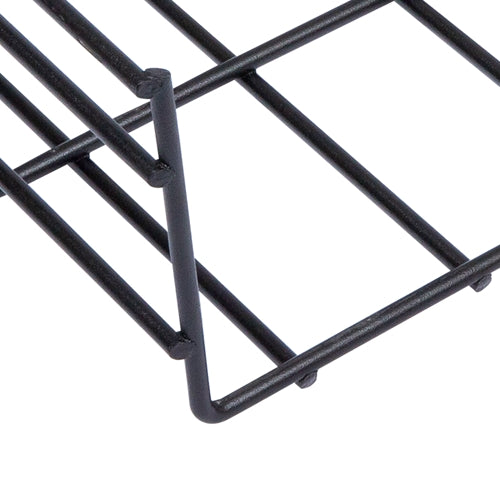

This series wire basket trays provide a durable yet adaptable pathway for routing cables along a wall, floor, or ceiling in a variety of applications, from short runs in a data closet to high-density data center installations. Each tray is constructed of welded high-strength carbon steel wire with stringers spaced every 2” and cross bars every 4”, providing a rigid structure that can handle large cable bundles. And
with a black powder coated finish, our wire basket trays will protect both cabling and installers from cuts, scratches, and frays. Each tray section is 118” long but can be cut to any required length.
Features
Features
- Available in 2”, 4”, and 6” depths
- 5mm diameter carbon steel wire
- Field-adjustable to fit any installation environment
- Conforms to IEC 61537 international standards for cable tray systems
Specifications
| TECHNICAL SPECIFICATIONS | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Material | High-strength carbon wire (0.197” [5mm] dia.) | ||||||||
| Finish | Black powder coat | ||||||||
| Compliance & Standards(L x H) | IEC 61537 | ||||||||
| Dimensions (L x H) | 118.1” x 4.33” | ||||||||
| ITEM NUMBER | WIDTH | WT PER PC | LOAD(lbs/ft) | CABLE FILL** | SPLICE QTY | ||||
| in | mm | lbs | kgs | 5 ft span | 6.5 ft span | CAT6*** | CAT6A*** | ||
| VBT-ST10100-BP | 4 | 100 | 11.35 | 5.15 | 22.85 | 18.82 | 197 | 142 | 3 |
| VBT-ST10150-BP | 6 | 150 | 12.90 | 5.85 | 45.69 | 34.94 | 295 | 212 | 3 |
| VBT-ST10200-BP | 8 | 200 | 14.44 | 6.55 | 68.54 | 47.71 | 393 | 283 | 3 |
| VBT-ST10300-BP | 12 | 300 | 17.53 | 7.95 | 68.54 | 51.07 | 590 | 425 | 4 |
| VBT-ST10400-BP | 16 | 400 | 20.61 | 9.35 | 83.32 | 56.45 | 787 | 566 | 4 |
| VBT-ST10450-BP | 18 | 450 | 22.16 | 10.05 | 83.32 | 59.14 | 885 | 637 | 4 |
| VBT-ST10500-BP | 20 | 500 | 23.70 | 10.75 | 83.32 | 61.82 | 983 | 708 | 4 |
| VBT-ST10600-BP | 24 | 600 | 26.79 | 12.15 | 86.01 | 53.76 | 1180 | 849 | 4 |
| *Load calculations based on IEC 61537-2007 standards for cable tray systems testing. | |||||||||
| **Cable Fill capacity based on NEC allowable fill of 50%. | |||||||||
| ***CAT6 rate based on 0.224” diameter; CAT6A rate based on 0.264” diameter. Actual diameters vary by cable manufacturer. | |||||||||
Additional Information

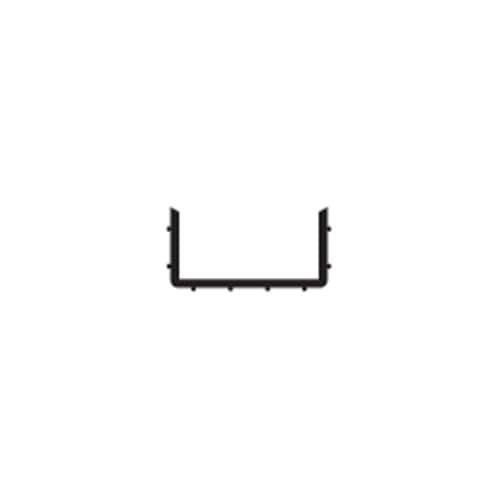

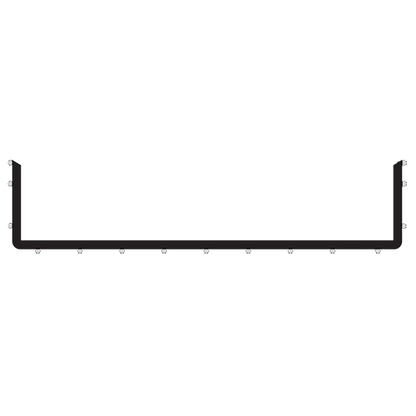

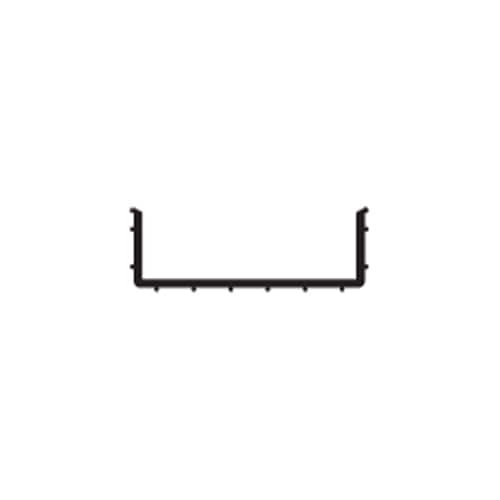

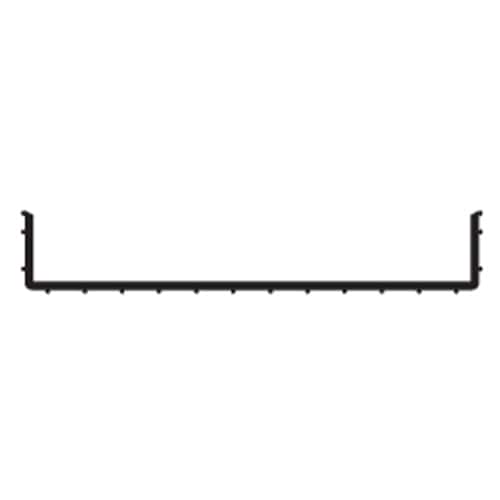

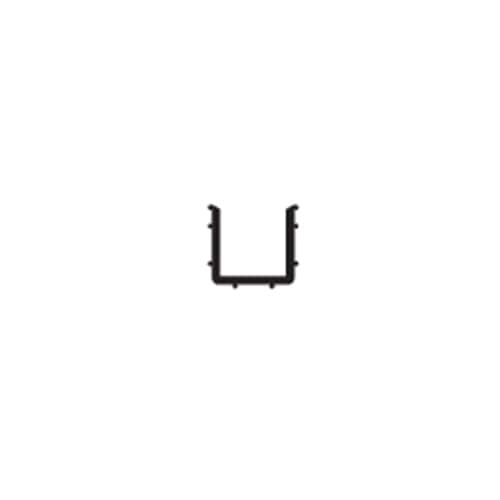

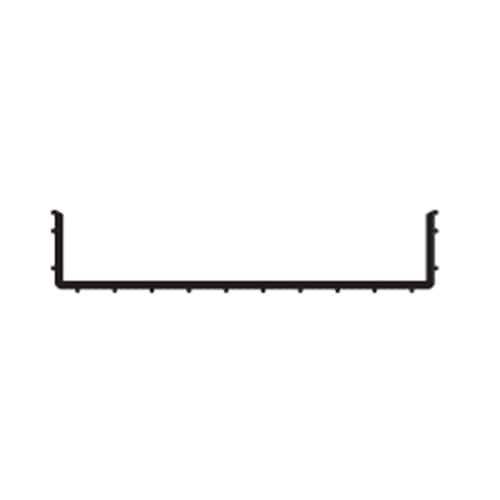

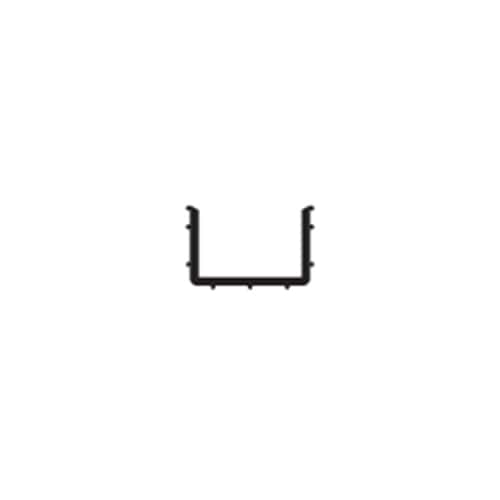

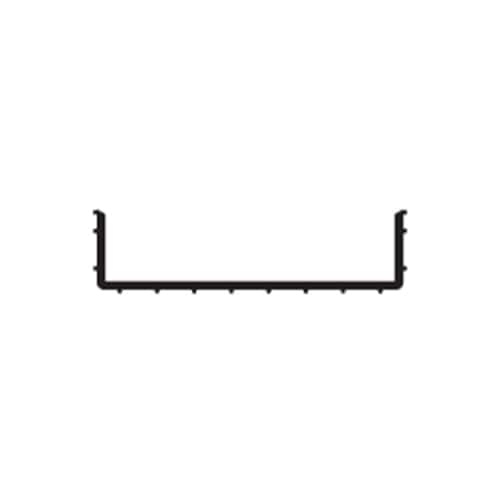

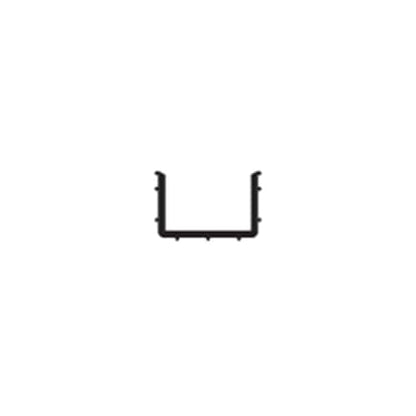

| Technical Illustration |
|---|
 |
What’s In The Box
What’s In The Box
- Qty 1 - Wire Basket Tray
