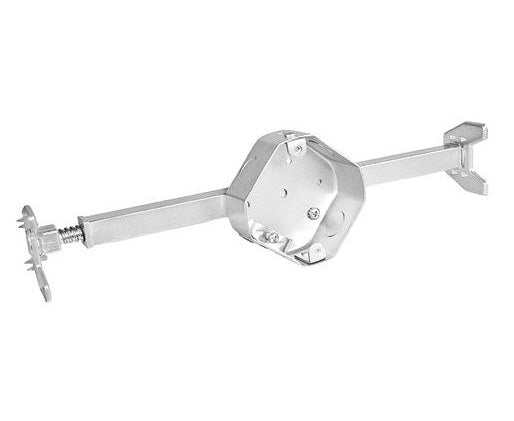

4 in. Octagon Fan & Fixture Support Box, 2-1/8 in. Deep, Old Work Bar Hanger

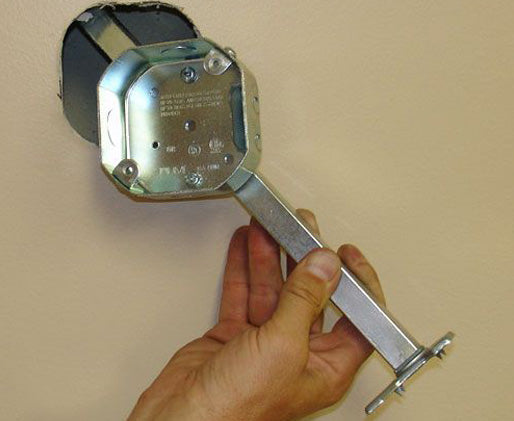

2-1/8 in deep, 4 in octagon boxes with old work fan bar hangers, and (4) 1/2 in side knockouts are used to install ceiling fans, chandeliers, and other similar hanging fixtures. The old work hangers twist out and penetrate ceiling joists for a secure installation of ceiling fans and chandeliers in existing hollow ceilings. Primus Cables' octagon boxes are made with a versatile combination head screw that can securely fasten fixtures or devices to electrical junction boxes using a slotted, Phillips, or Robertson head screwdriver. They also come with labor saving brackets and mounting tabs that align with most lighting fixtures.
Features
Features
- Heavy-Duty Support: Specifically designed to safely support ceiling fans and heavy light fixtures. It has a high load capacity, supporting up to 70 lbs for ceiling fans and 110 lbs for fixtures on 16" on-center joists.
- Retrofit Design: An "old work" box designed for easy installation in existing ceilings and walls during renovation projects without needing access to the framing from above.
- Durable Construction: Made from galvanized steel, providing strength, durability, and corrosion resistance for long-lasting performance.
- Ample Wiring Space: With a depth of 2-1/8 inches, it offers generous internal capacity to accommodate wiring connections for fans and fixtures.
- Multiple Knockouts: Includes four 1/2-inch side knockouts for flexible conduit and cable entries.
- Integrated Bar Hanger: Features an adjustable bar hanger that expands to fit between joists spaced 16 inches to 24 inches apart, providing a secure mounting point.
- Complete Installation Kit: Comes with necessary mounting hardware, a NM (non-metallic) cable fitting, and a dust cover for a streamlined installation process.
- Versatile Mounting: The labor-saving brackets and mounting tabs are designed to align with most lighting fixtures for easier attachment.
- Compliance Certified: Meets relevant electrical safety standards, including NEC 314.27, and is UL listed for assured safety and reliability.
- Packaging: Sold as a single unit, making it ideal for individual projects or replacements.
Specifications
Specifications
What's In The Box
What's In the Box
- Qty 1 - 4 in. Octagon Fan & Fixture Support Box, 2-1/8 in. Deep, Old Work Bar Hanger
