DAC
Description
Description

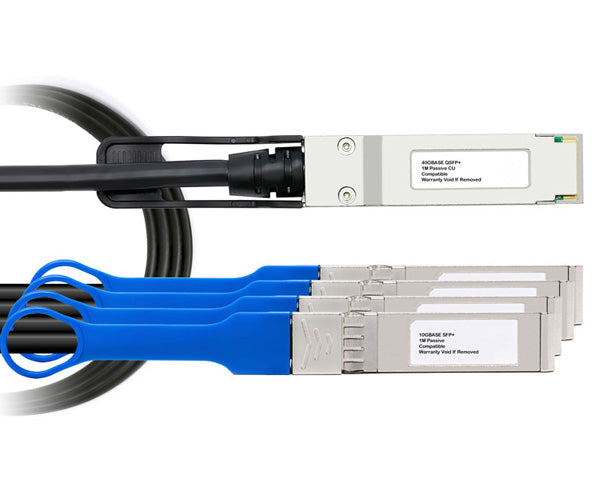

SFP+ 10GbE Copper Twinax Direct Attach Cable
The direct attach copper cables support 4 lanes of 10Gbs (40Gbs composite). This product is specifically designed to be fully compatible and functional with its brand's own designated switching devices. The passive design has no signal amplification. The passive QSFP+ to 4x SFP cable is a low cost alternative for short reach application.
Features
Features
- 4 independent duplex 10Gbs channels
- Supports 2.5Gbs and 5Gbs data rates
- AC-coupled inputs and outputs
- 100 Ohm differential impedance
- Metal housing for superior EMI performance
- Single power supply 3.3V
- Operating Temperature Range: 0°C to +70°C
Compliance
- QSFP+ MSA
- SFP+ MSA
- RoHS Compliant
Applications
- 10Gbase Ethernet
- Serial Data Transmission
- Networking, Storage, Fiber Channel
Specifications
Specifications
| Connector Type | QSFP+ to 4x SFP+ |
| Max Data Rate | 40GB |
| Wire AWG | 30 AWG Twinax |
| Cable Type | Passive |
| Power Supply | 3.3v |
| Operational Temperature Range | 0°C to +70°C |
What's in the Box
What's in the Box
- Qty 1 - Passive SFP+ 10 GbE Copper Twinax Direct‑Attach Cable (with SFP+ latching plugs)
