5” - 15" 45° Up Elbow - Fiber Cable Tray Channel

These products are all Made to Order

Which means they are non-cancelable and non-refundable

Description

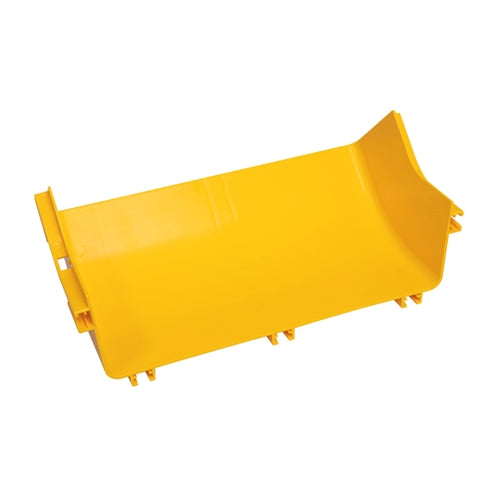

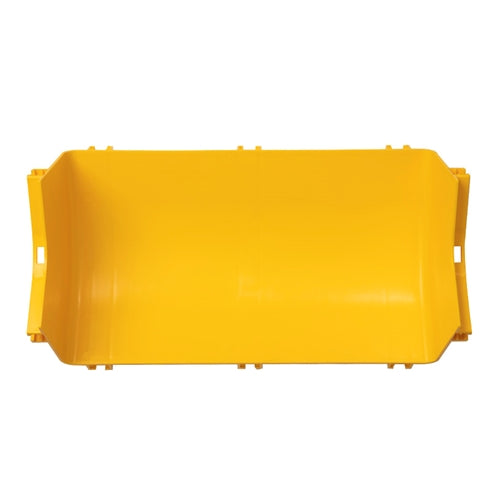

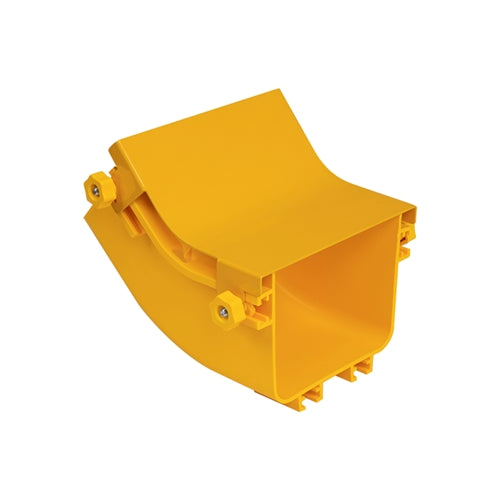

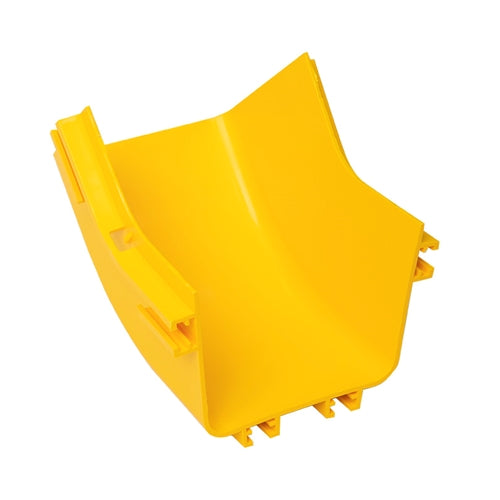

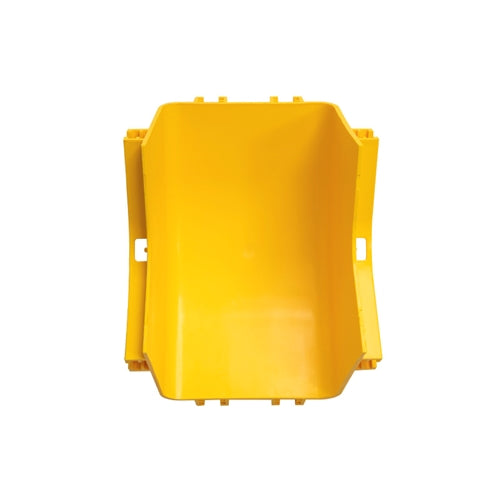

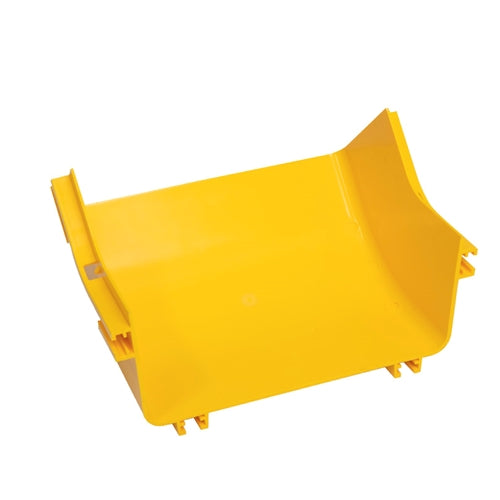

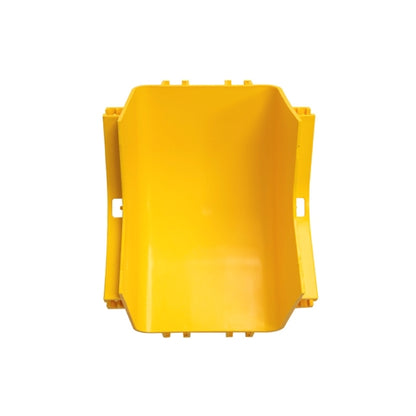

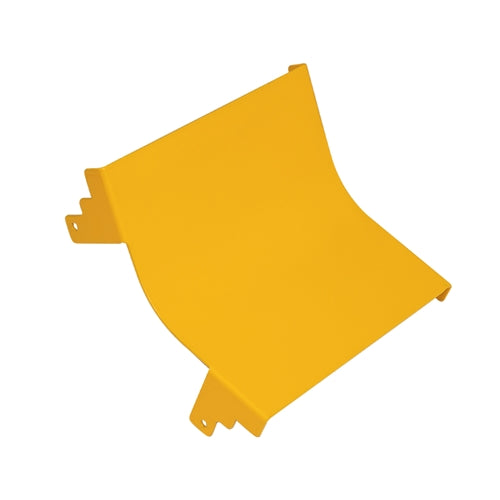

45° Up Elbow - Fiber Cable Tray Channel

Connects to a straight channel section to create a 45 degree upward angle from a horizontal run. Use with appropriate 45 degree down elbow to change the elevation of a fiber routing system.

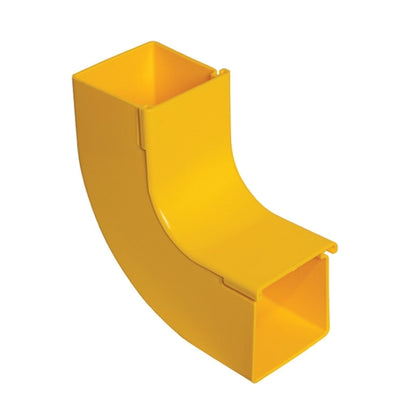

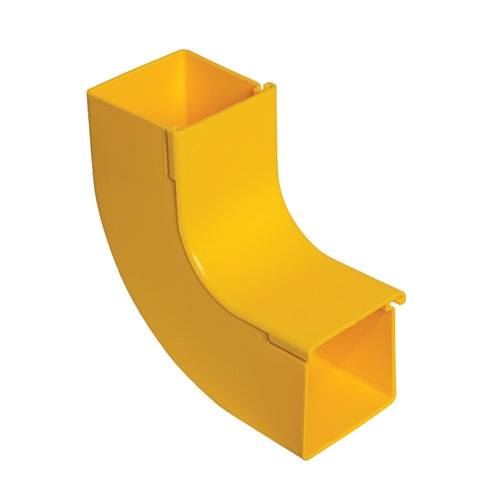

90° Down Elbow With Cover - Fiber Cable Tray Channel

Connects to a 2.5” straight channel section to create a 90-degree upward bend from a horizontal run. Completely tool-free installation.

Features

Maintains minimum cable bend radius requirements
Tool-free installation
Lightweight, flame-retardant PVC (V-0 rated)
Requires couplers for connection (sold separately)
Snap-on cover available (sold separately)

Specifications

Document	Description	Download
Spec Sheet	Product overview and specifications
2.5" Tech Drawing	Technical drawing for 2.5" 90° Up Elbow With Cover model
5" Tech Drawing	Technical drawing for 5" 45° Up Elbow model
10" Tech Drawing	Technical drawing for 10" 45° Up Elbow model
15" Tech Drawing	Technical drawing for 15" 45° Up Elbow model
