This product is intended to be purchased by installers only
Description
4K, 180° Panoramic Lens, LightHunter, Turret, WDR, IR, IP67, IK10, 12V/PoE

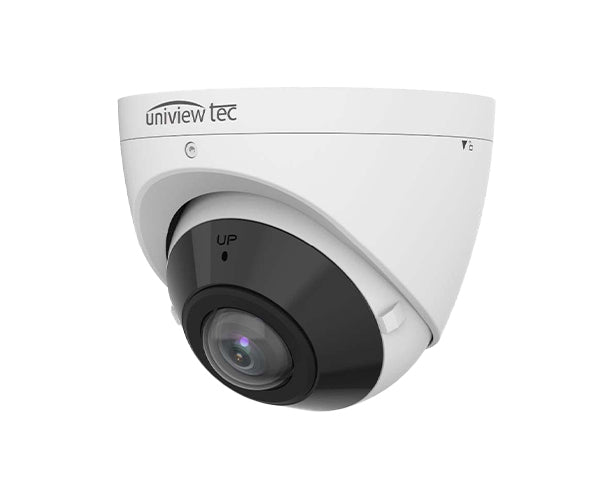

Experience top-tier security with the Uniview 4K 180° Panoramic Lens Intelligent Turret camera. Fully NDAA-compliant, it delivers stunning 4K resolution and super-efficient H.265 compression to save bandwidth and storage. With a 180° wide-angle lens, powerful IR for night vision up to 66 feet, and smart features like cross-line detection and intrusion prevention, it’s perfect for reducing false alarms. Built to withstand tough conditions with IP67 and IK10 ratings, this camera also supports local storage up to 512GB and works seamlessly with Uniview’s Guard Station software and mobile apps. Whether it’s day or night, this camera has you covered with TRUE WDR and day/night functionality.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 4K (8MP), 3840 x 2160 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful, Smart IR LED Lights for 0Lux Night Time Operation up to 66 Feet
- Panoramic 1.68mm, 180° wide angle lens; ONVIF Profile S Compliant
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Triple Video Streams; Backlight Compensation, 3D DNR, Built-in Microphone
- Built-in Micro-SD Card Slot enables local storage up to 512GB
- Intelligent perimeter protection such as cross line and intrusion, with smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- 3-Way Axis, IP67 Weather Resistant and IK10 Vandal Resistant Housing; PoE & 12VDC Power Options
- Supported by Uniview Tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device
Specifications
| CAMERA | |
| Sensor | 1/2.7'' CMOS |
| Min Illumination | Color 0.01 lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1~1/100000s |
| Adjustment Angle | Pan 0°~360°, Tilt 0°~75°, Rotate 0°~360° |
| WDR | 120dB |
| S/N | >52dB |
| LENS | |
| Focal Length | 1.68mm |
| Aperture | F2.0 |
| Field of View | H 180°, V 100°, O 180° |
| DORI DISTANCE | |
| Detect | 37.8m (124ft) |
| Observe | 15.1m (49.6ft) |
| Recognize | 7.6m (24.8ft) |
| Identify | 3.8m (12.4ft) |
| ILLUMINATOR | |
| IR Range | Up to 20m (66ft) |
| IR Control | Auto/Manual |
| Wavelength | 850nm |
| VIDEO | |
| Compression | Ultra 265, H.265, H.264, MJPEG |
| Max Resolution | 8MP (3840x2160), 30fps |
| Bitrate | 128 Kbps~16 Mbps |
| Triple Streams | Yes |
| OSD | Up to 10 |
| IMAGE | |
| Features | Auto Scene Match, 2D/3D DNR, Smart Illumination, Defog |
| Flip | Normal, Vertical, Horizontal, 180° |
| INTELLIGENT ANALYTICS | |
| Smart Intrusion Prevention | Cross Line, Intrusion, Area Entry/Exit |
| EVENTS | |
| Detection | Motion, Tampering, Audio, Ultra Motion |
| Functions | Watermark, IP Filtering, Alarms |
| AUDIO | |
| Compression | G.711U, G.711A |
| Bitrate | 64 Kbps |
| Built-in Microphone | Yes |
| STORAGE | |
| Edge Storage | MicroSD, up to 512GB |
| Network Storage | ANR |
| NETWORK | |
| Protocols | IPv4/IPv6, TCP/UDP, HTTP/HTTPS, ONVIF |
| Security | Password Protection, HTTPS, TLS 1.2 |
| Users | Up to 32, 3 levels (Admin, Common, Operator) |
| CONFORMITY | |
| Certifications | CE, FCC, RoHS |
| Protection | IP67, IK10 |
| GENERAL | |
| Power | DC 12V ±25%, PoE |
| Power Consumption | Max 5.5W |
| Dimensions | Φ111 x 93mm (4.4 x 3.7") |
| Working Environment | -30°C~60°C (-22°F~140°F) |
Additional Information
Mounting Accessories
This camera is compatible with the following mounts:
- TR-JB03-G-IN: Junction Box
- TR-A01-IN: Waterproof Plastic Grommet
- TR-WM03-D-IN: Wall Mount
- TR-JB07-D-IN: Junction Box
- TR-UP06-IN: Pole Mount
- TR-UM06-E-IN: Wedge Tilt Mount
- TR-SE24-IN: 8.66" Pendant Mount Pipe
- TR-SE24-A-IN: 20" Pendant Mount Pipe
- TR-CM24-IN: 8.80" Pendant Mount Pipe
What's in the Box
What's in the Box
- Qty 1 — Uniview 4K 180° Panoramic Intelligent Turret Camera
