This product is intended to be purchased by installers only
Description
Description

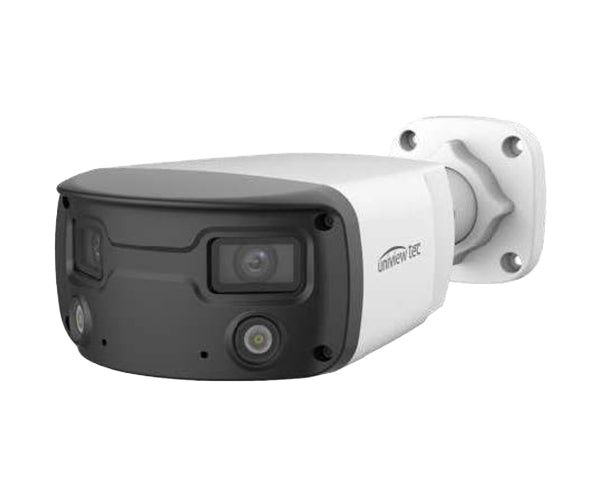

4K, COLOR HUNTER, WIDE ANGLE 180° VIEW BULLET
The Uniview Tec 4K Color Hunter Wide Angle 180° Bullet Camera delivers crystal-clear 4K (8MP) video with a 180° panoramic view, ensuring no blind spots. Equipped with Color Hunter technology and White LED illumination, it captures full-color footage 24/7, even in total darkness. Its advanced AI-powered intrusion prevention reduces false alarms by focusing on people and vehicles, while built-in two-way audio adds an extra layer of security. With H.265 compression, PoE support, and an IP67 weatherproof rating, this camera is built for efficiency and durability. Seamlessly integrate it with Uniview Tec’s Guard Station Software and Guard Viewer Mobile App for remote access.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 4K (8MP), 5120 x 1440 Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Color Hunter technology with White LED’s ensures 24-hour full-color images up to 98 feet
- Dual 4mm fixed lens splicing technology provides 180° wide angle viewing
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Dual Video Streams; Backlight Compensation, 3D DNR, ONVIF Profile S Compliant
- Two-way Audio with Built-in Speaker and Dual Microphones
- Built-in Micro-SD Card Slot enables local storage up to 512GB
- Intelligent Intrusion Prevention Analytics that significantly reduce false alarms, accurately focusing on humans and motor vehicles; also features People Flow & Crowd Density Monitoring
- 3-Way Axis, IP67 Weather Resistant Housing; PoE & 12VDC Power Options
- Supported by Uniview Tec Guard Station Software and Guard Viewer Mobile App’s for iPhone and Android Device
Specifications
Specifications
| CAMERA SPECIFICATIONS | |
| Sensor | 1/2.7'' CMOS |
| Minimum Illumination | Color: 0.0005 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle (3-way Axis) | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| WDR | 130dB |
| S/N | >52dB |
| Lens | 2 x 4mm fixed |
| Field of View (H/V/O) | 180° ±10° / 47.41° / 180.13° ±10° |
| DORI Distance | Detect: 90m (259.3ft), Observe: 36m (118.1ft), Recognize: 18m (59.1ft), Identify: 9m (29.5ft) |
| ILLUMINATOR | |
| Warm Light Illumination Distance | Up to 30m (98ft) |
| VIDEO & COMPRESSION | |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 8MP (5120 x 1440), Max 20fps; Sub Stream: 2560 x 720, Max 20fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Supported |
| Video Stream | Dual streams |
| WHITE BALANCE & NOISE REDUCTION | |
| White Balance | Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D / 3D DNR |
| SMART FEATURES | |
| Smart Illumination | Supported |
| Auto Scene Match (ASM) | Supported (Only WDR) |
| Intelligent Analytics | Smart intrusion prevention (Cross Line, Intrusion, Enter Area, Leave Area), Color Retrieval, People Flow, Crowd Density Monitoring |
| AUDIO & STORAGE | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Supported |
| Storage | Micro SD, up to 512GB, ANR |
| NETWORK & SECURITY | |
| Protocols | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Security | Password protection, HTTPS encryption, TLS 1.2, ONVIF authentication |
| PHYSICAL & POWER | |
| Built-in Microphone | 2 x Built-in microphones |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Power | DC 12V ±25%, PoE (IEEE 802.3af), Max 13W |
| Dimensions | 273 × 130 × 76mm (10.7 × 5.1 × 3.0”) |
| Weight | 0.96kg (2.12lb) |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Supported |
Additional Information
Additional Information
Mounting Accessories
This camera is compatible with the following mounts:
What's in the Box
What's in the Box
- Qty 1 – 4K Uniview ColorHunter 180° Wide-Angle Bullet Camera
