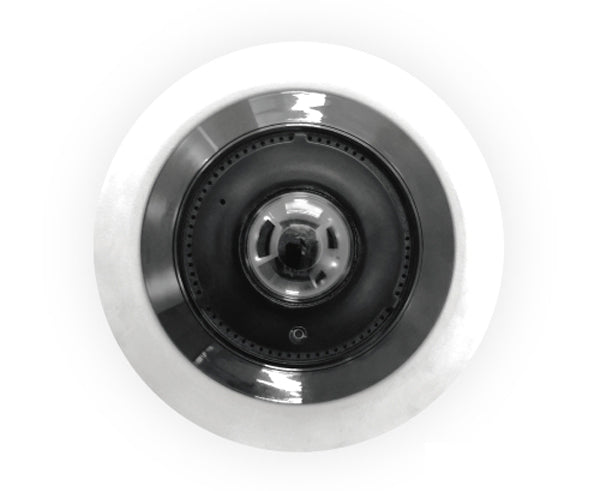

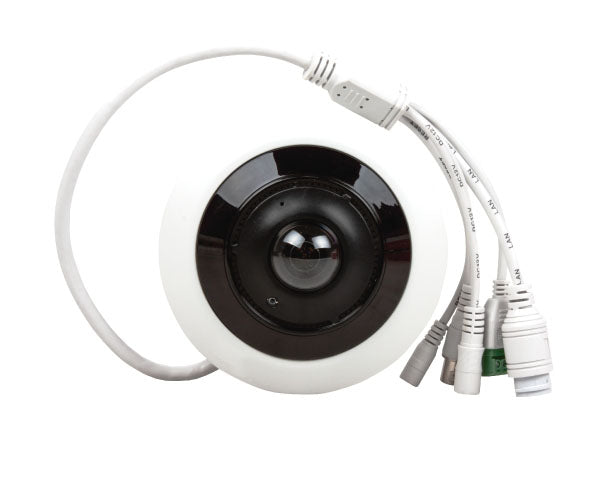

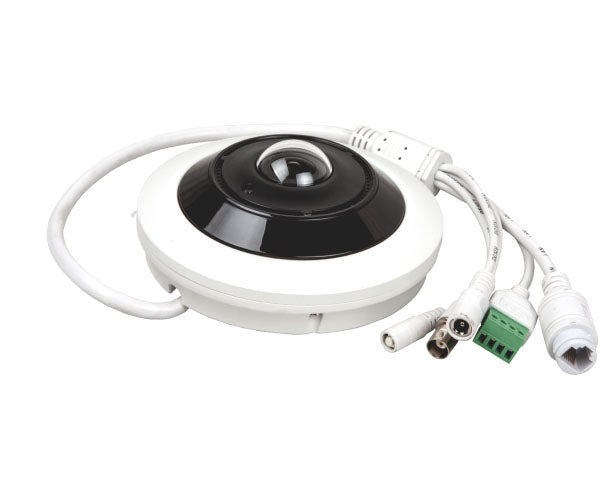

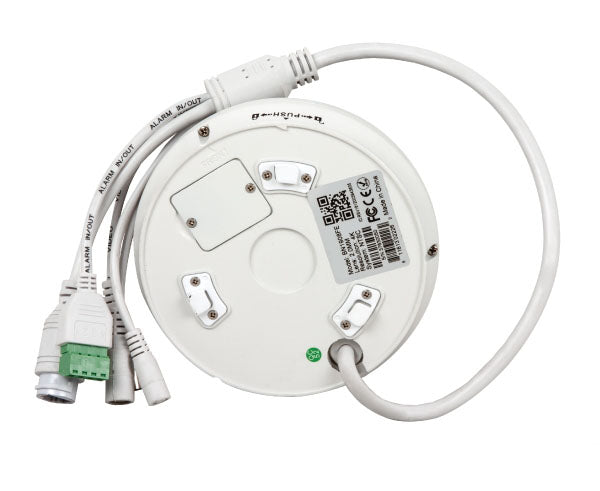

9MP IP Security Camera, with Up to 8 Views on One Camera
The 9MP IP Security Camera WDR Fisheye Security Camera delivers high definition 3000 x 3000 resolution utilizing a 1/1.7" progressive image sensor CMOS. With next generation compression technology, this camera uses H.265 standard with half the bitrate of other cameras. It offers 8 views on one camera, VR mode and Cylinder view. It has a 180º Panoramic and Double Panoramic Views with IR for night vision. This security camera is easy to use with its plug and play as well as a built-in POE.
Features
Features
- 9.0 Megapixel HD Image Sensor
- H.265/H.264 Video Compression
- 3000(H) X 3000(V) Resolution
- IR Cut Filter With Auto Switch
- IR up to 16FT Range
- 3pc SMD LEDs
- Up to 8 Views
- 360° Fisheye View, 180° Panoramic and Double Panoramic Modes
- Light Sensitivity 0.01 Lux B/W ( 0 Lux IR LED On)
- 1/1.7" Progressive CMOS
Specifications
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| RESOLUTION | 3000(H)×3000(V) |
| IMAGE SENSOR | 1/1.7" Progressive CMOS |
| MIN. ILLUMINATION | Color 0.01lux @ F1.2(AGC ON); B/W 0 lux @ IR ON |
| SHUTTER | 1/5~1/20000s |
| LENS | 2.0mm, Angle of view: 360° |
| F NO. | F 2.4 ±5% |
| DAY & NIGHT | IR cut filter with auto switch |
| WDR | Digital WDR |
| VIDEO COMPRESSION | H.265 / H.264 |
| VIDEO BIT RATE | 8Kbps ~ 16Mbps |
| TRIPLE STREAM | Yes |
| FRAME RATE | 9MP (3000x3000), 2560x2560, 2160x2160, 1520x1520, 1080x1080, 720x720 |
| SUBSTREAM | 2MP (1080x1080), 720x720, 480x180, 240x240 |
| MOBILESTREAM | 480x480, 240x240 |
| IMAGE SETTINGS | Rotate mode, Saturation, Brightness, Contrast, Hue, Sharpness adjustable |
| BLC | Support |
| ROI | Support |
| VIDEO ANALYTICS | NA |
| PROTOCOLS | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP, ONVIF (Ver 2.6) |
| SYSTEM COMPATIBILITY | RJ45 10M / 100M Ethernet interface x1 |
| INTERFACE | RJ45 10M / 100M Ethernet interface x1 |
| LED | 3pcs (SMD) |
| IR RANGE | Up to 5m |
| SD STORAGE | Yes |
| ALARM TRIGGER | Yes |
| AUDIO | Yes |
| BUILT-IN MICROPHONE | Yes |
| RESET BUTTON | Yes |
| POE | Yes |
| WATER PROOF | IP 66 |
| POWER SUPPLY | DC 12V / POE |
| CONSUMPTION | ≤7W |
| DIMENSION | Ø120*55mm |
| WEIGHT | Appr 400g |
| STORAGE TEMPERATURE | -30~+60°C |
| OPERATING TEMPERATURE | -30~+55°C |
Additional Information
Additional Information
WARNING:
- Do Not Point Camera Directly into the sun
- Do Not cut video or power wire
- Observe Correct Voltage and Polarity
FAILURE TO OBSERVE WARNINGS MAY VOID WARRANTY
What's In The Box
What's In The Box
- Qty 1 - 9 Megapixel H.265 Fisheye Security Camera, 2mm IR Lens
