Description
4MP, 16x, WDR, LIGHTHUNTER, PTZ DOME

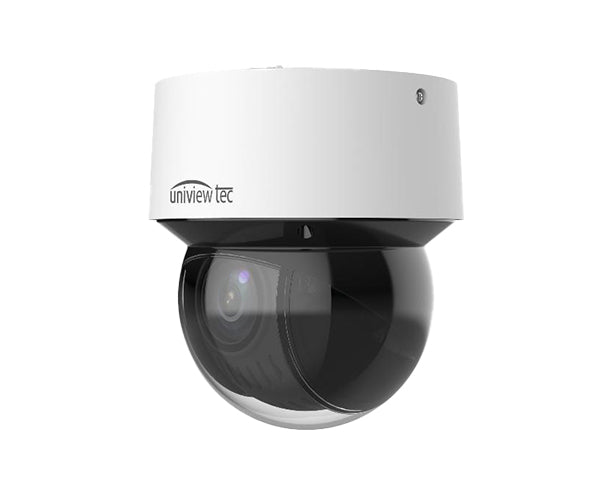

Take control of your surveillance with the Uniview 4MP 16x WDR LightHunter PTZ Dome camera. Fully NDAA-compliant, this advanced PTZ dome delivers exceptional 4MP resolution and H.265 compression to optimize bandwidth and storage. With LightHunter technology, it captures ultra-high-quality images even in low light, while powerful IR LEDs provide nighttime visibility up to an impressive 328 feet. The 16x optical zoom and motorized focus lens let you zoom in on details with precision, and TRUE WDR ensures clarity in any lighting condition. Built for speed, it rotates up to 240°/sec and supports up to 1024 preset positions for seamless tracking. With IP66 and IK10 ratings, it’s weatherproof and vandal-resistant, making it perfect for outdoor use. Plus, with local storage up to 512GB and support for Uniview’s Guard Station software and mobile apps, managing your system is effortless.
Use our convenient Camera Accessory Guide to determine what items you will need for installation.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Light Hunter illumination technology ensures ultra-high quality with 4MP, 2688 x 1520 Resolution, with Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage
- Ultra-Powerful, Smart IR LED Lights for 0 Lux Nighttime Operation up to 328 Feet
- 5.5 ~ 88mm, 16x Optical motorized zoom and focus lens
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Two-way Audio, Backlight Compensation and 3D DNR (Digital Noise Reduction)
- High Speed up to 240°/sec and up to 1024 Preset Positions
- Dual Video Streams; ONVIF Profile Series Compliant; with Motion Detection
- IP66 / IK10 Weather / Vandal Resistant Housing and PoE & 12VDC Power Options
- Wall, Pole & Corner Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 512GB
- Supported by Uniview tec Guard Station Software and Guard Live or Guard Viewer Mobile Apps for iPhone and Android Devices
Specifications
Specifications
| CAMERA | |
| Sensor | 1/2.9” 4MP CMOS |
| Min. Illumination | Color: 0.005 lux (F1.78, AGC ON); 0 lux with IR |
| True Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto / Manual, 1 ~ 1/100000s |
| WDR | 120dB |
| S/N | >56dB |
| LENS | |
| Focal Length | 5.5 ~ 88mm |
| Optical Zoom | 16x |
| Iris | F1.78-F3.73 |
| Field of View (H) | 50.85° ~ 3.47° |
| Field of View (V) | 29.94° ~ 1.95° |
| Field of View (D) | 62.55° ~ 4.09° |
| DORI | |
| Detect | 127.6m (418.6ft) ~ 2048m (6720.5ft) |
| Observe | 51.1m (167.4ft) ~ 819.4m (2688.2ft) |
| Recognize | 25.5m (83.7ft) ~ 409.7m (1344.1ft) |
| Identify | 12.8m (41.9ft) ~ 204.8m (672ft) |
| ILLUMINATOR | |
| IR Range | Up to 100m (328ft) |
| Wavelength | 850nm |
| IR On/Off Control | Auto/Manual |
| VIDEO | |
| Compression | H.265, H.264, MJPEG |
| Frame Rate | 4MP (2688 x 1520) @ 30fps |
| Sub Stream | 720P (1280 x 720) @ 30fps |
| Bit Rate | 128 Kbps ~ 16 Mbps |
| Video Streams | Dual |
| Privacy Mask | 24 areas, 4 per scene |
| INTELLIGENCE | |
| Smart Intrusion Prevention | Cross Line & Intrusion Detection |
| Basic Detection | Motion, Audio, Tampering Alarm |
| Auto Tracking | Supported |
| General Functions | Watermark, IP Filtering, Alarm Input, Access Policy |
| AUDIO | |
| Compression | G.711U, G.711A |
| Bitrate | 128 Kbps |
| Two-way Audio | Supported |
| Noise Suppression | Supported |
| STORAGE | |
| Edge Storage | Micro SD up to 512GB |
| Network Storage | ANR, NAS (NFS) |
| NETWORK | |
| Protocols | IPv4, IPv6, IGMP, RTP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Integration | ONVIF (Profile S, G, T), API, SDK |
| Users | Up to 32 users, 3 levels (Admin, Common, Operator) |
| Security | Password Protection, HTTPS Encryption, TLS 1.2 |
| PAN & TILT | |
| Pan Range | 360° (Endless) |
| Pan Speed | 0.1°/s ~ 240°/s |
| Tilt Range | –5° ~ 90° (Auto Flip) |
| Tilt Speed | 0.1°/s ~ 120°/s |
| Presets | 1024 |
| Preset Patrol | 16 patrols, 64 presets per patrol |
| Route Patrol | 16 patrols, 32 actions per patrol |
| INTERFACE | |
| Audio I/O | 1/1 |
| Alarm I/O | 2/1 |
| Serial Port | 1 x RS485 |
| Network | 1 x RJ45 10M/100M Ethernet |
| GENERAL | |
| Power | DC 12V (±10%, 3A), PoE+ (IEEE 802.3at) |
| Power Consumption | Max 23W |
| Dimensions | Ø167 x 181mm (Ø6.6” x 7.1”) |
| Weight | 2.3Kg (5.07lb) |
| Operating Temp | -40°C ~ 70°C (-40°F ~ 158°F) |
| Surge Protection | 6KV |
| Certifications | IP66, IK10, CE, FCC |
Mounting Accessories
Mounting Accessories
This camera is compatible with the following mounts:
