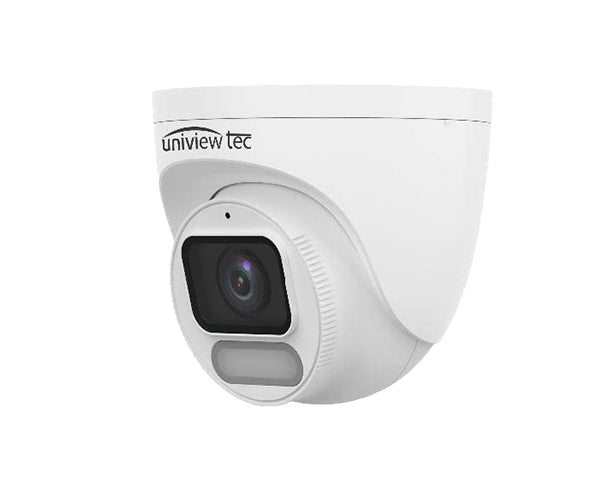

4MP, COLORHUNTER+, WDR, AI, TURRET
Experience cutting-edge surveillance with the Uniview 4MP ColorHunter+ WDR AI Turret camera. Fully NDAA-compliant, this Wise ISP camera delivers exceptional 4MP resolution and H.265 compression to optimize bandwidth and storage. What sets it apart? ColorHunter+ technology ensures vibrant, full-color images even in near darkness (0.0003 Lux), while powerful white light illumination extends visibility up to 98 feet at night. With TRUE WDR, smart AI features like intrusion prevention, and advanced tools like digital defog and 3D DNR, this camera ensures crystal-clear footage day or night. Built tough with IP67 weather resistance and flexible mounting options, it also supports local storage up to 256GB. Manage your system effortlessly with Uniview’s Guard Station software and mobile apps for seamless remote access.
Use our convenient Camera Accessory Guide to determine what items you will need for installation.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- ColorHunter+ (Wise-ISP) technology ensures ultra-high color image up to 0.0003 Lux (F1.0, AGC ON)
- Exceptional Video Quality with 4MP, 2688 x 1520 Resolution
- H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Powerful White Light Operation up to 98 Feet
- 2.8mm Fixed Lens; ONVIF Profile S Compliant
- Exceptional Night Time Color Image and WDR functionality
- Dual Video Streams, Built-in mic, Smart Illumination, Digital Defog, and 3D DNR
- Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 256GB
- 3-Way Axis, CE, and IP67 Weather Resistant
- Supported by Uniview Tec Guard Station Software, as well as Guard Live and Guard Viewer Mobile Apps for iPhone and Android Devices
Specifications
Specifications
| CAMERA | |
| Max Resolution | 4MP |
| Sensor | 1/1.8" CMOS |
| Minimum Illumination | Color: 0.0003 lux (F1.0, AGC ON) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 75°, Rotate: 0° ~ 360° |
| S/N | >52dB |
| WDR | 120dB |
| LENS | |
| Focal Length | 2.8mm |
| Iris Type | Fixed |
| Iris | F1.0 |
| Field of View (H) | 110.4° |
| Field of View (V) | 60.5° |
| Field of View (O) | 115.2° |
| DORI | |
| DORI Distance (Lens) | 43.4m (142.5.7ft) |
| DORI Distance (Detect) | 17.4m (57.0ft) |
| DORI Distance (Observe) | 8.7m (28.5ft) |
| DORI Distance (Recognize) | 4.3m (14.3ft) |
| ILLUMINATOR | |
| Illumination Distance (Warm Light) | 30m |
| Light On/Off Control | Auto / Manual |
| VIDEO | |
| Video Compression | H.265; H.264; MJPEG |
| Frame Rate | Main: 4MP (2688*1520) @25fps; 4MP (2560*1440) @25fps; 3MP (2304*1296) @30fps; 1080P (1920*1080) @30fps; Sub: 720P (1280*720) @30fps; D1 (720*576) @30fps; 640*360 @30fps |
| Video Bit Rate | 128 Kbps ~ 6144 Kbps |
| U-code | Supported |
| OSD; Privacy Mask | Up to 4 |
| ROI | Up to 8 areas |
| Video Stream | Dual Streams |
| IMAGE | |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
| Dewarping | N/A |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
| EVENTS | |
| Basic Detection | Motion Detection; Ultra Motion Detection; Tampering Alarm; Audio Detection; Cross Line (based on Human Body Detection); Intrusion (based on Human Body Detection) |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication |
| AUDIO | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | N/A |
| Suppression | Support |
| Sampling Rate | 8KHZ |
| STORAGE | |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR; NAS (NFS) |
| NETWORK | |
| Protocols | IPv4; IPv6; IGMP; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTP; RTSP; RTCP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; SMTP; 802.1x; SNMP; QoS; RTMP; SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API; SDK |
| User/Host | Up to 32 users, 2 user levels: administrator and common user |
| Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and digest authentication for RTSP; Digest authentication for HTTP; TLS 1.2; WSSE and digest authentication for ONVIF |
| INTERFACE | |
| Audio I/O | N/A |
| Alarm I/O | N/A |
| Serial Port | N/A |
| Built-in Mic | Support |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Video Output | N/A |
| CONFORMITY CERTIFICATIONS | |
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035) FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) |
| GENERAL | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 2.8W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Φ118x106mm (Ø4.6” x 4.2”) |
| Weight | 0.48kg(1.06lb) |
| Material | Metal + Plastic |
| Environment | -30 °C ~ 60 °C (-22 °F ~ 140 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 4KV |
| Reset Button | Support |
Additional Information
Additional Information
Accessories
This camera is compatible with the following Accessories:
- TR-JB03-I-IN: Junction Box
- TR-A01-IN: Waterproof Plastic Grommet
- TR-WM03-D-IN: Wall Mount
- TR-JB07-D-IN: Junction Box
- TR-UP06-IN: Camera Pole Mount
- TR-SE24-IN: Camera Mount Pipe 200mm
- TR-SE24-A-IN: Camera Mount Pipe 500mm
- TR-CM24-IN: Pendant Camera Mount Pipe 8.8"
What's in the Box
What's in the Box
- Qty 1 – Uniview Tec 4 MP, ColorHunter+ (Wise-ISP), WDR, AI, Turret Camera
