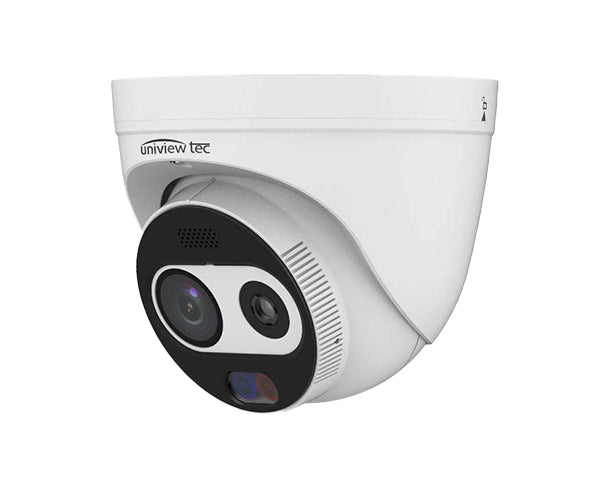

4MP, Thermal/Optical, WDR, TURRET
Upgrade your surveillance with the Uniview 4MP Thermal/Optical WDR Turret camera, a dual-technology solution designed for advanced security. Fully NDAA-compliant, it combines 4MP optical resolution with 960P thermal imaging, delivering exceptional clarity and heat detection. With H.265 compression, it optimizes bandwidth and storage, while smart IR LEDs and red/blue warning lights ensure nighttime visibility up to 98.4 feet. TRUE WDR and day/night functionality guarantee optimal performance in any lighting condition. Smart features like intrusion prevention and digital defog reduce false alarms, focusing only on humans and vehicles. Built tough with IP67 weather resistance and flexible mounting options, it also supports local storage up to 512GB. Plus, manage it all effortlessly with Uniview’s Guard Station software and mobile apps for seamless remote access.
Use our convenient Camera Accessory Guide to determine what items you will need for installation.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Illumination technology ensures ultra-high color image up to 0.003 Lux (F1.6)
- 4MP (2688 x 1520) Optical Resolution and 960P (1280 x 960) Thermal Resolution
- Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Smart IR LED Lights for Nighttime Operation up to 98.4 Feet, w/ Red & Blue Warning Lights
- ONVIF Profile S Compliant
- TRUE Day/Night and WDR functionality for all Lighting Conditions
- Triple Streams, Digital Defog, Built in Mic and Speaker, Smart IR and 3D DNR
- Intelligent, smart intrusion prevention technology for significantly reduced false alarms when focusing on humans and motor vehicles
- PoE & 12VDC Power Options and Optional Mounts Available
- Built-in Micro-SD Card Slot enables local storage up to 512GB
- 3-Way Axis, IP67 Weather Resistant
- Supported by Uniview tec Guard Station Software as well as Guard Live and Guard Viewer Mobile App’s for iPhone and Android Devices
Specifications
Specifications
| CAMERA | |
| Max Resolution | 4MP |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.01 lux (F1.6, AGC ON); B/W: 0.005 lux (F2.0, AGC ON); 0 Lux with IR on |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotate: 0° ~ 360° |
| S/N | >56dB |
| WDR | 120dB |
| LENS | |
| Focal Length | 2.6 mm (Optical), 2.1 mm (Thermal) |
| Iris Type | Fixed |
| Iris | F1.6 (Optical), F1.0 (Thermal) |
| Field of View (H) | 129.4° (Optical), 90.0° (Thermal) |
| Field of View (V) | 69.9° (Optical), 65.6° (Thermal) |
| Field of View (D) | 168.2° (Optical), 117.0° (Thermal) |
| DORI | |
| DORI Distance (Detect) | 58.5m (191.9ft) |
| DORI Distance (Observe) | 23.4m (76.8ft) |
| DORI Distance (Recognize) | 11.7m (38.4ft) |
| DORI Distance (Identify) | 5.9m (19.2ft) |
| ILLUMINATOR | |
| Supplemental Light | IR |
| Illumination Distance (IR) | 30 m (98.4 ft) |
| Wavelength | 750 nm |
| IR On/Off Control | Auto/Manual |
| VIDEO | |
| Video Compression | H.265; H.264; MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate | 4MP (2688 x 1520) @30fps, 960P (1280 x 960) @30fps |
| Video Bit Rate | 128 Kbps ~ 16 Mbps |
| U-code | Support |
| OSD, ROI, Privacy Mask | Up to 8 OSDs |
| Video Stream | Triple Streams |
| IMAGE | |
| White Balance | Auto; Outdoor; Fine Tune; Sodium Lamp; Locked; Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal; Flip Vertical; Flip Horizontal; 180°; 90°Clockwise; 90°Anti-clockwise |
| Defog | Digital Defog |
| EVENTS | |
| Basic Detection | Optical & Thermal: Cross Line; Intrusion, Enter Area, Leave Area; Optical: Smoke, Motion Detection; Tampering Alarm; Audio Detection; Thermal: Fire Detection |
| General Function | Watermark; IP Address Filtering; Access Policy; ARP Protection; RTSP Authentication; User Authentication; HTTP Authentication, Alarm input; Alarm output |
| AUDIO | |
| Audio Compression | G.711U; G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
| STORAGE | |
| Edge Storage | Micro SD, up to 512 GB |
| Network Storage | ANR |
| NETWORK | |
| Protocols | IGMP; RTP; SMTP; IPv4; IPv6; ICMP; ARP; TCP; UDP; DHCP; PPPoE; RTSP; RTCP; RTMP; DNS; DDNS; NTP; FTP; UPnP; HTTP; HTTPS; 802.1x; SNMP; QoS; SSL/TLS; SSH |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T); API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection; Strong Password; HTTPS Encryption; Export Operation Logs; Basic and Digest Authentication for RTSP; Digest Authentication for HTTP; TLS 1.2; WSSE and Digest Authentication for ONVIF |
| INTERFACE | |
| Audio I/O | 1 Input: 1kΩ; 2.5V [p-p] / 1 Output: 600Ω; 2V [p-p] |
| Alarm I/O | 2/2 |
| Serial Port | RS485 interface |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 x RJ45 10M/100M Base-TX Ethernet |
| Video Output | Supported, Thermal Module: BNC |
| CERTIFICATION | |
| EMC | CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 50130-4: 2011+A1:2014) FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN IEC 62368-1:2020+A11:2020) UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) IK10 (IEC 62262:2002) |
| GENERAL | |
| Power | DC 12V±25%, PoE (IEEE 802.3af); Power consumption: Max 12W |
| Power Interface | Ø 5.5mm coaxial power plug |
| Dimensions | Ø 129×114mm (Ø 5.08”×4.49”) |
| Weight | 0.72kg (1.6lb) |
| Environment | -40 °C ~ 70 °C (-40 °F ~ 158 °F), Humidity: ≤95% (non-condensing) |
| Mounting | Wall; Ceiling; Junction Box; Pendant Pole Mount; Corner Mount |
Additional Information
Additional Information
Accessories
This camera is compatible with the following Accessories:
- TR-JB03-H-IN: Junction Box
- TR-A01-IN: Waterproof Plastic Grommet
- WMJB01: Wall Mount Junction Box Combination
- TR-WM03-B-IN: Wall Mount
- TR-UP06-IN:Camera Pole Mount
- TR-SE24-IN: Camera Mount Pipe 200mm
- TR-SE24-A-IN: Camera Mount Pipe 500mm
- TR-CM24-IN: Pendant Camera Mount Pipe 8.8"
What's in the Box
What's in the Box
- Qty 1 – 4MP Thermal/Optical WDR Turret Camera
