Description

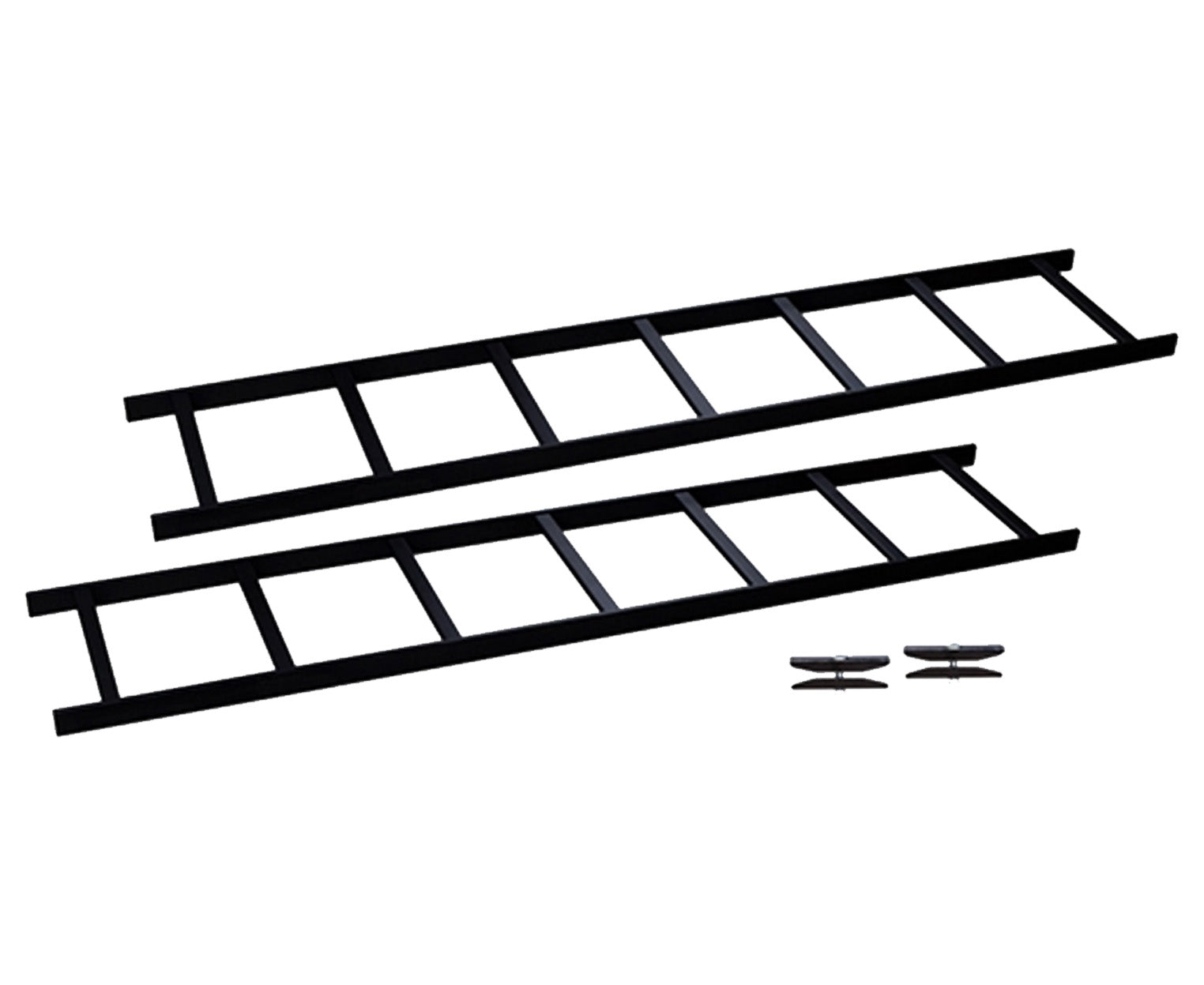

5-Foot Cable Ladder Rack Kit, 5' x 12"
Our 5-Foot Cable Ladder Rack kit allows you to have the equivalent of 10 feet of ladder rack. Order our bundle kit and avoid incurring hefty surcharges applied by freight carriers.
Each kit includes (2) 5ft x 12” wide ladder sections and (1) butt splice kit, which when assembled creates 10 feet of ladder.
Features
Features
- Stringers: 1-1/2 x 3/8 x 0.06 thick tubular steel
- Cross Members: 1.00 x 1/2 thick tubular steel welded on 9.00 centers
- Max. load w/min. deflection: 132 lbs. per foot if supported every 5 feet
- Kit Includes: (2) 5 foot Ladder Rack Runways, (1) Butt Splice Kit
Specifications
Specifications
Technical Illustration
What’s In The Box
What’s In The Box
- (2) 5-Foot Ladder Rack Runways
- (1) Butt Splice Kit
