Description
Description

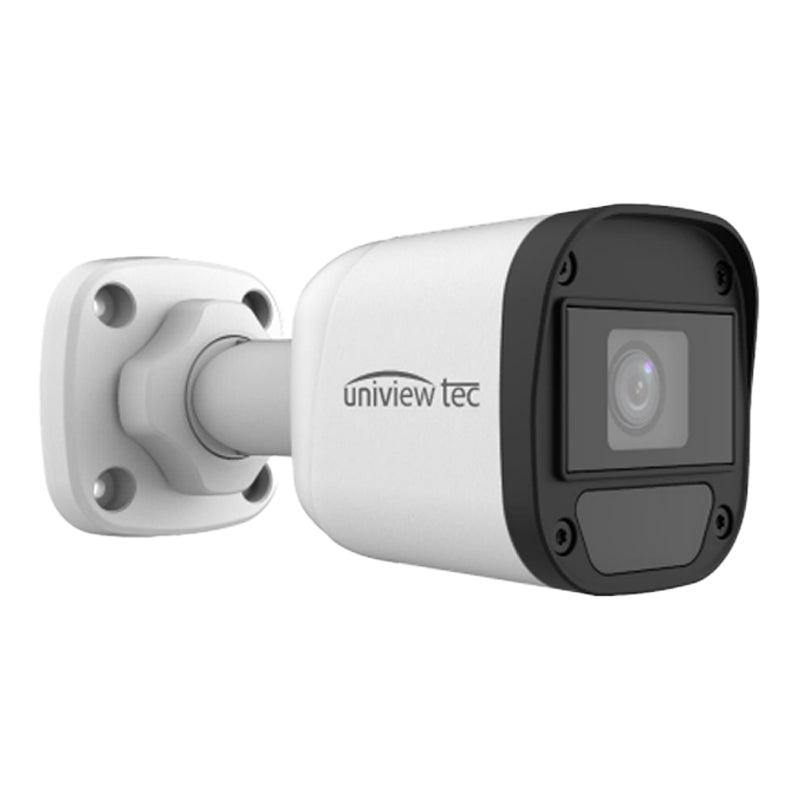

5MP, HD Analog, DWDR, IR 2.88mm Bullet Camera
This IR Bullet Camera by Uniview Tec features 5MP video quality at 2880X1620 resolution. With High Definition Analog (HD Analog) over coax technology, this 5MP bullet camera delivers high-resolution images over existing coax cable, saving time and money.
Additionally, this Bullet Camera is supported by Uniview Tec software and comes with powerful video analytics as well as mobile viewing compatibility. This camera is IP67 weather-resistant and IK10 vandal making it an ideal choice for both indoor and outdoor situations.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- High Video Quality with 5MP, 2880 x 1620 Resolution
- High Definition Analog (HD Analog) over Coax Technology, utilizes existing Coax Cables & BNC Connectors, allowing Mega-pixel Video Images without any rewiring necessary
- TVI, AHD, CVI, and CVBS Protocol selectable — Engineered to work with UVT Hybrid NVR’s for Maximum Stability and Performance
- Smart IR LED Lights for 0Lux Night Time Operation up to 65 Feet
- 2.8mm fixed lens
- TRUE Day/Night and DWDR functionality for all Lighting Conditions
- Backlight Compensation and 2D DNR (Digital Noise Reduction)
- Supports 180° horizontal flip, 180° vertical flip
- Easy to Operation On Screen Display (OSD) Configuration Menu
- 12VDC Power Options
- IP67 Weather Resistant Housing with Optional Mounts
- Supported by Uniview-Tec Guard Station Client Software and Guard Viewer Mobile App’s for iPhone and Android Devices
Specifications
Specifications
Additional Information
Additional Information
Mounting Accessories
This camera is compatible with the following mounts:
- TR-UP06-B-IN: Pole Mount
- TR-JB05-A-IN: Junction Box
- TR-A01-IN: Water Proof Plastic Grommet
- TR-UC08-C: Corner Mount
- TR-UP06-C-IN: Pole Mount
What's in the Box
What’s in the Box
- Qty 1 – 5MP HD Analog Bullet Camera (2.8mm fixed lens, IP67-rated metal housing)
- Qty 1 – Wiring harness (with BNC connector + 5.5mm power interface)
- Qty 1 – 3D mounting bracket (for flexible surface/ceiling installation)
- Qty 1 – Mounting screw kit (for securing the camera and bracket)
- Qty 1 – Quick start guide/documentation
