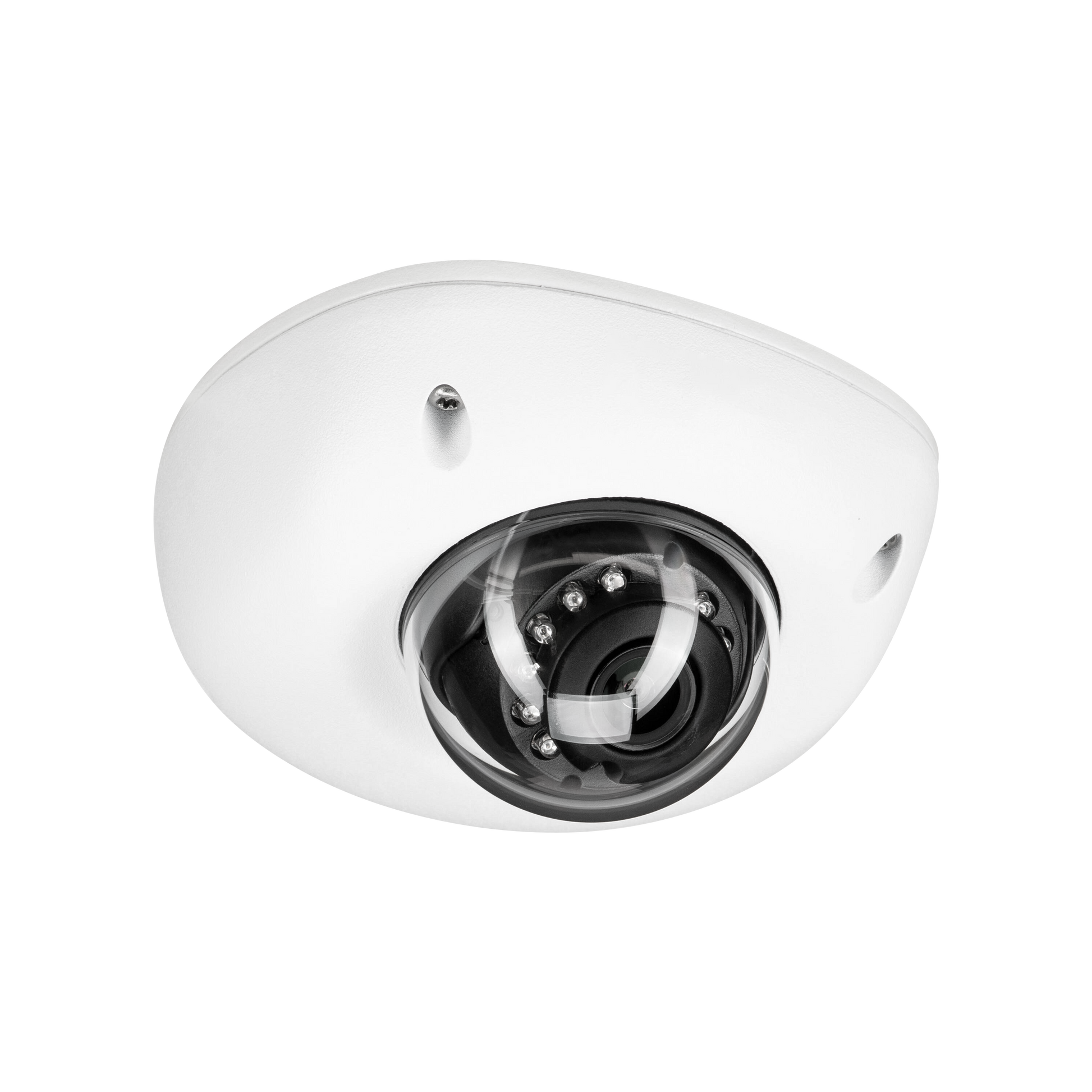

5MP High Definition Wide Angle IR Dome Camera
This Wide Angle Dome Camera features up to 5 Megapixels of stunning Ultra HD resolution combined with efficient H.265 compression, which allows for bitrates nearly half those of other cameras utilizing older H.264 compression technology. The camera uses a 1/2.7" progressive scan CMOS sensor to record 2592 x 1944 resolution video at 15 fps while the 2.8mm fixed lens covers a 92º horizontal range. IR LEDs illuminate up to a 33 foot range during pitch dark conditions. Power over ethernet capability streamlines the process by requiring only one cable for both a power source and data transfer. The built-in microphone captures audio and the IP66-rated housing makes this camera suitable for indoor or outdoor use. This camera is NDAA compliant and ONVIF compliant.
Features
Features
- Resolution: 5MP 2592(H) × 1944(V)
- Shutter: 1/5 ~ 1/20000s
- Lens: 2.8mm H.FOV: 92°
- System Compatibility: ONVIF (Profile S, Profile G)
- Led: 12 pcs
Specifications
Specifications
Thermal Camera
| Mechanical specifications | |
|---|---|
| Image Sensor | 1/2.7" Progressive CMOS |
| Resolution | 5MP 2592 ( H ) x 1944 ( W ) |
| Min. Illumination | Color 0.05lux @ F1.2(AGC ON) B/W 0 lux @ IR ON |
| Shutter | 1/5 ~ 1/20000s |
| Slow shutter | Support |
| Lens | 2.8mm H.FOV: 92° |
| Digital noise reduction | 3D DNR |
| WDR | Digital WDR |
| Compression | |
|---|---|
| Video Compression | H.265/H.264 |
| Video Bit Rate | 8Kbps ~ 8Mbps |
| Stream | Dual |
| Image | |
|---|---|
| Frame Rate | Mainstream (15fps/5MP) 5MP(2592×1944), 4MP(2592x1520), 3MP(2048x1520), (2304x1296), 1080P(1920x1080), 960P(1280x960), 720P(1280x720) Substream (10fps/VGA) VGA(640x480), QVGA(320x240) |
| Image Settings | Flip mode, Adjustable Saturation, Brightness, Contrast, Hue, and Sharpness |
| BLC | Support |
| Privacy Mask | Support |
| Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, TP, NTP, UPnP, SNMP, HTTPS, FTP |
| System Compatibility | ONVIF (Profile S, Profile G) |
| Interface |
|
|---|---|
| Interface | RJ45 10M / 100M Ethernet interface x1 |
| Led | 12pcs |
| IR Range | Up to 10m |
| SD storage | Yes |
| Microphone | Yes |
| PoE | Yes |
| Protocol | ONVIF 2.4 |
| Electrical |
|
|---|---|
| Power Supply | DC 12V/POE |
| Power Consumption | ≤ 7W |
| Operating Temperature | -30 ~ 55°C |
| Physical | |
|---|---|
| Dimensions | 4.72" X 2.51" |
| Weight | 0.83 lb |
| Lens Cover | High-Intensity Gray - Black High Transparency Plexiglass |
| Weather-Rating | IP67 Rated |
What's In The Box
What's In The Box
- Qty 1 - 5MP High Definition Wide Angle IR Dome Camera
