Description

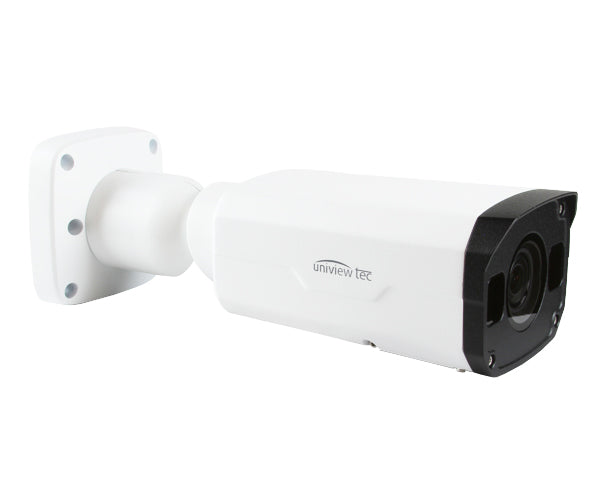

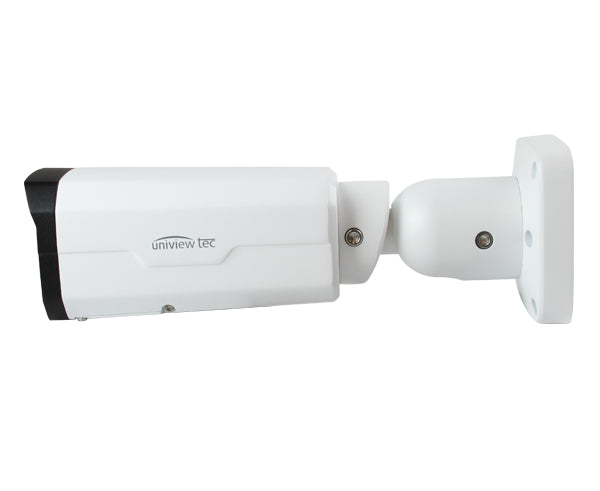

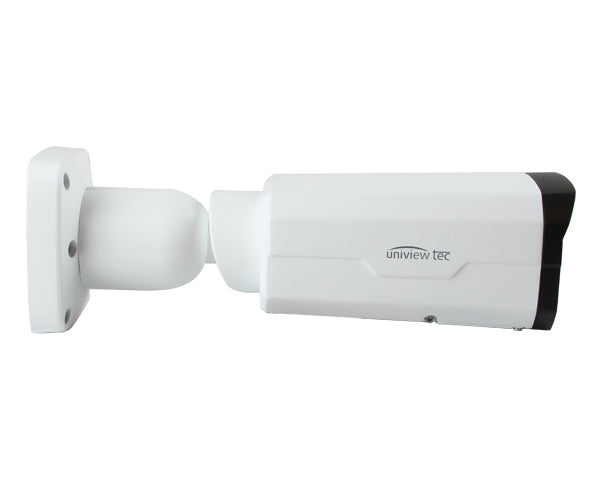

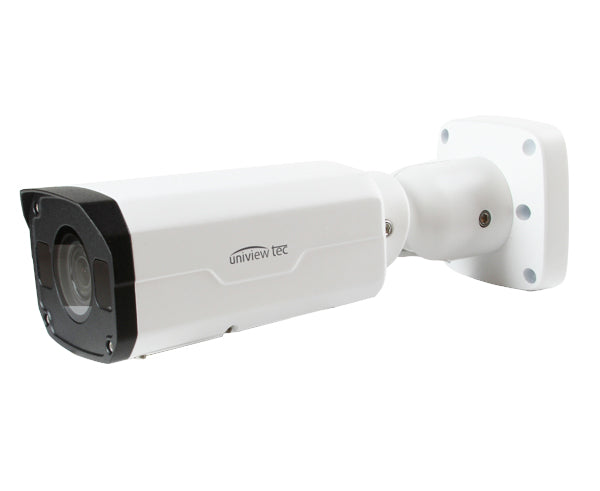

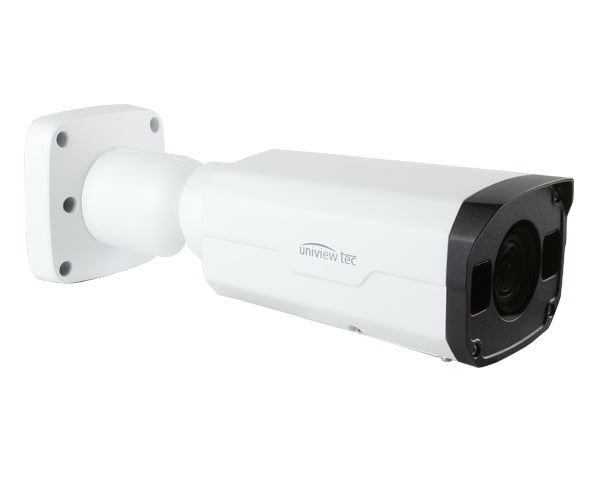

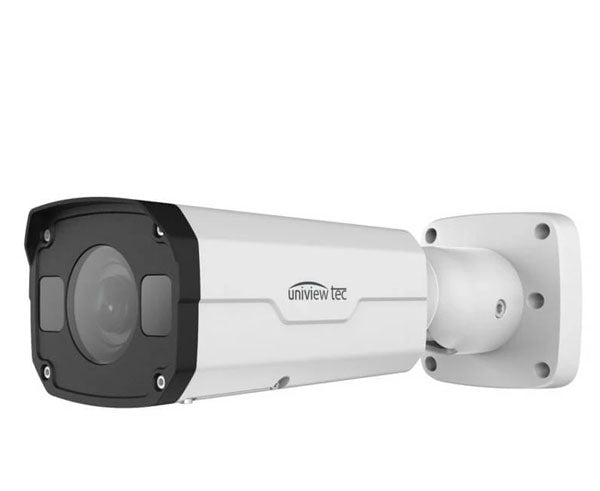

5MP Varifocal Bullet Security Camera, LightHunter, WDR, IR
This bullet security camera from Uniview Tec comes equipped with a 2.7~13.5mm, motorized varifocal lens with automatic focus. It features LightHunter technology for ultra-high-quality color video images in low-light applications. This security camera is capable of exceptional video quality with 5MP, 2880x1620 resolution, and has smart IR LED lights for 0 lux nighttime operation up to 164 feet, making it an excellent choice for indoor or outdoor applications. The highly efficient H.265 video compression drastically reduces bandwidth and storage requirements and it has a built-in micro-SD card slot that enables local storage up to 256 GB. This camera is ideal for any security system.
Use our convenient Camera Accessory Guide to determine what items you will need for installation.
Features
Features
- Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
- Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
- LightHunter Technology for Ultra-High Quality Color Video Images in Low Light Applications
- Highly Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
- Smart IR LED Lights for 0 Lux Night Time Operation up to 164 Feet

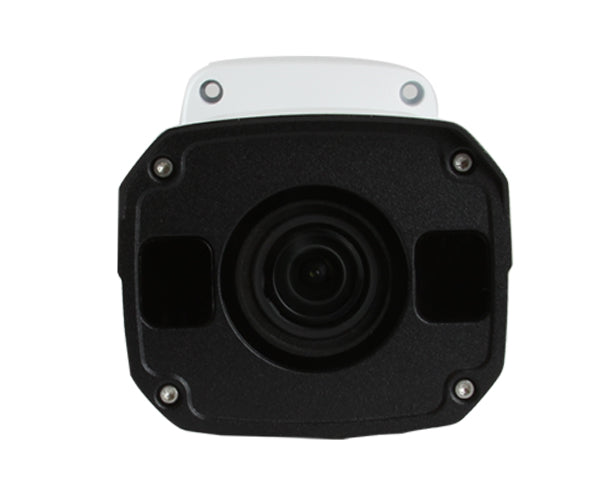

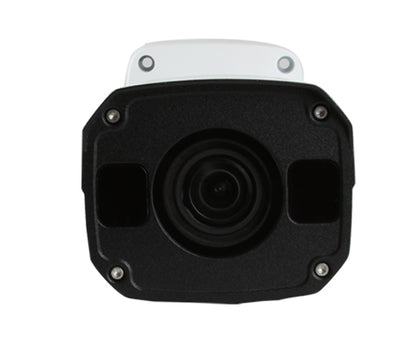

- 2.7 ~ 13.5mm Motorized Varifocal Automatic Focus Lens
- TRUE Day/Night and WDR Functionality for all Lighting Conditions
- Two-way Audio, Corridor View, Backlight Compensation, and 3D DNR (Digital Noise Reduction)
- Triple Video Streams; ONVIF Profile S Compliant
- Intelligent Perimeter Protection with Smart Intrusion Detection Analytics

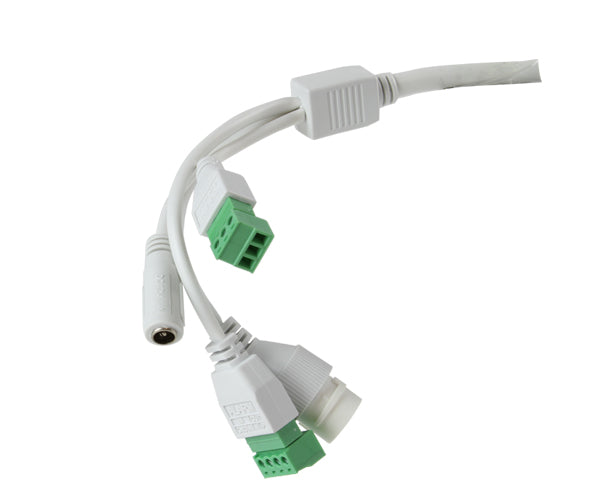

- PoE & 12VDC Power Options
- Built-in Micro-SD Card Slot Enables Local Storage up to 256GB
- IP67 Weather Resistant and IK10 Vandal Resistant Housing and Optional Mounts Available
- Supported by Uniview Tec Guard Station Software and Guard Viewer Mobile Apps for iPhone and Android Devices
Specifications
Specifications
| Camera | |
|---|---|
| Sensor | 1/2.7", progressive scan, 5 megapixel, CMOS |
| Lens | 2.7 ~ 13.5mm, varifocal automatic focusing and motorized zoom lens |
| Angle of View (H × V) | 106.25° ~ 30.42° × 56.36° ~ 17.22° (Wide ~ Tele) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| Minimum Illumination | Color: 0.002 Lux (F1.2, AGC ON); 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Digital noise reduction | 2D/3D DNR |
| IR LED Range | Up to 50m (164ft) IR range |
| WDR | 120dB |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 code profile | Baseline profile, Main Profile, High Profile |
| Maximum Frame Rate / Stream |
Main Stream: 5MP (2880 × 1620) @ 30 fps Sub: 2MP (1920 × 1080) @ 30fps Third Stream: D1 (720×576) @ 30fps |
| HLC, BLC, 9:16 Corridor, Defog | Supported |
| OSD, Privacy, Motion & ROI | Up to 8 areas |
| Network | |
|---|---|
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP |
| Network | RJ45, 10M/100M Base-TX Ethernet |
| Smart Intrusion Prevention | Cross Line, Intrusion, Enter/Leave Area Detection |
| Compatible Integration | ONVIF (Profile S, G, T); API |
| Local & Network Storage | Micro-SD, up to 256GB; ANR |
| General | |
|---|---|
| Power | 12VDC ±25%, PoE (IEEE802.3 af); Max 8W |
| Dimensions (L × W × H) & Weight |
245 × 86 × 72mm (9.6 × 3.4 × 2.8"); 0.92kg (2lb) |
| Audio I/O & Compression | 1 / 1; G.711 compression |
| Alarm I/O | 1 / 1 |
| Operating Temperature & Humidity |
-30°C ~ +60°C (-22°F ~ 140°F); Humidity: 10%~95% RH (non-condensing) |
| Conformity Certifications | IP67, IK10, CE, FCC |
Mounting Accessories
Mounting Accessories
This camera is compatible with the following mounts:
