5MP, WDR, AI, IR, TURRET

5MP, WDR, AI, IR, TURRET

BY Uniview

$429.00 USD
$429.00 USD
Sale Sold out

SKU: IPT5ES28X

 ⚠ Various lead times may apply to this product. Please contact us for more details.

View full details

UL Listed logo

This product is intended to be purchased by installers only

Description

Description

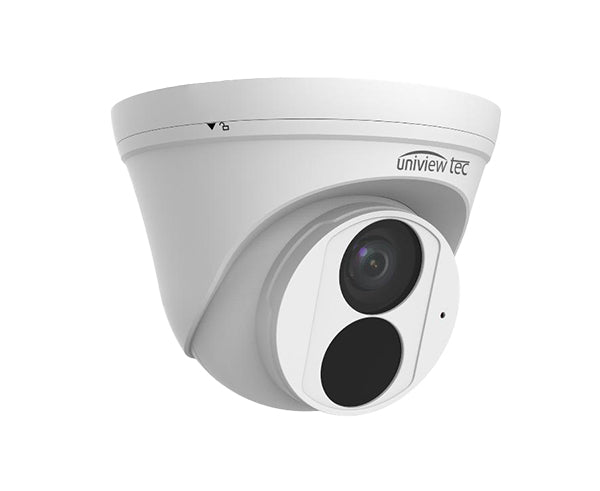

5MP, WDR, AI, IR, TURRET

Upgrade your security with the Uniview 5MP WDR AI IR Turret camera, a reliable and intelligent solution for any environment. Fully NDAA-compliant, it delivers crisp 5MP resolution and H.265 compression to save bandwidth and storage without compromising quality. With powerful IR LEDs for nighttime visibility up to 98 feet and TRUE WDR for balanced lighting in any condition, this camera ensures clarity day or night. Its smart AI features, like intrusion prevention and corridor mode, reduce false alarms while focusing on what matters most—people and vehicles. Built tough with IP67 weather resistance and flexible mounting options, it also supports local storage up to 512GB. Plus, manage it all effortlessly with Uniview’s Guard Station software and mobile apps for seamless remote access

Features

Features

  • Fully Adheres to National Defense Authorization Act (NDAA) Guidelines
  • Easy Star Illumination technology ensures color image up to 0.003 Lux (F1.6, AGC ON)
  • Exceptional Video Quality with 5MP, 2880 x 1620 Resolution
  • Super-Efficient H.265 Video Compression for Drastically Reduced Bandwidth and Storage Requirements
  • Powerful, Smart IR LED Lights for 0Lux Nighttime Operation up to 98 Feet
  • 2.8mm Fixed Lens; ONVIF Profile S Compliant
  • TRUE Day/Night and WDR functionality for all Lighting Conditions
  • Dual Video Streams, Built-in mic, Corridor Mode, Backlight Compensation and 3D DNR
  • Intelligent, smart intrusion prevention technology for significantly reduced false alarms when 0focusing on humans and motor vehicles
  • PoE & 12VDC Power Options and Optional Wall and Pendant Mounts Available
  • Built-in Micro-SD Card Slot enables local storage up to 512GB
  • 3-Way Axis and IP67 Weather Resistant
  • Supported by Uniview tec Guard Station Software, as well as Guard Live and Guard Viewer Mobile App’s for iPhone and Android Devices

Specifications

Specifications

Camera Specifications
Max Resolution 5MP
Sensor 1/2.7" CMOS
Min. Illumination Color: 0.003 lux (F1.6, AGC ON); 0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt: 0° ~ 80°, Rotate: 0° ~ 360°
S/N >52dB
WDR 120dB
Lens
Focal Length 2.8mm
Iris Type Fixed, F1.6
Field of View H: 110.0°, V: 58.7°, O: 130°
DORI (2.8mm)
Detect 63.0m (206.7ft)
Observe 25.2m (82.7ft)
Recognize 12.6m (41.3ft)
Identify 6.3m (20.7ft)
Illuminator
Supplemental Light IR, Up to 30m (98.4ft)
Wavelength 850nm
IR Control Auto/Manual
Video
Compression H.265, H.264, MJPEG
Frame Rate Main: 5MP @25fps; Sub: 720P @30fps
Bit Rate 128 Kbps ~ 6144 Kbps
Streams Dual Streams
OSD/Privacy Mask Up to 4
White Balance Auto, Outdoor, Fine Tune
Digital Noise Reduction 2D/3D DNR
Smart IR Support
Flip Normal, 180°, 90° CW/CCW
Defog Digital
Events
Detection Cross Line, Motion, Tampering, Audio
General Features Watermark, IP Filtering, User Auth
Audio
Compression G.711U/A
Bitrate 64 Kbps
Storage
Edge Storage Micro SD, up to 512GB
Network Storage ANR, NAS
Network
Protocols IPv4, TCP, UDP, RTSP, HTTPS, SNMP
Compatible ONVIF, API, SDK
Users Up to 32 (3 Levels)
Interface
Network 1 x RJ45
Built-in Mic Yes
General
Power DC 12V±25%, PoE; Max 4.4W
Dimensions Φ118 x 95mm (Φ4.6” x 3.8”)
Weight 0.32kg (0.71lb)
Protection IP67, Surge 4KV

Additional Information

Additional Information

Mounting Accessories

This camera is compatible with the following mounts:

What's in the Box

What's in the Box

  • Qty 1 – Uniview 4 MP WDR AI IR Turret Camera
