6 Strand Hybrid Fiber Optic Cable, Single Mode 9/125, Indoor/Outdoor, OFNR, 2x 16AWG Stranded Conductors
by Primus Cable
$0.74
SKU: HB2-5957-S6R
(We do not offer credits or returns for this item.)
This fiber cable is priced per foot.
Note: Orders over 1200ft must ship freight and requires a shipping quote. To request a shipping quote email us or call us
If you would like to inquire about our custom fiber cable options such as terminated ends, or pulleyes please call or email us.
Description

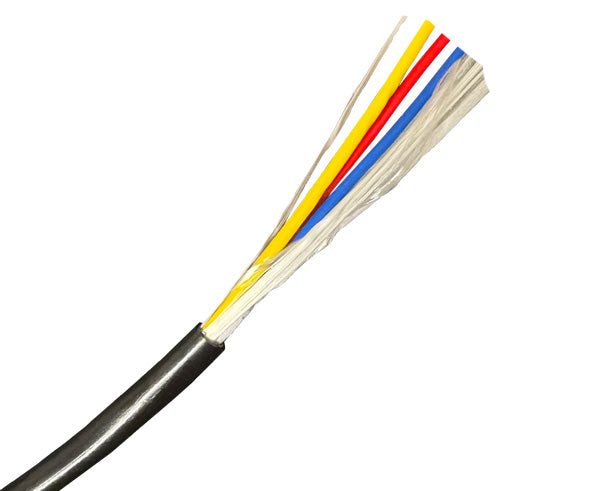

6-Strand Hybrid Single Mode Fiber Cable, Indoor/Outdoor, OFNR, HDPE Jacket
This 6-Strand Hybrid Fiber Optic Cable features single-mode 9/125 fibers and two 16 AWG stranded copper conductors, making it ideal for both data and power transmission. Designed for indoor and outdoor applications, it is OFNR-rated for safe use in riser spaces, providing durability and performance in demanding environments.
Features
Features
- Suitable for both indoor and outdoor applications
- 6-strand Single Mode 9/125μm
- HDPE jacket offers robust protection
- FRP (Fiber Reinforced Plastic) strength member with a diameter of 1.5mm.
- 2x 16AWG stranded power conductors
- 14 AWG version also available
Specifications
Specifications
- Cladding Diameter: 125.0+/-0.7μm
- Cladding Non-Circularity: ≤1.0%
- Core-Clad Concentricity Error: ≤0.6μm
- Coating Diameter: 242+/-7μm
- Coating-Cladding Concentricity error:≤12 μm
- Cable Cutoff Wavelength: ≤1312 nm+/-12μm
- Attenuation (Maximum):
≤ 0.4 dB/km @1310nm
≤ 0.4 dB/km @1383nm
≤ 0.3 dB/km @1550nm
≤ 0.3 dB/km @1625nm
