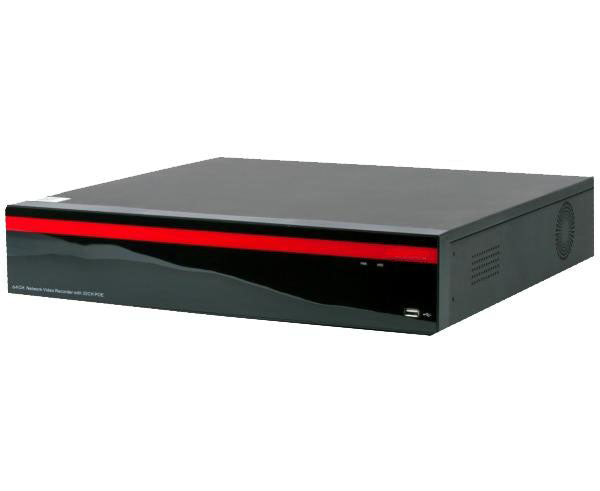

64 Channel-32 Port NVR Security System for IP Surveillance Cameras
The 64-Channel NVR works with IP security cameras in a surveillance system. It comes with 32 port Power over Ethernet (PoE). It records 15FPS at 8MP and 30FPS at 3MP. This NVR is compatible with both iOS and Android smartphones for remote viewing and has one USB 3.0 port for backups and two USB 2.0 ports for the mouse. Output interface options include 1 HDMI and 1 VGA. It is available with hard drive storage from 4TB to 64TB
The NVRs are excellent for managing multiple cameras from one central location as well as allowing for large storage space to keep videos on for a longer period. It is also a perfect way to review and analyze all your surveillance videos from one interface.
Features
Features
- 64 Channel NVR
- Recording Resolution: 8MP(4K), 5MP, 3MP, 2MP(1080p), 1.3MP(960p), 1.0MP(720p)
- Output Interface: 1HDMI (up to 4K), 1 VGA
- Compatible with iOS and Android Phones
- Max 640Mbps Recording Bandwidth Throughout
- Supports up to 64TB Hard Drive
- 32 PoE Ports
Specifications
Specifications
| 64-Channel NVR Specifications | |
|---|---|
| Recording Bandwidth | Max 640 Mbps Throughout |
| Recording Resolution | 8MP(4K), 5MP, 3MP ,2MP(1080P),1.3MP(960P),1.0MP(720P) |
| Display Split | 1 / 4 / 6 / 8 / 9 / 10 / 13 / 14 / 16 / 32 / 36 / 64 |
| Recording Frames Per Second | 8MP (4K): 15 FPS, 5MP: 15FPS, 4MP: 20FPS, 3MP: 30FPS 2MP:, 30FPS |
| Output Interface | 1 HDMI (up to 4K), 1 VGA |
| Display Resolution | 1024x768, 1280x720, 1280x1024, 1440x900, 1920x1080 1680x1050, 1600x1200, 1900x1200, 2560x1440, 3840x2160 |
| RS-485 E-SATA Line in |
Yes Yes Yes |
| Alarm Input/out | 32CH Input / 1CH Output |
| Audio | 1-Channel Audio In / 1-Channel Audio Out |
| Ethernet | RJ-45 port (1000M) |
| Mobile Device Access | Yes, Bolide Quick Connect for iOS and Android |
| Internal HDD | 8 SATA HDDs, each HDD up to 8TB |
| USB | 1x 3.0 USB for video backup/ firmware upgrade, 2x 2.0 USB for mouse |
| ONVIF | ONVIF Profile S Version 2.6 |
| POE | 32 PoE ports, single port up to 802.3at(30w) |
| Power Supply | 2x AC 100~240V ,PoE Switch: 48V |
| Dimension (W_D_H) | 17.5" x 17" x 3.5" (Rackmount Ears Included) |
What's in the Box
What’s in the Box
- Qty 1 - 64 Channel NVR unit with H.265 video compression
- Qty 1 - 32-Port built-in PoE switch
- Qty 1 - Pre-installed HDD (4TB to 64TB depending on configuration)
- Qty 1 - Power adapter and power cable
- Qty 1 - Mouse for NVR control
- Qty 1 - HDMI and VGA video output cables
- Qty 1 - Rack mount ears and screws
- Qty 1 - Software and user manuals
- Qty 1 - Remote control (optional, depending on model)
