8" Medallion with Box

8" Medallion with Box

BY Arlington

Regular price $24.12 USD
Regular price Sale price $24.12 USD
Sale Sold out

SKU: SKU: MB8

 Various lead times may apply to this product. Please contact us for more details.

View full details

UL Listed Made in USA

Some items may require minimum order quantities which can be changed in your shopping cart.

Description

Description

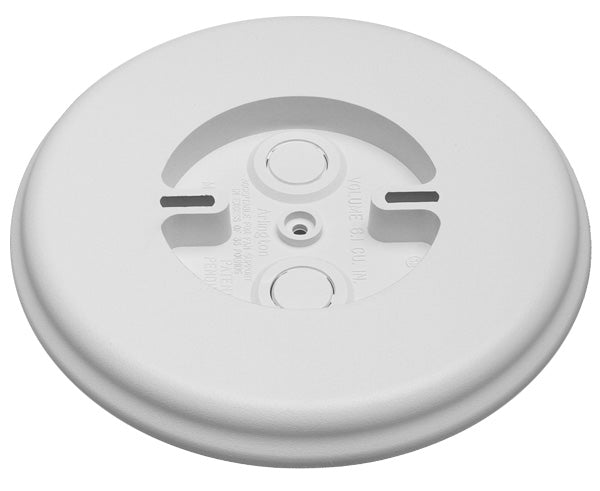

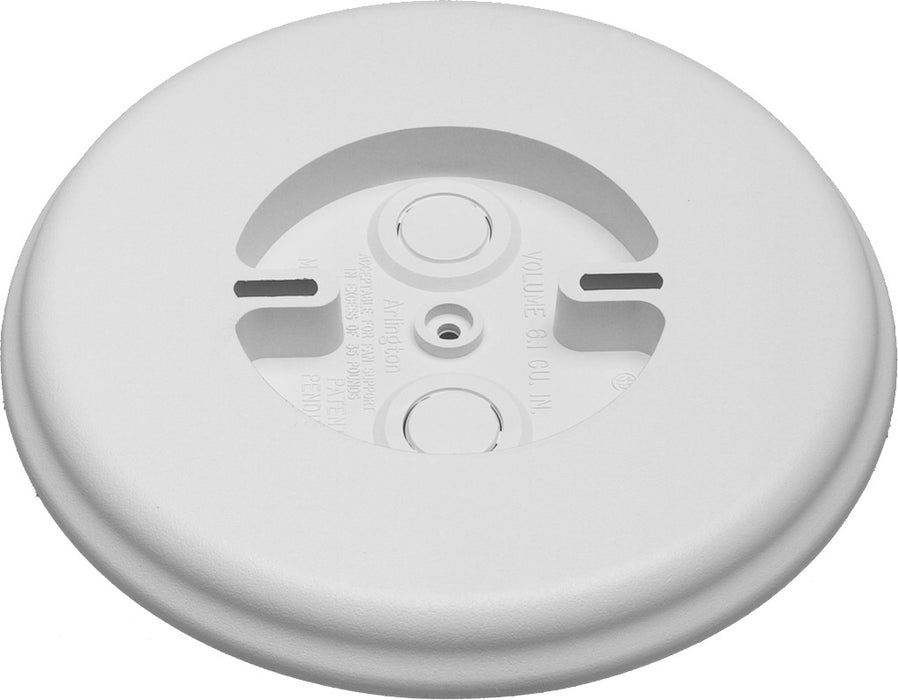

8" Mounting Block with Built-In Box for Fan and Fixture Installations

Our 8" round mounting block. It has a built-in electrical box for fan and fixture installations. For interior or exterior use. Fan rated up to 70lbs, fixture rated up to 200lbs.

Features

Features

  • Mounts directly to soffit or ceiling joist without the need to cut ceiling drywall
  • UL Rated: 70lb Fan; 200lb Fixture
  • Supports flood lights, smoke detectors, fans, light fixtures needing a safe and strong installation
  • Paintable, UV-rated plastic
  • For interior or exterior use
  • The ceiling medallion and electrical box combined

Specifications

Specifications

Physical Information

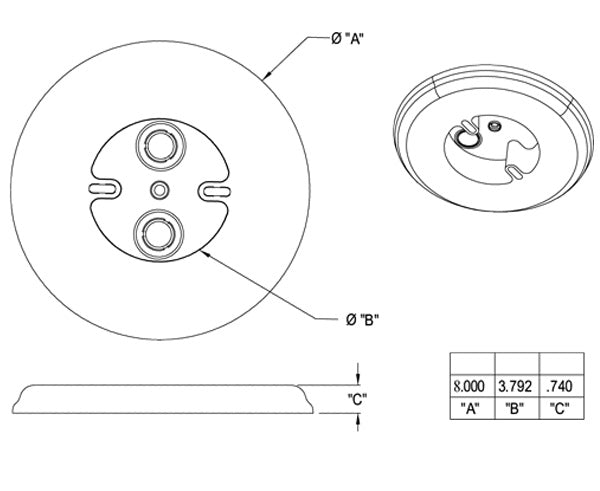

Diameter 8.000"
Weight 0.626 lbs
Color White
Material UV-Rated Plastic

Technical Information

Style Flat Mount 6.1 Cu. In.
Load Rating UL Rated: 70lb Fan; 200lb Fixture
CSA Rated: 50lb Fan; 50lb Fixture
Usage For interior or exterior; Supports flood lights, smoke detectors, fans, light fixtures, etc.


What's In The Box

What's In The Box

  • Qty 1 - NM94 Cable Connector
  • Qty 1 - Medallion with built-in electrical box
  • Qty 1 - #8 x 1-1/2" Long Screw
  • Qty 2 - #10 x 3" Long Screws
