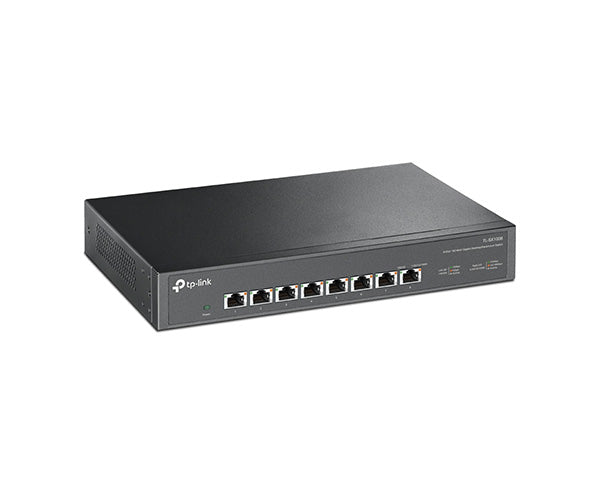

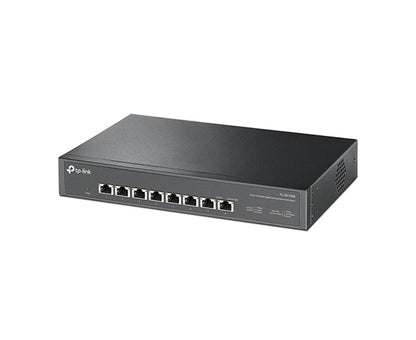

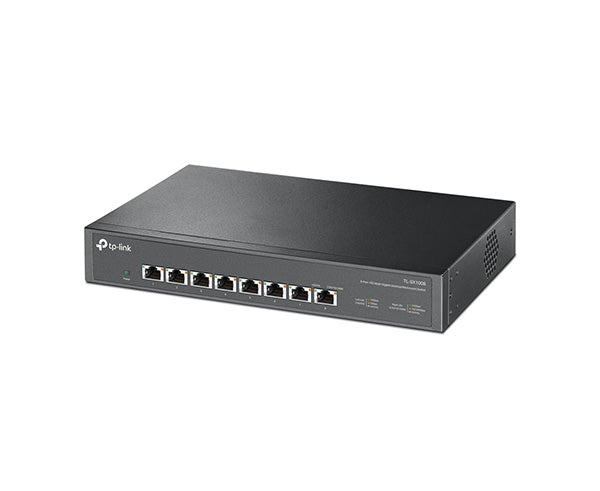

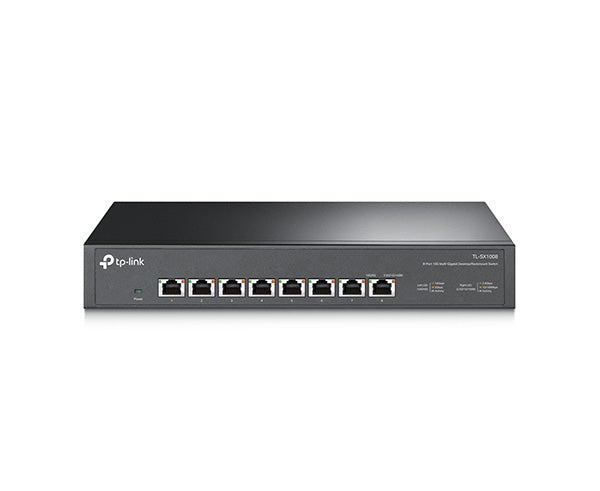

8-Port 10G Desktop/Rackmount Switch

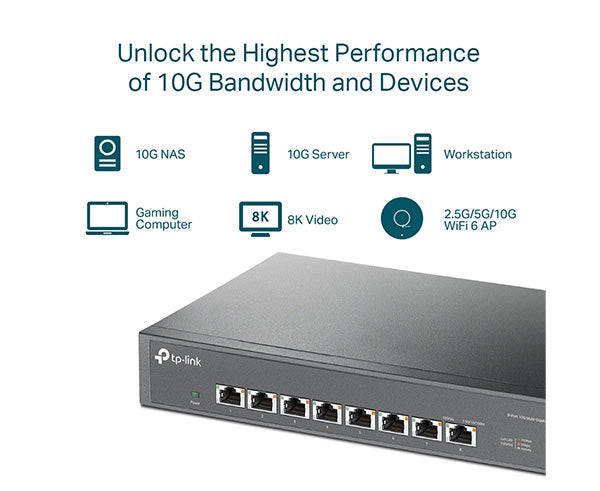

Unlock the Highest Performance of 10G/Multi-Gig Bandwidth and Devices
As the flagship 10G product, TL-SX1008 is an 8-port 10G desktop/rackmount switch, providing up to 160 Gbps of switching capacity. Auto-negotiation 5-speed (100Mbps/1G/2.5G/5G/10G) connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including 10G NAS, 10G server, workstation, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, desktop, and more.
Ready for Immediate Network Upgrading to 10G?
Reliable, lightning-fast connections and the lowest possible latency make it ideal for gaming and small office and home office use.
Lightning-Fast Connections for Business and Home Office
Work at office or home with lightning-fast connections to workstations, desktop computers, and WiFi 6 access points.
-
Unlock the Real WiFi 6
The best option to meet the full bandwidth potential of WiFi 6 access points with 10G wired connections.
-
Instant Transfer for Workstations
Immediately back up and store computer files to NAS storage with increased transfer speeds, never waste time.
Built for Smooth LAN Parties
Never host a laggy LAN party again. Experience the unparalleled speed and lower latency, and prioritize gaming traffic with QoS. Let’s begin the unprecedented smooth game!
Ideal for Home Entertainment Enjoy Buffer-Free 8K Videos
Enjoy buffer-free multi-channel 8K videos with friends and family for movie nights with maximum entertainment.
More 10GE LAN Ports for WiFi 6 Networking
Expand the 10GE LAN ports of your WiFi 6 routers and connect more devices—all running at max 10 Gbps.

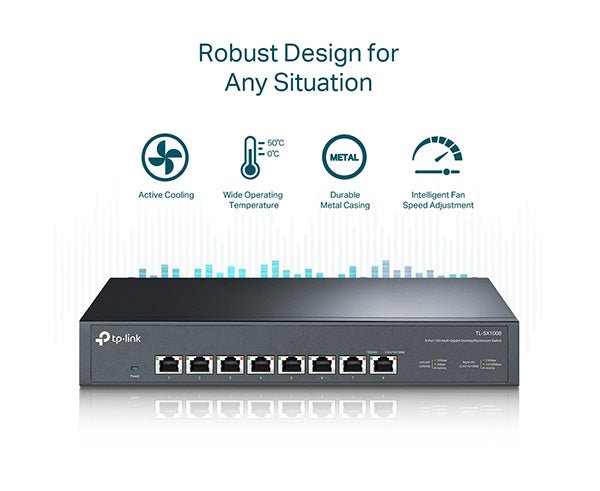

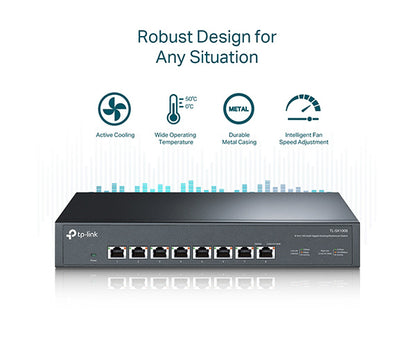

Low-Noise Operation and Robust Design
Intelligent fan speed adjustment ensures minimal noise to be non-distracting when in use. Durable metal casing and a heat dissipating design guarantee a wide operating temperature (0–50 ℃) that make it ideal for virtually any working environment.
Just Plug and Play for Internet Access
A plug-and-play design allows for easy deployment without the need for a technician. Auto MDI/MDIX eliminates the need for crossover cables.
Flexible Deployment Options
The versatile mounting system gives you the flexibility to place the TL-SX1008 on a desktop or mount it in a rack.
Same Cables, New Speed
Designed to integrate flawlessly into existing gigabit Ethernet network infrastructures, guaranteeing speeds 5× faster§ using standard Cat5e Ethernet cables—no Cat6 wiring needed. With Cat6a or higher rated cables, 10G connections are built up to 100 meters (328 feet).
Features
Features
- Eight 10 Gbps Ports. 8× 10-Gigabit ports unlock the highest performance of your 10G/Multi-Gig bandwidth and devices, and provide up to 160 Gbps of switching capacity.
- Lightning-Fast Connections. Provides lightning-fast connections to 10G NAS, Server, 10G PCIe Adapter/ NIC, gaming computer, 2.5G/5G/10G WiFi 6 AP, 8K video, and more.
- Ideal for Various Scenarios. Built for lightning-fast connections in business and home offices, workstations, LAN parties, and home entertainment.
- Optimal 5-Speed Connections. Auto-negotiation for 5-speed (100Mbps/1G/2.5G/5G/10G) connections provide optimal performance.
- Low-Noise Operation. Smart fan speed adjustment ensures minimal noise to be non-distracting when use.
- Wide Operation Temperature. Durable metal casing and a heat dissipating design guarantee a wide operation temperature (0–50 ℃).
- Plug and Play. Allows for easy deployment without the need for a technician.
Specifications
Specifications
| HARDWARE FEATURES | |
| Standards and Protocols |
IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3an, 802.3bz |
|---|---|
| Interface |
8× 100Mbps/1Gbps/2.5Gbps/5Gbps/10Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX |
| Fan Quantity |
1 smart fan with adjustable speed |

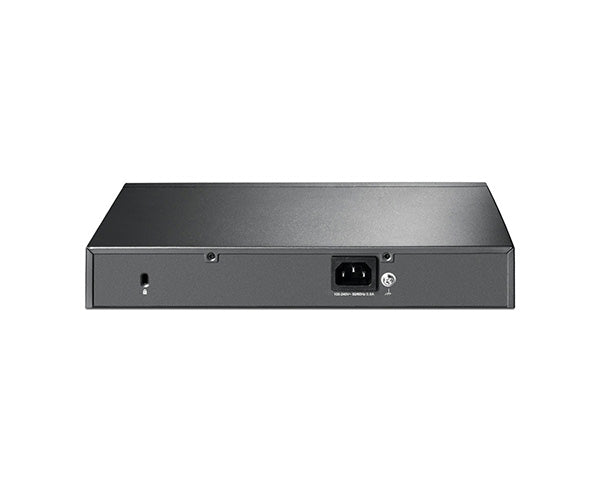

| External Power Supply |
100–240 VAC, 50/60 Hz, 0.8 A |
| LED Indicator |
System Power: 1 |
| Dimensions (W × D × H) |
11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm) |
| Max Power Consumption |
31.2 W |
| PERFORMANCE | |
| Switching Capacity |
160 Gbps |
| Packet Forwarding Rate |
119.0 Mpps |
| MAC Address Table |
32 K entries |
| Packet Buffer Memory |
2 Mb |
| Jumbo Frame |
10 KB |
| SOFTWARE FEATURES | |
| Advanced Features |
802.3X Flow Control |
| Transfer Method |
Store and Forward |
| OTHERS | |
| Certification |
CE, FCC, RoHS |
| Environment |
Operating Temperature: 0–50 °C (32–122 °F) |
What’s In The Box
What’s In The Box
- Qty 1 - 8-Port 10G Multi-Gigabit Desktop/Rackmount Switch (TL-SX1008)
- Qty 1 - Power Cord
- Qty 1 - Installation Guide
- Qty 1 - Rackmount Kit (includes necessary brackets and hardware)
- Qty 4 - Rubber Feet (for desktop installation)
