Description

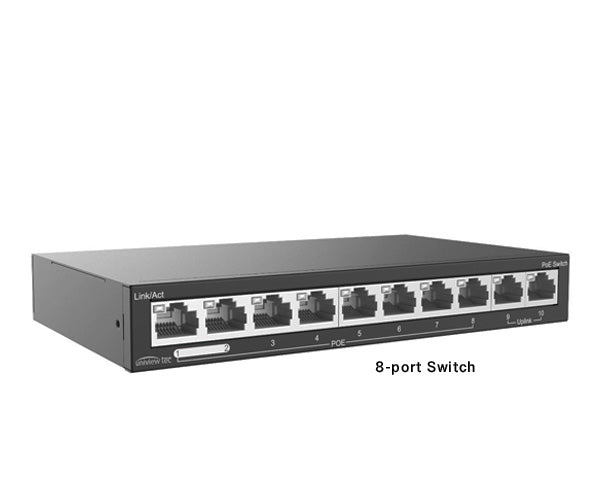

PoE Network Switch
This Power over Ethernet switch is designed to comply with your specifications. Through the PoE function, your security and surveillance equipment will remain fully operative through the connection of a single Category Ethernet cable, safeguarding the transfer of power and transmission, simultaneously.
What Makes this PoE Switch Different?
Normal, Secure, and Surveillance modes enable you to customize the overall functionality of your networking system with 825ft of transmission distance on Extend mode. This switch also has the ability to heighten the versatility of your network, eliminating the concern of an accessible power outlet nearby when it comes to your cameras and other security equipment. Save time and money through continued assurance the capabilities of the PoE Network Switch from Uniview. Also, be sure to see our entire line of Uniview Tec cameras.
Features
Features
- 100Mbps RJ45 PoE ports
- 100Mbps RJ45 Network ports
- Support buffer optimization and port traffic control
- Multiple working modes to address all applications: Normal, Secure and Surveillance
- PoE complies with IEEE802.3af/at, up to 30W for single port
- Up to 825ft (250m) transmission distance on EXTEND mode
- High quality, metal housing
Specifications
Specifications
Maximum PoE PowerMax Capacity: 120W; Max Capacity for single port: 30W
| POE NETWORK SWITCH | |
|---|---|
| Ports | 8 × 1000Mbps PoE ports (RJ45) + 2 × 1000Mbps ports (RJ45) |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching Capacity | 20Gbps |
| Forwarding Performance | 14.88Mpps |
| Packet Buffer | 2Mbit |
| MAC | 2K |
| Dimensions (W × D × H) | 220 × 150 × 44mm (8.7 × 5.9 × 1.7") |
| Weight | <1.24kg (2.73lb) |
| Input Voltage | AC: 100-240V, 50/60Hz |
| Maximum Power | 130W |
| PoE | 802.3at/af |
| Cooling Fans | 1 |
| Operating Temperature | 0°C~40°C (32°F~104°F) |
| Storage Temperature | -40°C~70°C (-40°F~158°F) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
| Indicator | PWR (Green) LNK/ACT (Green) PoE (Orange) |
| Working Mode |
Default (Normal mode): All ports can communicate with each other. VLAN (Secure mode): Downlink ports can communicate only with uplink ports. EXTEND (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |
