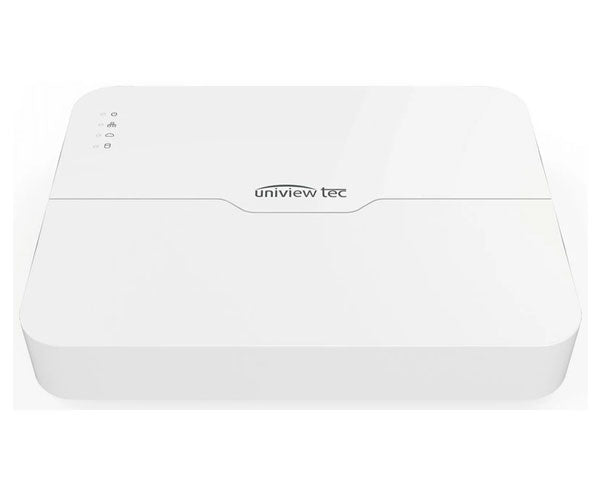

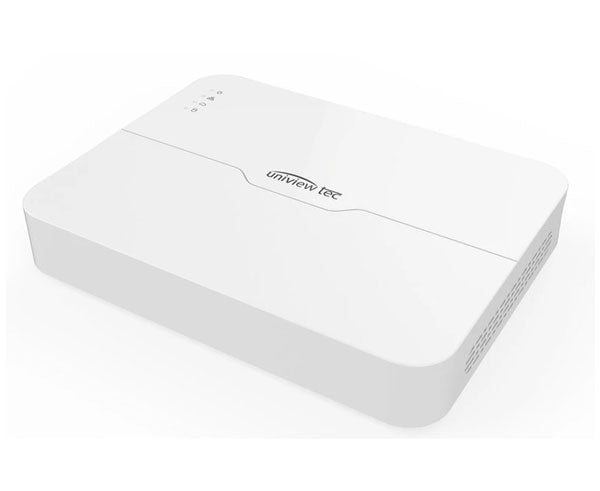

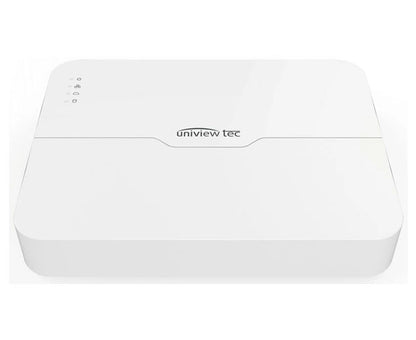

NR08XP - 8MP NVR 8ch x 8 PoE
IP NVRs are power-packed with the latest video surveillance features. To begin with, these security network video recorders have advanced 4K resolution on HDMI output which records everything in crystal clear resolution. These NVRs feature plug-and-play functionality and effortless operation. The premium range of NVRs from Uniview Tec is designed to meet the needs of the modern world. Easy smartphone viewing makes it possible to view your cameras and security footage from anywhere in the world. Our IP network video recorders also support cloud storage of security footage and can automatically detect the latest firmware and upgrades. Besides these, it also supports various panoramic dome camera de-warping modes of live view and playback through GUI and VMS software. There is also an option to add redundant power supply and HDMI-Output decoding cards on these IP NVRs.
Features
Features
- 8ch network recorder with H.265 Compression for Best-in-Class Recording and Storage Performance
- Embedded PoE Switch for all Video Channels Up to 108W
- Supports recording of up to 4k (8MP), 3840 x 2160 Resolution Images
- Display Images up to 4k Resolution on HDMI Output
- Concurrent Mirrored Display on HDMI and VGA Monitor Outputs
- Easy Plug and Play Functionality with Automatic Device Discovery and Display
- Supports 1 SATA HDD up to 10TB
- ONVIF Profile Series Compliant
- Powerful Video Content Analysis Features such as Cross Line Detection, Audio Detection, Scene Change, People Counting
- Supports Cloud Upgrade for NVR and Cameras, with Automatic Detection of Latest Firmware and Upgrades
- Supported by Uniview Tec Guard Station Client Software and Guard Viewer Mobile Apps for iPhone and Android Devices
- Long Range PoE Capability, up to 250M (825ft) with Cat5E or Cat6
- This product is NDAA-compliant
Specifications
Specifications
| VIDEO | |
|---|---|
| IP Camera Input | 8 Channels |
| Video Formats | Ultra 265, H.265, H.264 |
| Recording Video Resolution | 4K (8MP), 3840 x 2160 Max |
| Playback Video Capabilities (fps) | 2 x 4K @ 30, 3 x 5MP @ 30, 4 x 4MP @ 30, 5 x 3MP @ 30, 8 x 1080p @ 30 |
| Monitor Output | 1 x HDMI (4K~720p); 1 x1 VGA (1080p ~720p) |
| Synchronous Playback | 8 Channels |
| NETWORK | |
|---|---|
| Protocols | P2P, UPnP, NTP, DHCP, PPPoE |
| Bandwidth | Incoming – 80Mbps; Outgoing – 64Mbps |
| Remote Users | 128 |
| Video Analytics | Detection: Face, Intrusion, Cross line, Audio, Defocus, Scene Change, Auto tracking, People Counting, Face and Behavior Search |
| GENERAL | |
|---|---|
| Network Interface | 1 – RJ45, 10M/100M, Ethernet |
| USB Interface | Rear panel: 1 x USB2.0, 1 x USB3.0 |
| PoE Interface | 8 – 100Mbps RJ45 ports; IEEE 802.3af/at; Max 30W single port, w/ Max 108W total |
| Audio Interface | 1ch RCA Input / Output |
| Corridor Mode | Record / Playback Multiple Cameras Simultaneously |
| Hard Disk | 1 SATA, up to 10TB |
| Power | 52VDC; 8W Consumption (w/o HDD) |
| Operating Temperature | -10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing) |
| Dimensions (WxDxH) | 10.6 × 8.1 × 1.7 |
| Weight (w/o HDD) | 1.5 lb |
| Conformity Certifications | FCC, CE (UL – Power Supply only) |
Additional Information
Additional Information
If an NVR is sent in for warranty repair with an after-market hard drive and the hard drive is found to be the issue, diagnosis and repair fees may apply.
What's in the Box
What’s in the Box
- Qty 1 - Uniview 8 Channel 8 PoE NVR unit
- Qty 1 - Power Adapter
- Qty 1 - Network Cable
- Qty 1 - USB Mouse
- Qty 1 - Rack Mount Kit
- Qty 1 - User Manual or Installation Guide
- Qty 1 - Protective Packaging (box or bag)
