Description

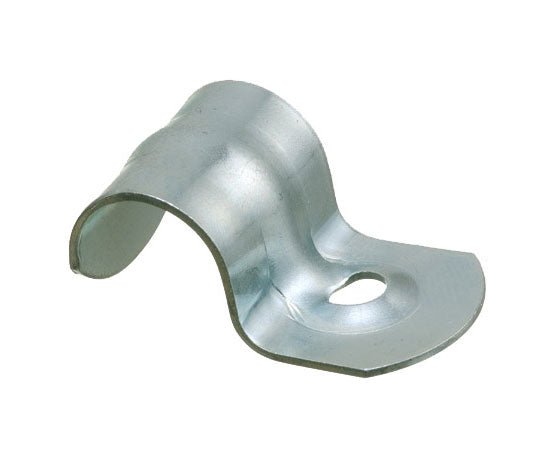

AC/MC Strap, 1-Hole
The C/MC Strap is for quick mounting of AC/MC cable and flexible metal. This strap can be applied to walls and ceilings to quickly secure Armored cable (Type AC) and Metal-clad cable (Type MC) to new construction and remodeling work. As required by NEC Article 330..0, MC cable must be supported and secured at intervals of 6 feet or less.
Specifications
Specifications

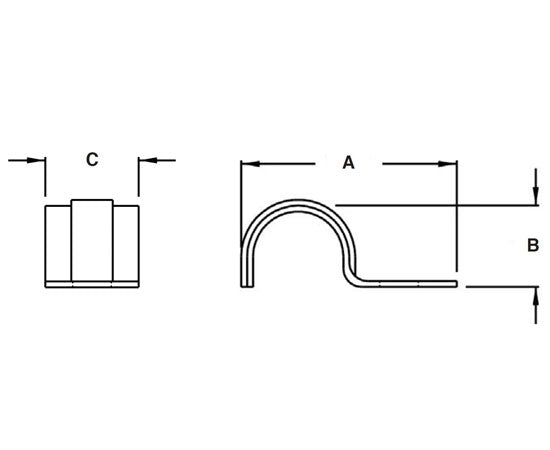

| Part Number | Cable Range | Cable Sizes | Dim A | Dim B | Dim C |
|---|---|---|---|---|---|
| 310 | .503-.580 | 14/4, 14/3, 12/4, 12/3, 10/3, 10/2, 12/2 | 3.5 |
5.25 | 3.75 |

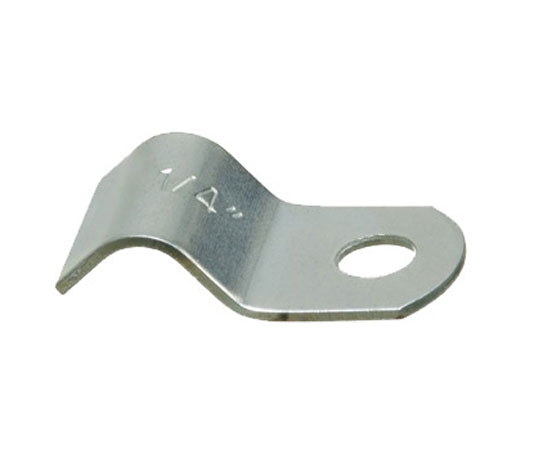

| 311 | .200-.320 | #4 & #2 Bare Copper | 3.5 |
5.25 | 3.75 |
What’s In The Box
What’s In The Box
- Qty 1 pcs - Hole AC/MC Strap
