AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point, PoE

by TP-Link
$69.99
SKU: EAP225-Outdoor
Various lead times may apply to this product. Please contact us for more details.
PoE Capable

Description

AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point, PoE

A dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO2 technology, ensure superior Wi-Fi performance and long-range coverage over 2.4GHz and 5GHz wireless bands. In addition, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.

Superior Wi-Fi Performance and Long-Range Coverage

A dedicated high-power amplifier and professional antennas along with the latest generation 802.11ac Wave 2 MU-MIMO2 technology, ensure superior Wi-Fi performance and long-range coverage over 2.4GHz and 5GHz wireless bands.

Wireless Application Network Map

Seamless Roaming

802.11k and 802.11v help client select access point automatically with the best signal to facilitate seamless transitions when move. This allows streaming communication like VoIP and video conferences uninterrupted.

Specially Designed Weatherproof Enclosure for Outdoor Environment

Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.

    • 4KV Lightning Protection and 15KV ESD Protection
    • No Ingress of Dust
    • Water Proof Enclosure

Excellent Hardware Designs

With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.

Detachable Antennas

EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.

Delicate Appearance Even Better for Indoor Applications

EAP225-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)

Multiple PoE Options for Easy Installation

EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.

Flexible Deployment

EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided.

Cloud Centralized Management - Anytime, Anywhere

Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Features

Features

  • Durable, weatherproof enclosure for outdoor Wi-Fi applications
  • Up to 1200Mbps1 with 2×2 MIMO technology
  • Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
  • Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
  • High transmission power and high gain antennas provide a long-range coverage area
  • Cloud centralized management and Omada app for ultra convenience and easy management
  • Captive portal provides a convenient method for guest authentication
  • Facebook Wi-Fi and SMS authentication help to boost your business
  • 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation

Specifications

Specifications









HARDWARE FEATURES
Interface 1 x Gigabit Ethernet RJ45 Port
Button  Reset
Power Supply 802.3af PoE and 24 Passive PoE(PoE injector included)
Dimensions (W x D x H) 8.5 x 1.8 x 1.1 in (215 x 46 x 27mm)
Antenna  2.4GHz: 2 × 3dBi
5GHz: 2 × 4dBi
Weatherproof Enclosure IP65
Mounting  Pole/Wall mount (mounting kit included)
WIRELESS FEATURES
Wireless Standards IEEE 802.11a/b/g/n/ac
Frequency 2.4 GHz, 5GHz
Signal Rate 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 5.5, 11Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Wireless Functions Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
Airtime Fairness
Beamforming
Band Steering
Load Balance
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
Transmission Power CE: <20 dBm (2.4 GHz, EIRP), <27 dBm(5 GHz, EIRP)
FCC: <23 dBm (2.4 GHz), <22 dBm(5 GHz)
MANAGEMENT FEATURES
Omada App Yes
Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Controller Software Yes
Cloud Access Yes, Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller
Email Alerts Yes
Management MAC Access Control Yes
SNMP v1, v2c
System Logging Local/Remote Syslog Yes
SSH Yes
Web-based Management Yes
L3 Management Yes
Multi-Site Management Yes
Management VLAN  Yes
Zero-Touch Provisioning Yes, Requiring the use of the Omada Cloud-Based Controller
GENERAL
Certification FCC, RoHS
Package Contents AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
Passive PoE Injector
Power Cord
Mounting Kits
Installation Guide
Waterproof Rubber Insert
Waterproof Antenna
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux
Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Installation Information

Installation Information

How to manage TP-Link EAPs centrally via the Software Controller


How to set up a TP Link EAP via your mobile phone


How to manage TP-Link EAPs centrally from a remote place via a web browser


A Quick Overview of EAP Management Methods

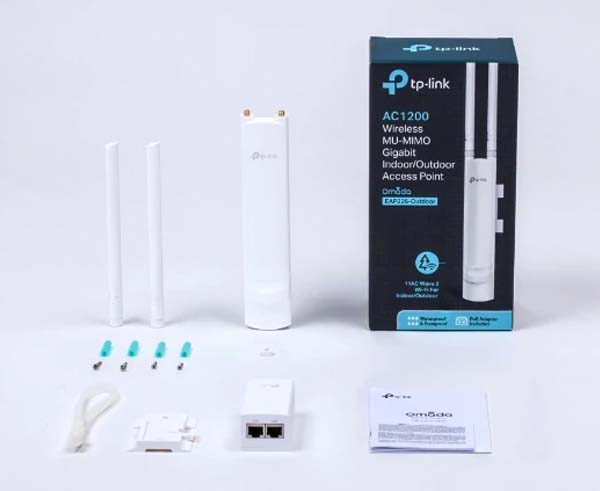

What's In The Box

What's In The Box

  • (1) - Wireless Access Point
  • (1) - Power supply unit
  • (1) - Passive PoE Power Injector
  • (1) - Mounting Kit
  • (1) - Quick Installation Guide
  • (1) - Waterproof Rubber Insert
  • (1) - Waterproof Antenna
