AC750 Wi-Fi Range Extender

by TP-Link
$29.99
SKU: RE220
Various lead times may apply to this product. Please contact us for more details.

Description

AC750 Wi-Fi Range Extender

The RE220’s wireless AC technology creates faster and stronger Wi-Fi connections across your home for all your devices. Dual 2.4 GHz and 5 GHz bands provide Wi-Fi connections for up to 20 devices, allowing you to enjoy a stable Wi-Fi experience on all your devices.

Boost Your WiFi Network

Place the RE220 between your wireless router and wireless devices, expanding Wi-Fi coverage while eliminating Wi-Fi dead zones with dual-band Wi-Fi speeds that can reach up to 750 Mbps. Make the most of your ISP speeds by streaming HD videos, gaming online and other bandwidth-intensive tasks.

Wireless Application Network Map

Simple Two-Step Setup

Step 1: Press the WPS button on the router and RE220 to easily connect the extender to the network. Or connect the extender via Tether app or Web UI if your router doesn’t support WPS.

Step 2: Relocate the extender to a better location for optimal Wi-Fi coverage with the help of the smart signal indicator light.

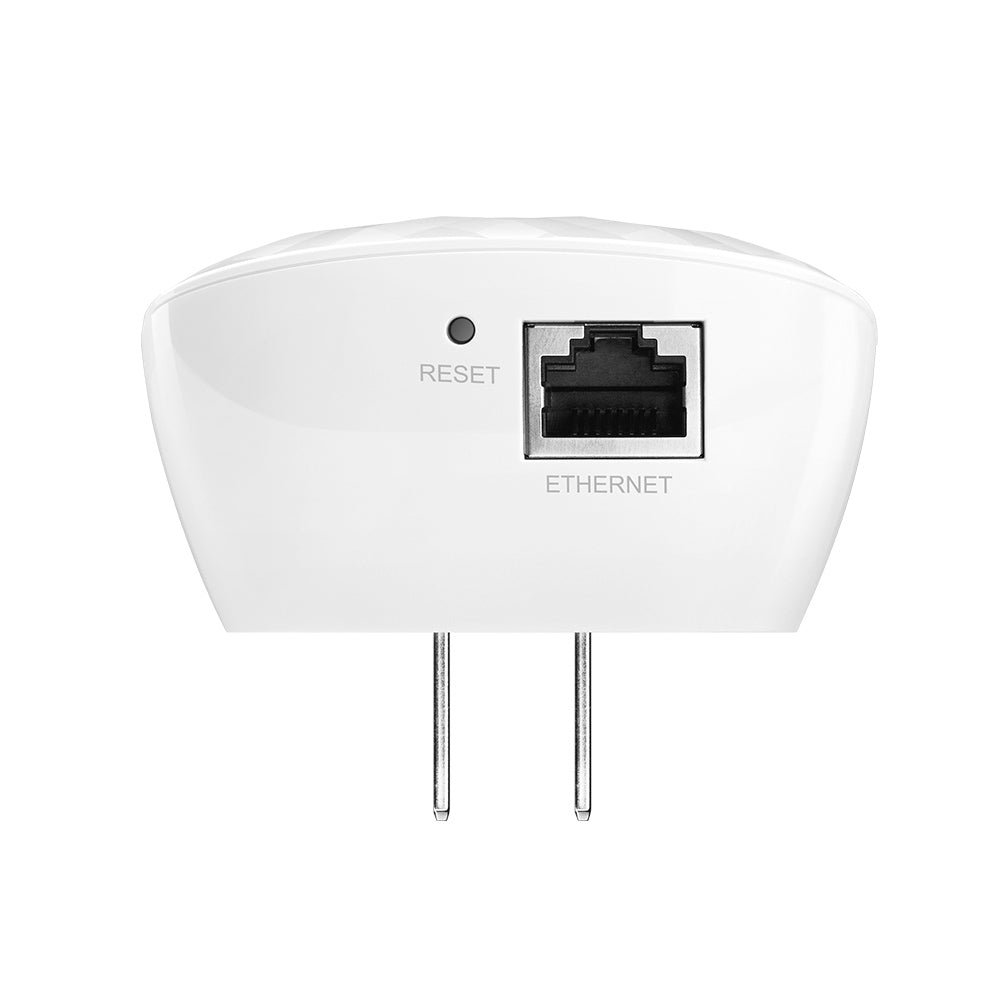

An Access Point and Wireless Adapter

The Ethernet port of RE220 can easily turn your wired Internet connection into a wireless access point. It can also function as a wireless adapter to connect wired devices.

High Speed Mode for Maximized Performance

High Speed Mode uses one dedicated Wi-Fi band as backhaul and another dedicated Wi-Fi band as an access point to maximize the bandwidth on extender's Wi-Fi.

Universal Compatibility

The RE220 is compatible with any of your existing Wi-Fi router or access points, making it easy to expand and strengthen your Wi-Fi network.

Features

  • Boosts wireless signal to previously unreachable or hard-to-wire areas flawlessly
  • Compatible with 802.11 b/g/n and 802.11ac Wi-Fi devices
  • Dual band speeds up to 750Mbps*
  • Miniature size and wall-mounted design make it easy to deploy and move flexibly
  • Ethernet port allows the Extender to function as a wireless adapter to connect wired devices

Specifications




HARDWARE FEATURES
Interface USB 2.0
LED Status
Dimensions (W x D x H) 1.6 x 0.7 x 0.3 in (41 x 19.5 x 8.7mm)
Antenna Type Omni Directional
WIRELESS FEATURES
Wireless Standards  IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 5GHz
2.4GHz
Signal Rate 5GHz
11ac: Up to 433Mbps(dynamic)
11n: Up to 150Mbps(dynamic)
11a: Up to 54Mbps(dynamic)
2.4GHz
11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 5GHz:
11a 6Mbps: -94dBm
11a 54Mbps: -78dBm
11n HT20 MCS0: -94dBm
11n HT20 MCS7: -77dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -74dBm
11ac VHT80 MCS0: -89dBm
11ac VHT80 MCS9: -64dBm
2.4GHz:
11b 1Mbps: -99dBm
11b 11Mbps: -91dBm
11g 6Mbps: -94dBm
11g 54Mbps: -77dBm
11n HT20 MCS0: -95dBm
11n HT20 MCS7: -76dBm
11n HT40 MCS0: -92dBm
11n HT40 MCS7: -73dBm
Transmit Power <20dBm (EIRP)
Wireless Modes Ad-Hoc / Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM
GENERAL
Certification FCC, RoHS
Package Contents Wireless Adapter Archer T2U
Resource CD
Quick Installation Guide
System Requirements Windows & MacOS
Environment

Operating Temperature: 0℃~40℃ (32℉~104℉)

Storage Temperature: -40℃~70℃ (-40℉~158℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Installation Information

How to Setup a TP-Link Range Extender via the Tether App (2019)


How to setup a TP-Link Range Extender -WPS- (2018)


How to setup a Range Extender -Web- (2019)


What's in the Box

  • (1) - Wi-Fi Range Extender
  • (1) - RJ45 Ethernet Cable
  • (1) - Resource CD
  • (1) - Quick Installation Guide
