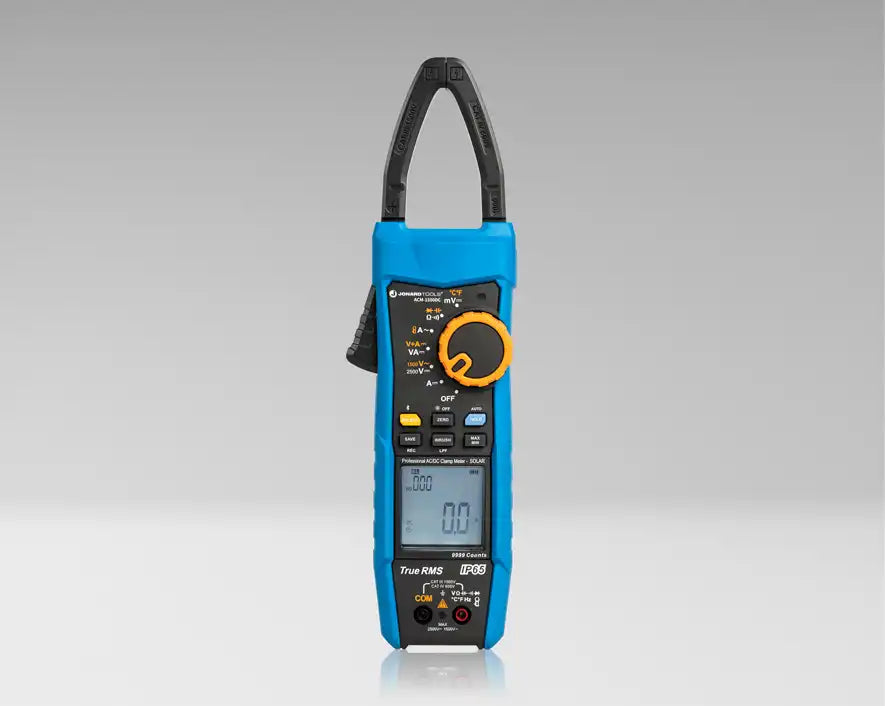

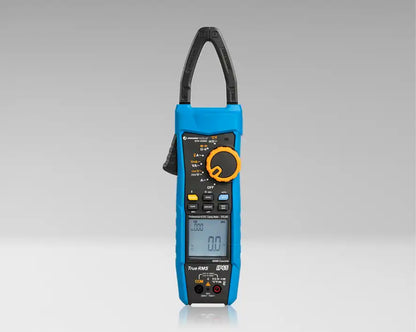

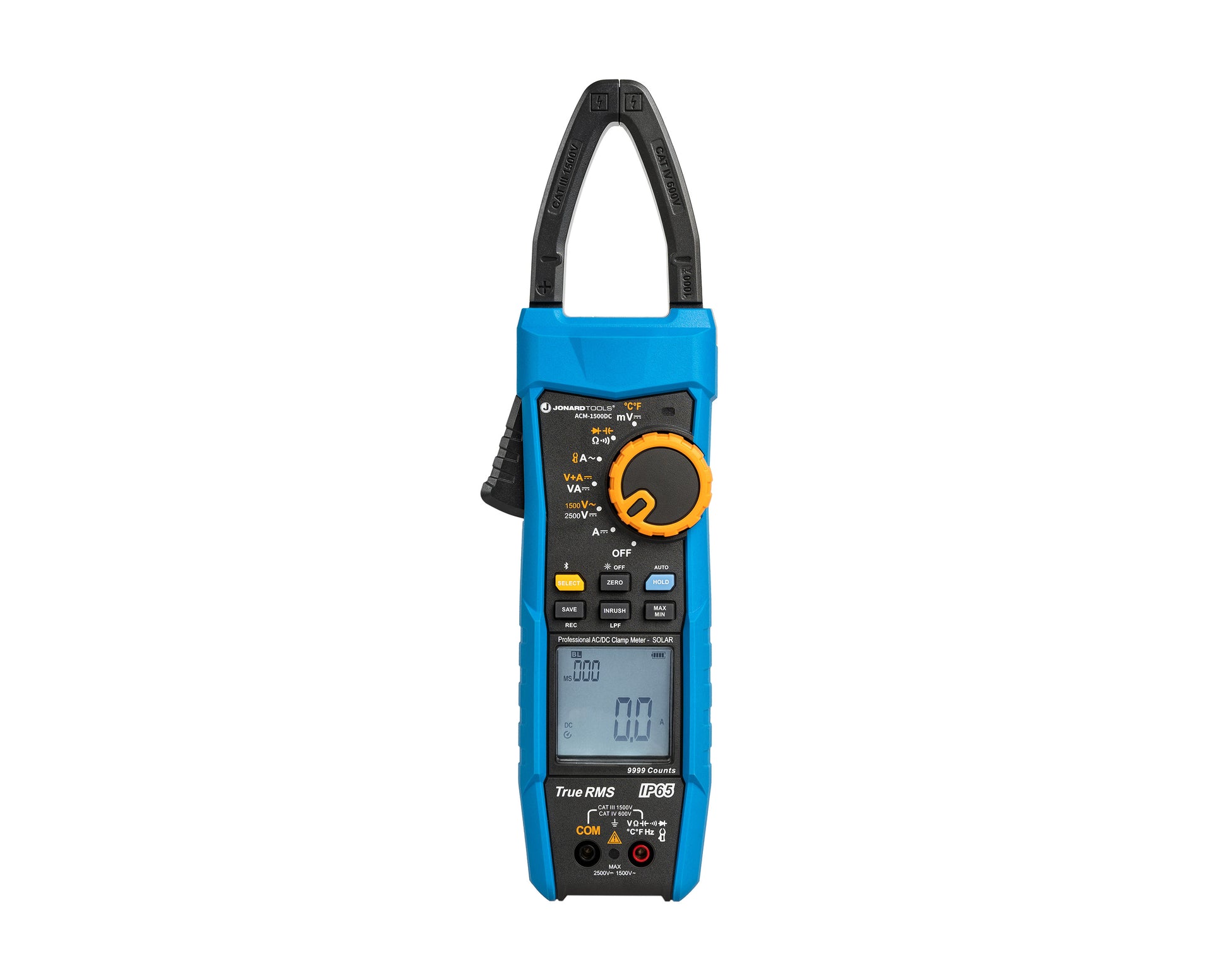

Solar+ Clamp Meter CAT III 1500 V

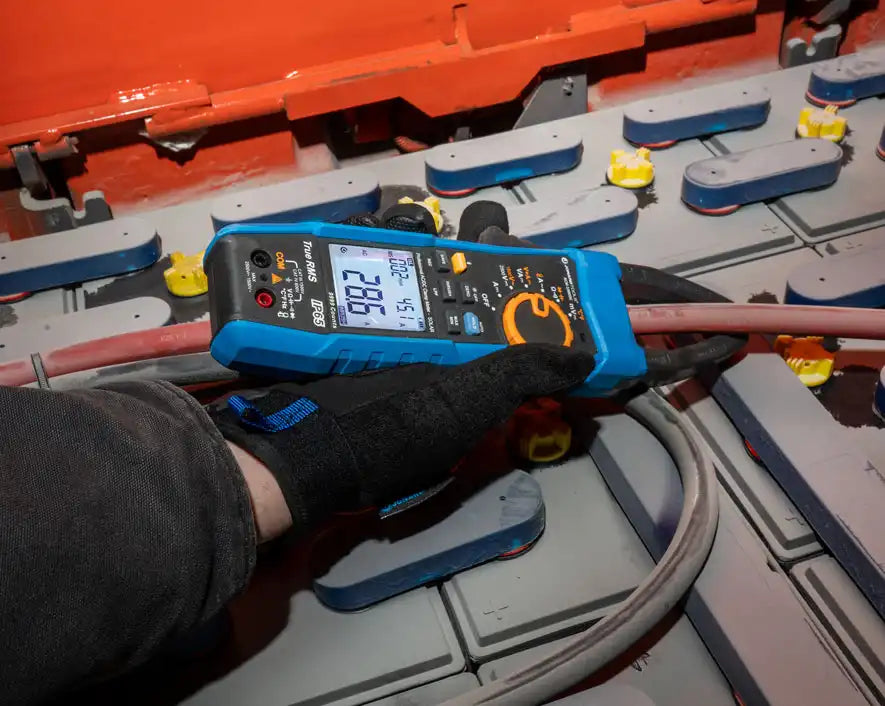

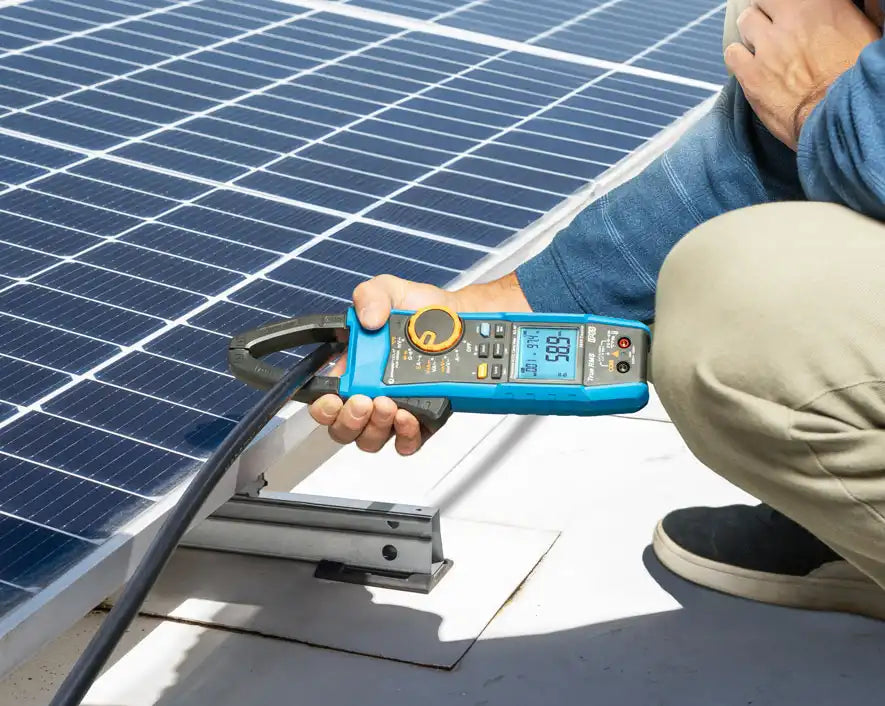

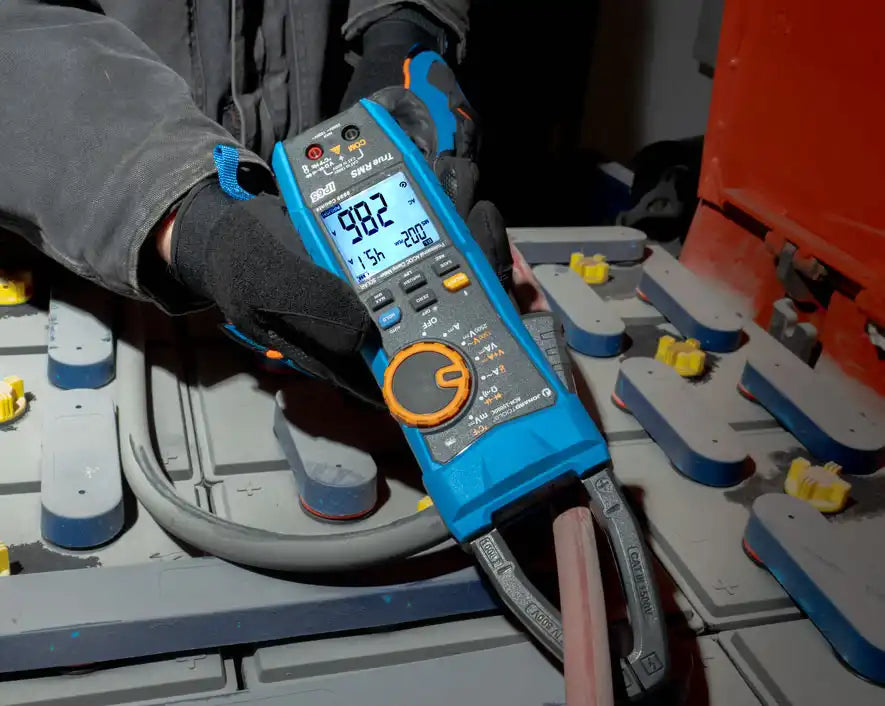

Elevate your high voltage DC work with the Jonard ACM-1500DC CAT III 1500 V True-RMS Clamp Meter. This versatile device is tailor-made for professionals working in solar arrays, wind power farms, electric railways, data centers, and uninterruptible power supplies. It excels in precision, measuring up to 2500 V DC, 1500 V AC, and up to 999.9 A DC or AC through the clamp jaws. The slim jaw design ensures access to even the most congested combiner boxes, and the test leads are CAT III 1500 V DC rated for peace of mind.
Features
Features
- Measures up to 2500 V DC and 999.9 A DC or AC through its slim tip clamp jaws
- CAT IV 600V, CAT III 1500V, Class 2, Double Insulation Safety Rating to protect from electrical shocks

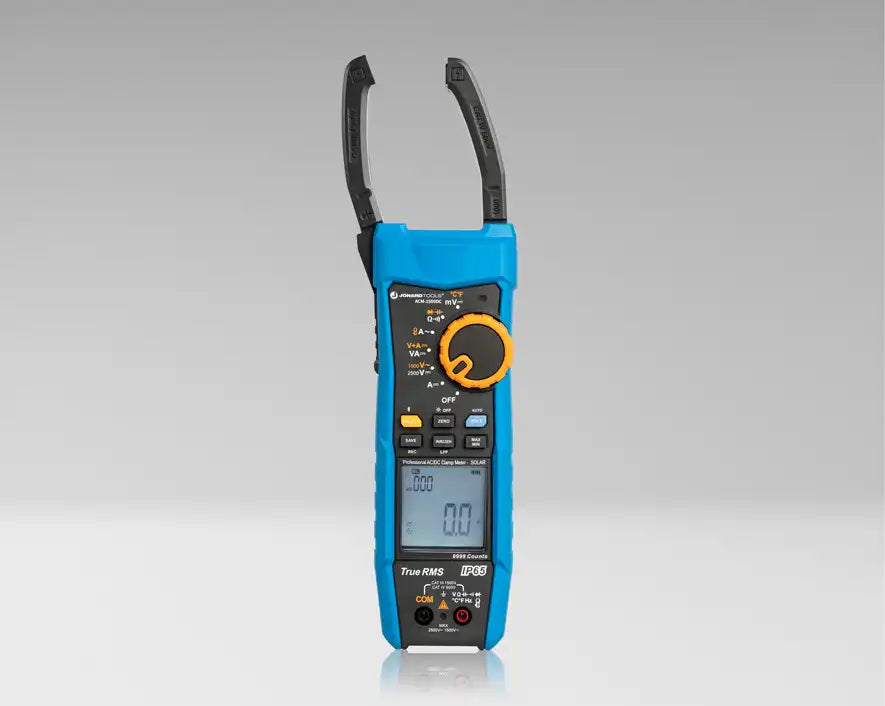

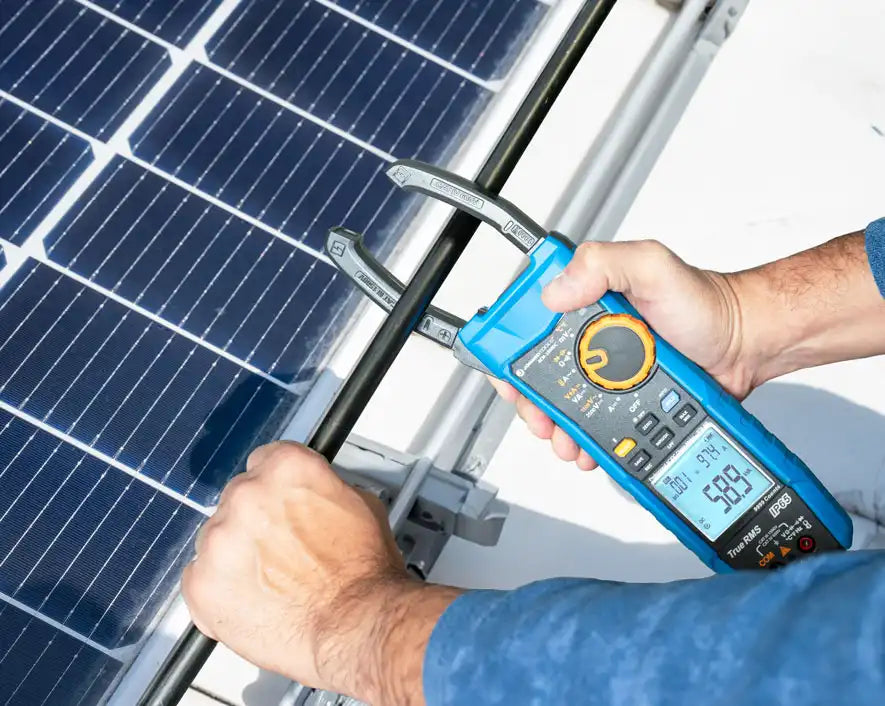

- Jaw opening is perfect for cables, such as solar cables, whose conductors are a maximum of 1.38" (35 mm) in diameter
- Test results can be saved onto onboard storage and can be transferred via Bluetooth
- IP 65 rating for dust and water resistance for ultimate protection while working outdoors
Specifications
Specifications
| Max AC Current | 999.9 A |
| Max DC Current | 999.9 A |
| Max AC Voltage | 1500 V |
| Max DC Voltage | 2500 V |
| Power (DC) | 999.9 kVA / 2500 kVA |
| Resistance | 999.9 Ω / 9.999 kΩ / 99.999 MΩ |
| Capacitance | 100.0 µF / 1000 µF |
| Temperature | -40 °C ~ 400 °C / -40 °F ~ 752 °F |
| Jaw Opening | 35 mm |
| Overvoltage Category | CAT III 1500 V / CAT IV 600 V |
| Bluetooth App | BT 5.0 |
| Inrush Current | ✓ |
| PEAK | ✓ |
| LPF | ✓ |
| True RMS | ✓ |
| Dimensions | 12.25 in x 5.2 in x 2.5 in (31.12 cm x 13.21 cm x 6.35 cm) |
| Weight | 2.04 lb (924.344 g) |
| UPC # | 810132435454 |
Additional Information
Additional Information
| First Look: Is Jonard's Solar Clamp Meter (ACM-1500DC) the Best Tool for Solar Pros? |
|---|
What's In The Box
What's In The Box
- Qty 1 - Solar+ Clamp Meter CAT III 1500 V
