Dual Gang Adjustable Depth Mounting Bracket - New Construction

Sale
Original price $5.63
Current price $1.82
SKU: LVA2
Size

Description

UL Listed Made in USA

Description

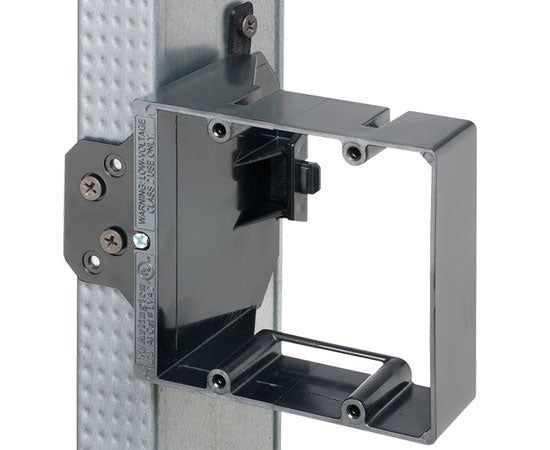

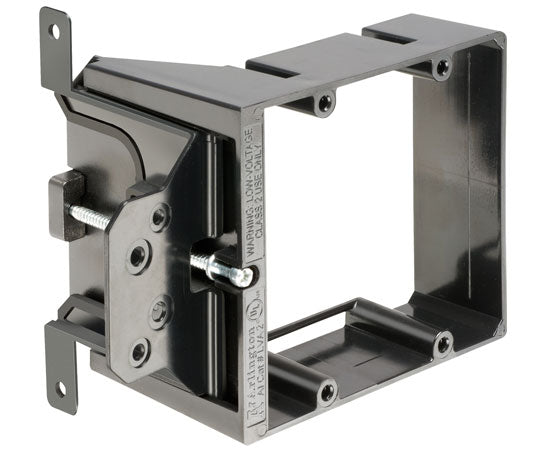

Dual Gang Adjustable Depth Mounting Bracket

Our adjustable mounting bracket is perfect for low-voltage installations when the final wall thickness is unknown. The depth adjustment screw is always accessible for adjustments before or after the wall is complete. This product is easy to install and is constructed from premium durable plastic. Adjusts from 1/2" up to 1-1/2" & supports mounting to wood or metal Studs.

Features

Features

  • Easy to install... great-looking installation
  • Set for a 1/2" thick wall finish, they adjust to accommodate a finished wall up to 1-1/2" thick.
  • Support tabs deliver extra-secure mounting of the bracket to wood or steel studs in new construction

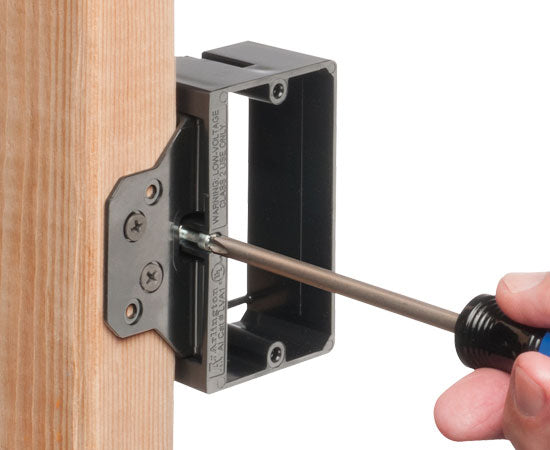

  • The depth adjustment screw is always accessible for adjustments to the final wall finish thickness...before or after the wall is done
  • Available in single-gang & dual-gang

Specifications

Specifications

LVA1 LVA2
Width 3.720" 3.720"
Height 3.656" 5.468"
Weight 0.178 lbs 0.202 lbs
Color Black Black
Material Plastic Plastic
Depth adjustment Adjusts from 1/2" up to 1-1/2" Adjusts from 1/2" up to 1-1/2"
Stud Type Supports Mounting to Wood or Metal Studs Supports Mounting to Wood or Metal Studs
Wire Type Class 2 Low-Voltage Wiring Class 2 Low-Voltage Wiring
UPC 018997097507 018997097514


Additional Information

Additional Information

Adjustable Depth Mounting Brackets(LVA1, LVA2) Video

What's In The Box

What’s In The Box

  • (1) Single-gang Adjustable Box
  • (1) NM95 Cable Connector
  • (2) NM942 Cable Connectors
  • (1) NM900 Snap-In Blank
