Press Fit Reed Switch Adjustable Screw Plunger/Push Button Switch, Closed Loop, 3/8" w/ Screw Terminals - 10 Pack

by GRI
$47.20
SKU: AL-GRI-3020-WH
Various lead times may apply to this product. Please contact us for more details.

These products are all Made to Order

Which means they are non-cancelable and non-refundable
UL Listed Made in USA

Description

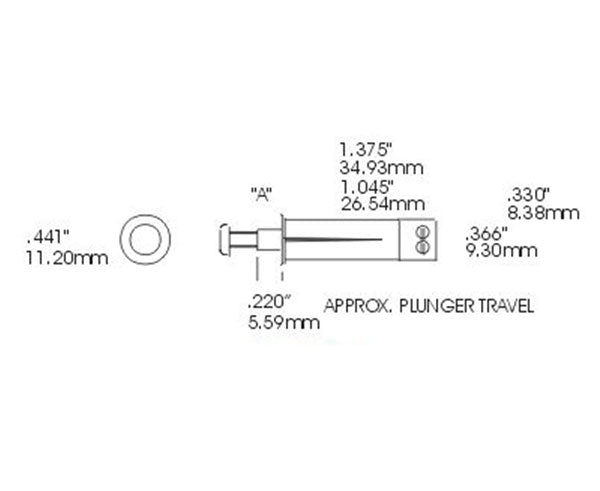

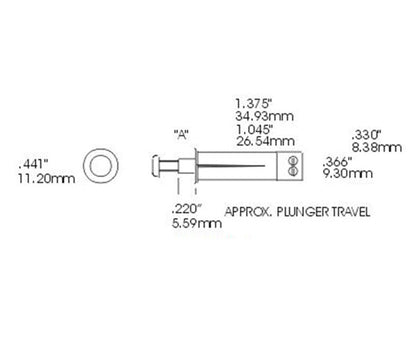

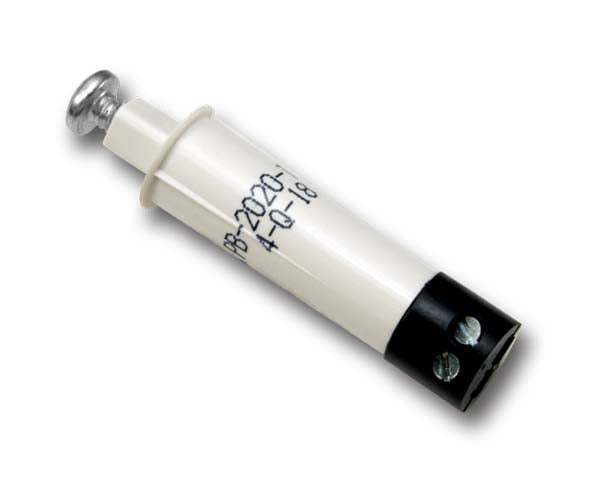

Press Fit Reed Switch Adjustable Screw Plunger/Push Button Switch, Closed Loop, 3/8" w/ Screw Terminals - 10 Pack

The 3/8" diameter plunger switch series is a unique switch package, designed to incorporate a plunger or push-to-activate function into the shortest, most compact package available. Promoted as a solution to securing the newest generation of vinyl extruded or custom type windows, installation requires that a single hole be drilled, usually into the window frame, eliminating the troublesome and potentially costly hole in the window sash.

Available as a press fit with an adjustable plunger, this 3/8" push button may be the most versatile reed switch to date.

Note: Closed Loop or "normal closed" means the switch is closed when magnet is in close proximity.

Features

  • Adjustable Screw Plunger
  • Closed Loop
  • Press Fit 3/8” Diameter
  • Screw Terminals
  • Single Drill Hole
  • UL Listed
  • Made In U.S.A.
  • Color: White

Specifications

Technical Specs:

Loop Type Closed
Electrical Config: N/O
Reed Form A
Maximum Intitial Contact Resistance (Ω) .150
Maximum Contact Rating (W) 10
Maximum Switching Voltage (VDC) 200
Maximum Switching Current (A) .500
Travel Total .250
Pre Travel .110 ± .040

Additional Information

Additional Information

Installation Instructions:

Installation requires that a single 3/8" hole be drilled, usually into the window frame, eliminating the troublesome and potentially costly hole in the window sash. Make certain to properly adjust screw plunger prior to complete closing of window. Improper initial adjustment of screw could cause damage to the switch, resulting in a malfunction.

Measure gap from the mounting surface. Press plunger down on the switch and adjust screw so distance between top of screw and the mounting surface is 1/32" (.0312) less than gap. If gap is 3/16" or less, remove adjusting screw. Determine maximum plunger extension PRIOR to closing window or protected opening. Improper initial adjustment of screw could cause damage to the switch.

Press Fit Plunger Switch Installation

Caution: For best performance, it is recommended that the installer slightly over drill the hole for the switch and make certain hole is free of debris. If the hole is too tight, it can interfere with operation of the switch. Do NOT paint the switch or spray or apply any lubricating material to this switch. Lubricants tend to collect dust, sand and other small items of debris. Any lubricant applied to the plunger switch will obstruct or at least hamper the performance. This switch is not recommended for the bottom track of windows or sliding doors.

What's In The Box

  • 10 x Push Button Plunger Switches
