Tight Buffer Distribution Plenum Fiber Optic Cable, Multimode, OM1, Indoor

by AFL
$0.56
SKU: CP0066441201
Strand Count

If you’re looking to purchase more than one spool then each spool needs to be entered into the cart as a separate line item. Input the length and then select Add to Cart for every individual spool needed.

Various lead times may apply to this product. Please contact us for more details.
Made in USA UL Listed RoHS Compliant

(We do not offer credits or returns for this item.)


Base price is the per foot price. If you do not see the length of fiber cable you are looking for or if you would like to inquire about our custom fiber cable options such as terminated ends, pulleyes, and custom cut lengths, please call or email us.

Description

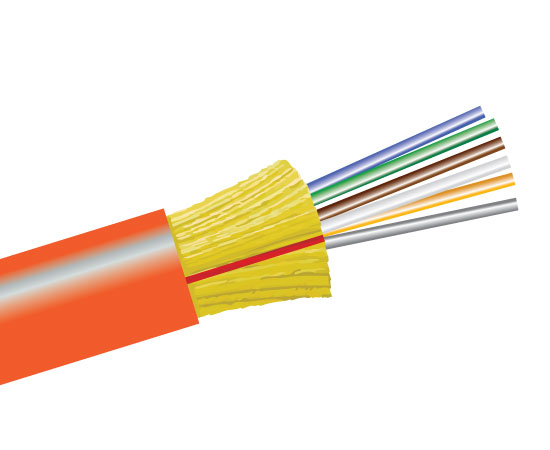

AFL Distribution Bulk Fiber, Multi-Mode OM1, 62.5/125, OFNP Plenum Rated, Indoor, Tight Buffer

Single unit Circular Premise Cable designs allow for excellent packaging density, flexibility, and ease of routing. Buffered to 900µm, these cables can be directly terminated into connectors in loaded panels or in communication closets.

With an overall OFNP (Plenum) rating, this cable is suitable for installations in most spaces requiring UL flame ratings: Plenum, Riser, General Purpose.

Features

  • Tested to meet or exceed EIA/TIA 568-A / GR-409-CORE
  • Compliant to Directive 2002/95/EC (RoHS)
  • Mixed fiber designs available

Applications

  • Connectorized communications cables with both send-and-receive and backups in a single unit
  • Routing between communications closets and equipment rooms
  • Intrabuilding backbones

Specifications

Additional Information

Multimode Fiber Information

Multi-Mode cable commonly has a diameter in the 50-to-100 micron range (typical multimode fiber core diameters are 50 or 62.5 micrometers). Multimode fiber gives you high bandwidth at high speeds (10 to 100MBS - Gigabit to 275m to 2km) over medium distances. Light waves are dispersed into numerous paths, or modes, as they travel through the cable's core typically 850 or 1300nm. However, in long cable runs (greater than 3000 feet [914.4 meters), multiple paths of light can cause signal distortion at the receiving end, resulting in an unclear and incomplete data transmission so designers now call for single mode fiber in new applications using Gigabit and beyond.
