AFL XFM Fiber Patch Panel, Slide-Out, 2U, 6 Adapter Panel Capacity

by AFL
SKU: FM002712-BE
Various lead times may apply to this product. Please contact us for more details.
Made in USA
Adapter panels are NOT included
This fiber patch panel is compatible with LGX adapter panel inserts and AFL splice trays. To find out more, give us a call or email us.


AFL XFM Fiber Patch Panel, Slide-Out, 2RU, Holds 6 Adapter Panels, Up to 144 Fibers, Steel, Black

The Xpress Fiber Management™ (XFM) 2U patch panel is a rack mountable interconnect point specifically designed to manage dense fiber applications. Based on the LGX™ intermateability platform, the panel is fully compatible with AFL™s XFM Optical Cassette, Passive Optical Coupler Modules, and Poli-MOD solutions. This panel offers enhanced management of densities up to 144 fibers using MTP-LC XFM Optical Cassettes (24 fibers).


  • Steel construction
  • Textured black powder coat finish
  • Universal WECO/TIA 19"/23" rack compatibility
  • (6) LGX 118 adapter plate / module mounting positions

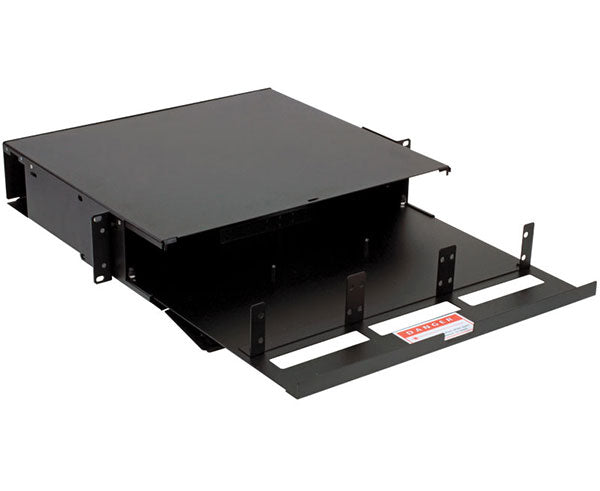

  • Slide-out tray with relief cut-outs for simplified connector access

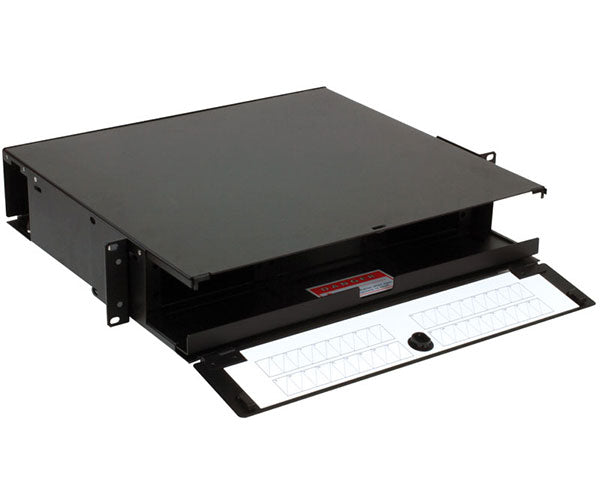

  • Optional front door key lock for heightened protection of internal components (sold separately)
  • Data Centers
  • Enterprise Networks
  • Telecommunications Closets
  • Central Offices / Headends



Panels: (6) LGX Adapter Panels (Sold Separately)


    Depth: 15.5"
    Height: 3.5"
    Width: 17"
    Unloaded Weight: 15 lbs

      Physical Properties

      Color: Black
      Material: Steel
