Description

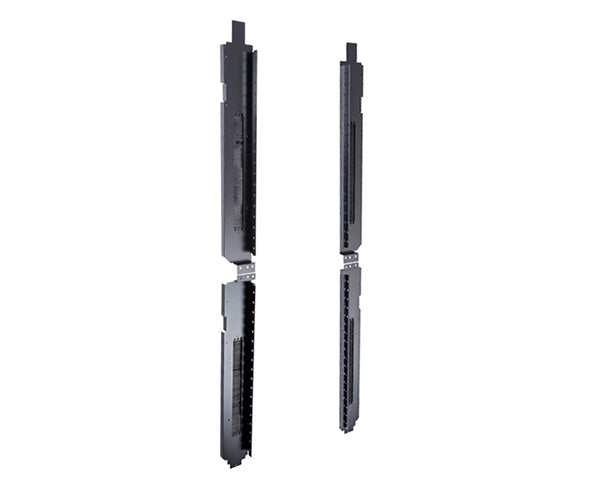

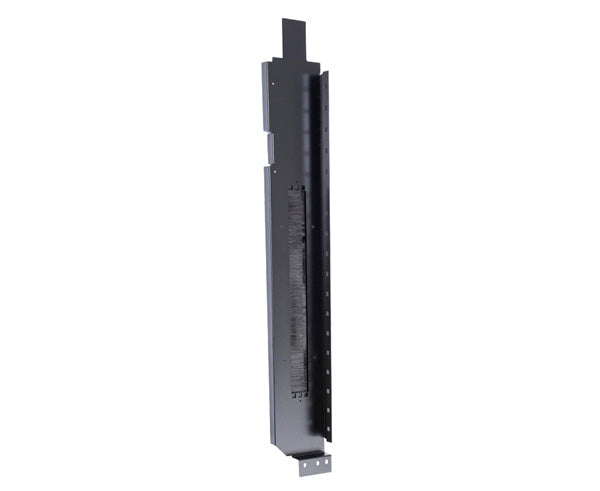

Air Dam Kit w/ Brush Pass-Through, 42U, 45U, 48U, 52U
Primus Cable Air Dams provide a cabinet-level containment solution to improve the efficiency of your cooling system. Our air dams are constructed of cold rolled steel panels that prevent hot air from re-circulating to the front of the cabinet, and each panel includes a brush opening to provide front-to-back cable routing.
Compatible with 31.5” wide network cabinets, these air dams are constructed from black powder-coated cold rolled steel and come equipped with brush panels. The brush panels allow for efficient cable management and can be replaced with 1U patch panels to provide additional connectivity capacity. They are available in 42U, 45U, 48U, and 52U sizes to suit various cabinet configurations.
Features
Features
- Compatible with 31.5” wide network cabinets
- Powder coated cold rolled steel (black) with brush panels
- Brush panels can be replaced with 1U patch panels for additional connectivity capacity
- Available in 42U, 45U, 48U, 52U
Specifications
Specifications
|
Air Dam Kit w/ Brush Pass-Through |
|
|---|---|
|
Product Type |
Air Dam Kit |
|
Base Material |
Steel |
|
Top Panel |
Expandable |
|
Rack Unit Quantity |
42U, 45U, 48U, 52U |
|
Cable Pass-Through Openings |
Yes |
|
Compatibility |
31.5" W Network Cabinets |
|
Quantity Per Package |
1 (Sold Individually) |
What’s In The Box
What’s In The Box
- Qty 1 - Air Dam Kit w/ Brush Pass-Through
