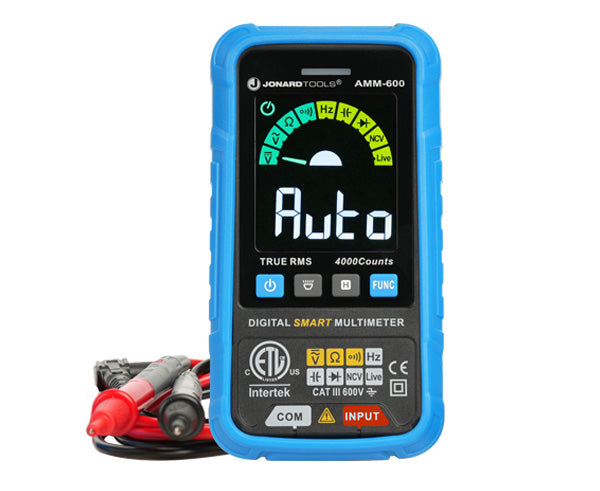

600V Automatic Intelligent Digital Multimeter
The intelligent, auto-function voltmeter is capable of gauging both the required range and function based on the test lead input, providing a simple experience and accurate results. Simply plug in the leads and connect them to your test subject, letting the AMM-600 take the guesswork out of testing.
Features
Features
- Tests AC and DC voltage, resistance, capacitance, frequency, diode, duty cycle, continuity, automatic current input detection, live testing, non-contact voltage detection (NCV)
- Provides maximum/minimum/average readings, relative measurements
- CAT III 600V, Class 2, Double insulation safety rating

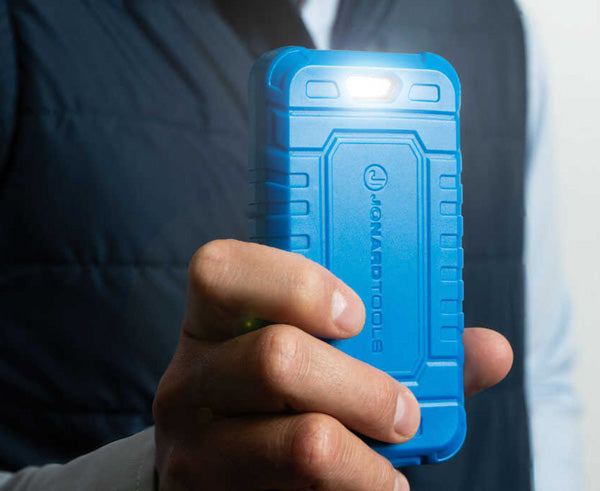

- Backlit display for low light, and highlight environments
- Unique design with grooved housing for superior grip

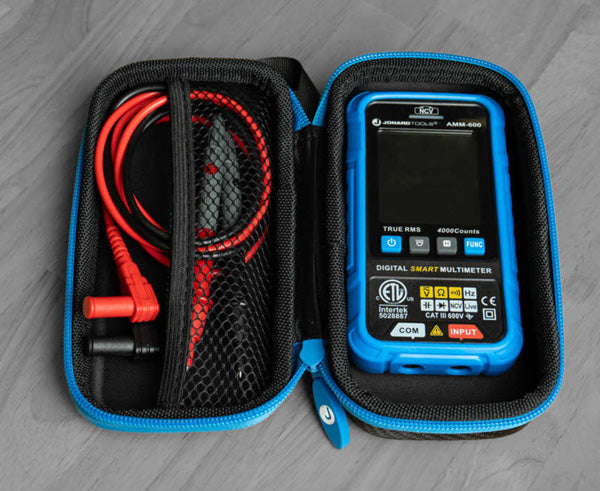

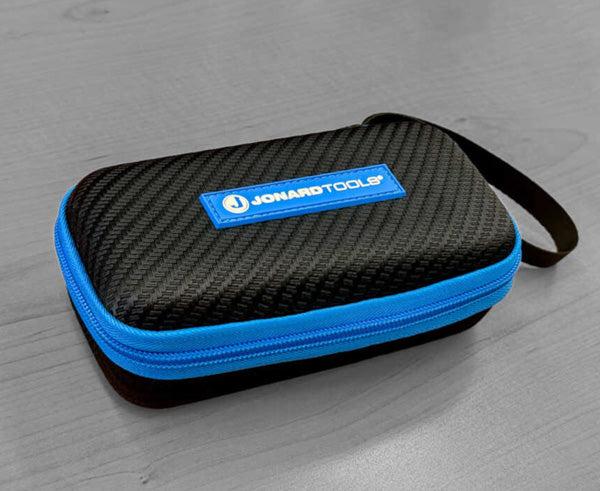

- Includes hard carrying case
Specifications
Specifications
| PRODUCT SPECIFICATIONS | |
| AC voltage | 600V |
| Resistance | 400Ω-40MΩ |
| Capacitance | 4nF-40mF |
| Frequency | 4Hz-4MHz |
| Counts | 4000 |
| Overvoltage Category | CAT III 600V |
| Dimensions | 6.7 in x 3.6 in x 2.45 in (17.02 cm x 9.14 cm x 6.22 cm) |
| Weight | 0.73 lb (333.236 g) |
| UPC # | 810053359525 |
Additional Information
Additional Information
600V Automatic Intelligent Digital Multimeter Meter Product Video |
600V Automatic Intelligent Digital Multimeter Instructional Video |
What's in the Box
What's in the Box
- QTY1 - AMM-600, 600V Automatic Intelligent Digital Multimeter
