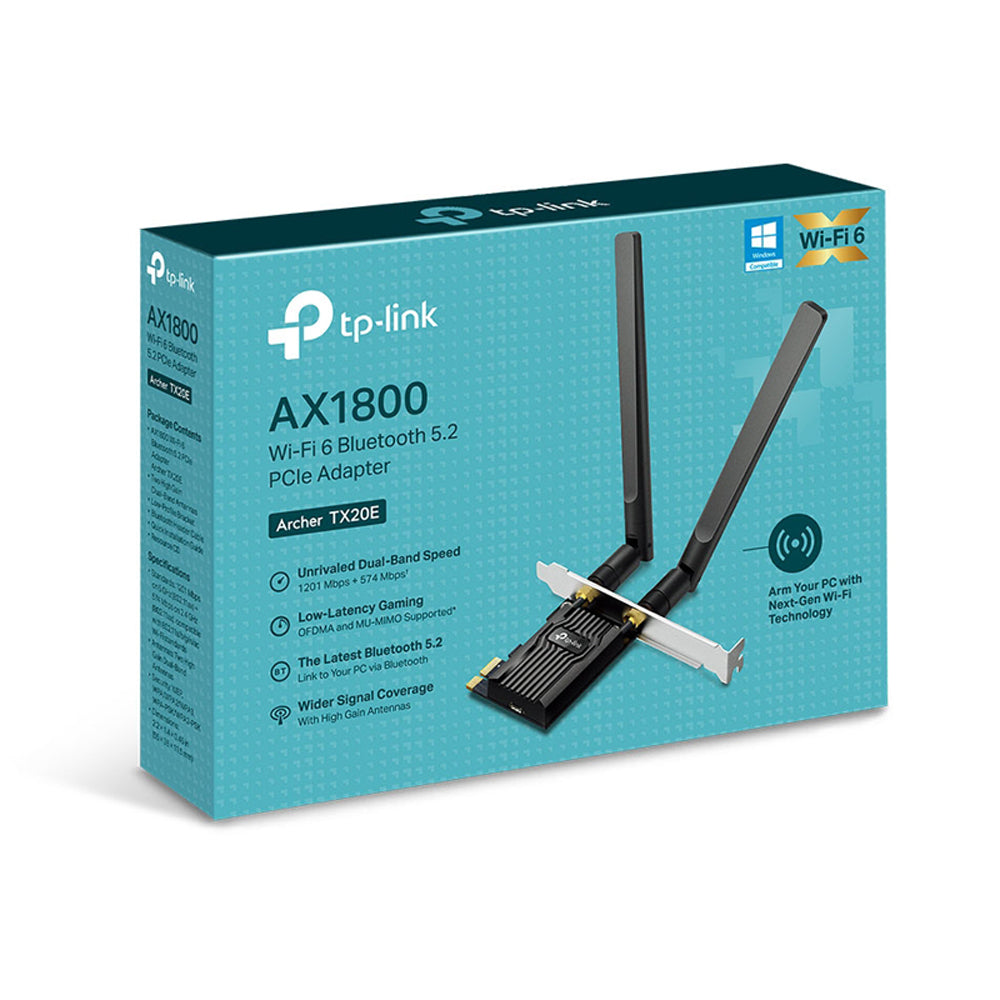

AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter | TP-Link
- Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)†‡

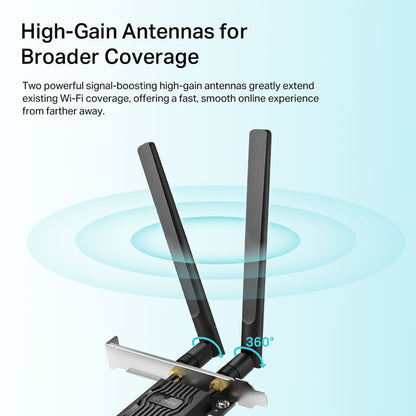

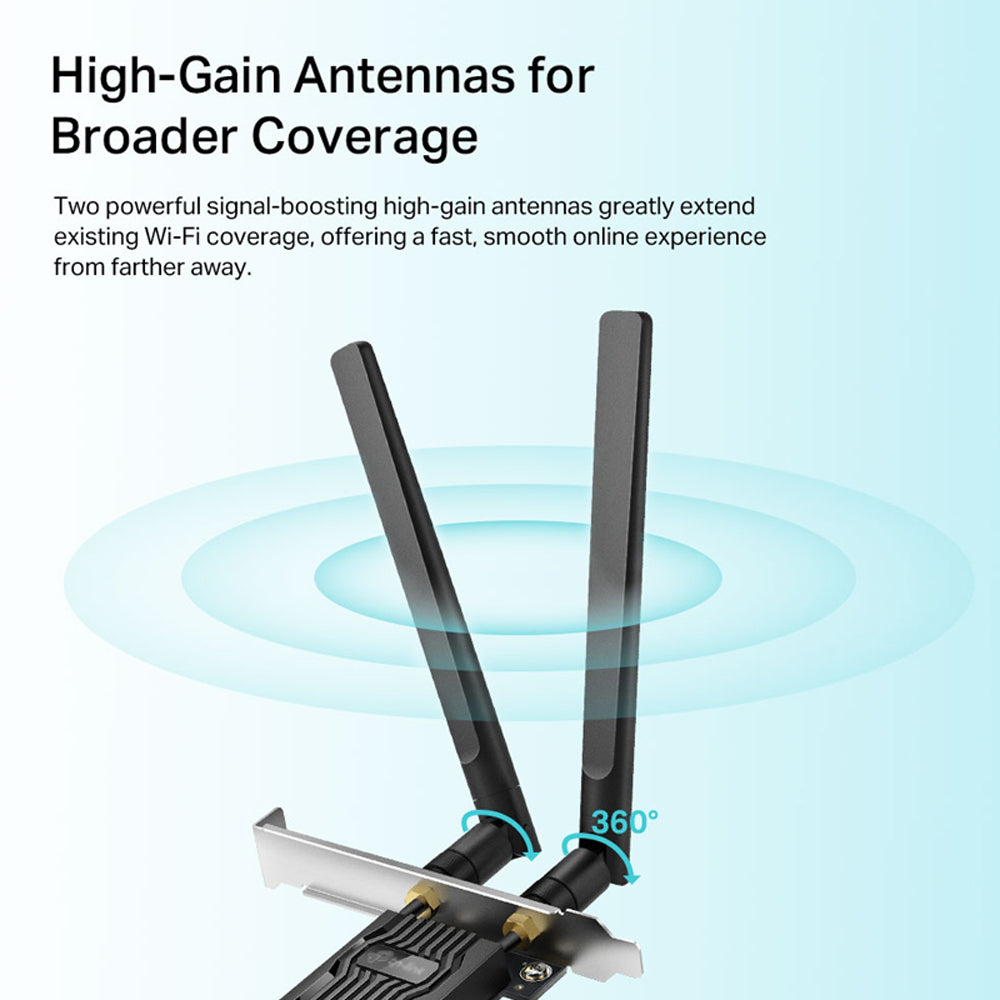

- Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
- Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2**
- Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
- Backward Compatibility – Full support for 802.11ax/ac/a/b/g/n standards
Features
Features
Specifications
Specifications
| HARDWARE FEATURES |
||
|---|---|---|
| Dimensions |
4.76 × 3.09 × 0.82 in (120.8 × 78.5 × 20.9 mm) |
|
| Antenna Type | Two High-Gain Dual Band Antennas | |
| Chip Set | Realtek Wi-Fi 6 Chipset | |
| WIRELESS FEATURES |
||
|---|---|---|
| Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/g/b 2.4 GHz Bluetooth 5.2 |
|
| WLAN Signal Rate |
5 GHz 11ax: Up to 1201 Mbps(dynamic) 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11ax: Up to 574 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
|
| WLAN Reception Sensitivity |
5 GHz : 11ax HE80: -57.0dBm 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11ac VHT80: -59.5dBm 11ac VHT40: -62.5dBm 11ac VHT20: -67.5dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11a 54Mbps: -74.0dBm 11a 6Mbps: -94.5dBm 2.4GHz : 11ax HE40: -60.0dBm 11ax HE20: -63.0dBm 11n HT40: -69.5dBm 11n HT20: -72.5dBm 11g 54Mbps: -74.0dBm 11b 11Mbps: -88.0dBm |
|
| WLAN Transmit Power |
5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP) |
|
| WLAN Modes | Infrastructure mode | |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x | |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM | |
| OTHERS |
||
|---|---|---|
| Certification | CE, FCC, RoHS | |
| System Requirements |
Windows 11/10(64-bit) only |
|
| Environment |
Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
What’s In The Box
What’s In The Box

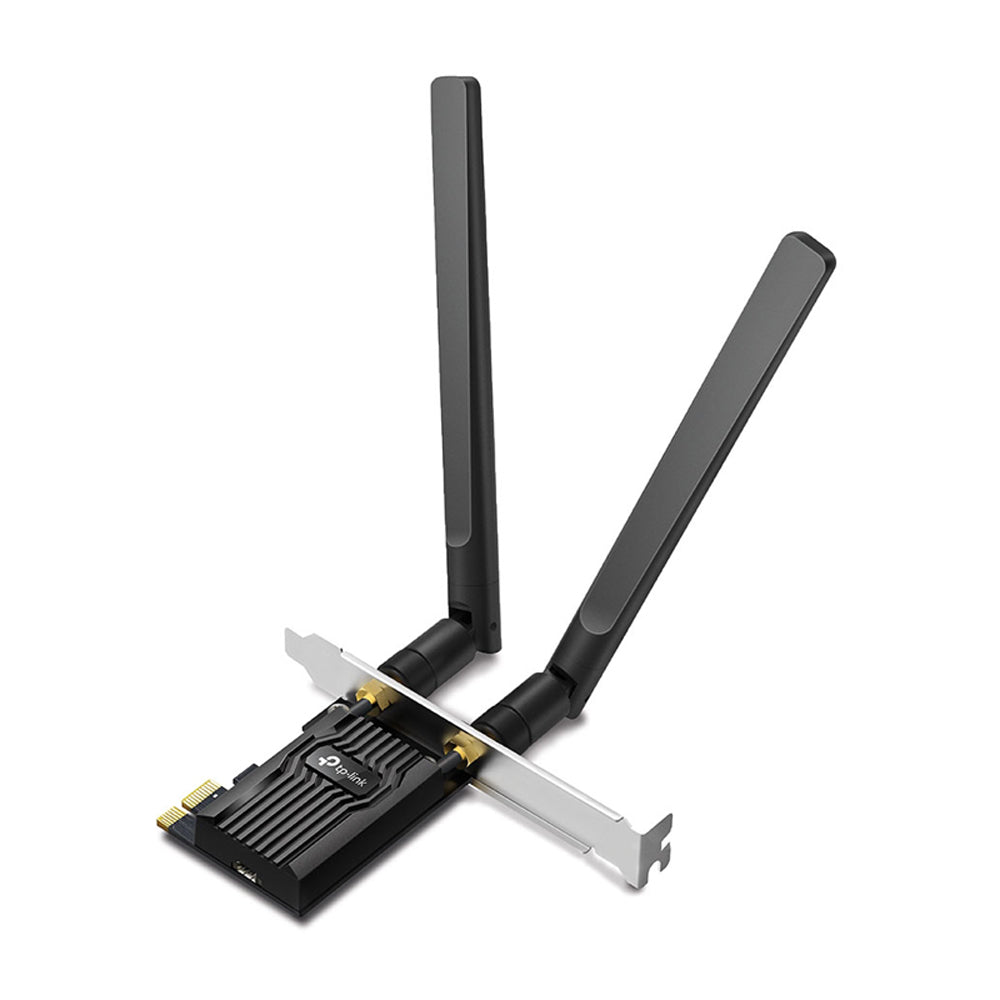

- Archer TX20E
- Two High-Gain Dual Band Antennas
- Low-Profile Bracket
- Bluetooth Header Cable
