Description
Auto OFF Springwound In-Wall Timer
Primus Cables springwound in-wall timers can be used for whole house fans, indoor/outdoor lighting, plus bathroom fans and lights, self storage.
Features
Features
- Variable Timing: Twist knob for time ON setting. Time ON lengths from 15 minutes to 12 hour vary by model.
- Hold Feature: Some models have position for constant ON.
- Easy-Set: No adjustments. Just wire and go!
- Easy Wiring: No neutral required. Great for retrofit! Use as single or in multi-gang box with no de-rating.
- Switch Type: SPDT "2 in 1" contacts wire as SPST also. Can wire normally on and countdown while off.
- Color: Ivory, Light Almond, White.
- Wall Plate: Fits standard or decorator style wall plates, see below (not included).
- Caution: This timer is not to be used in precision timing applications where inaccurate timing could have dangerous consequences (i.e. sun lamp, sauna, etc.).
Specifications
Specifications
- Input Voltage: 125/250/277VAC, 50/60Hz
- Terminal Range: #12AWG.
- Operating Temperature: 32 °F to +122 °F (0 °C to +50 °C).
| Part# | Interval Timer | Hold Feature | Color |

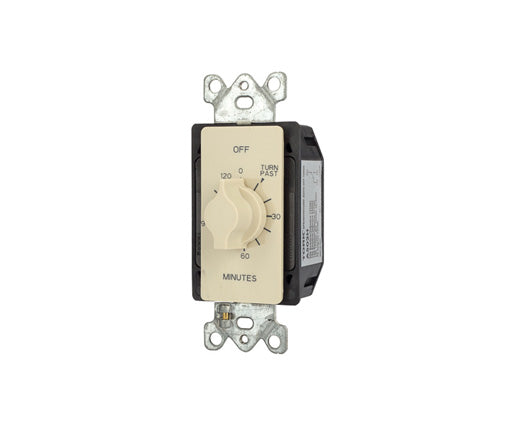

| NPNB-A502H | 2 Hours | No Hold | Ivory |

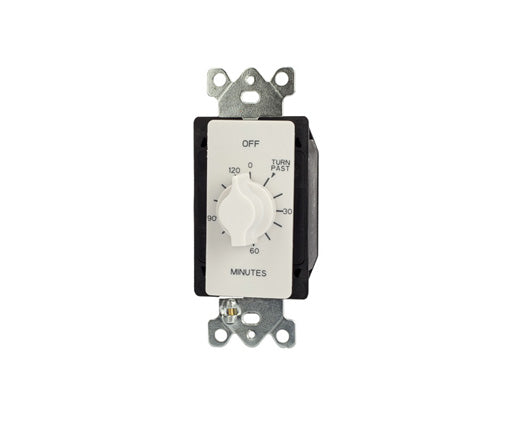

| NPNB-A502HW | 2 Hours | No Hold | White |

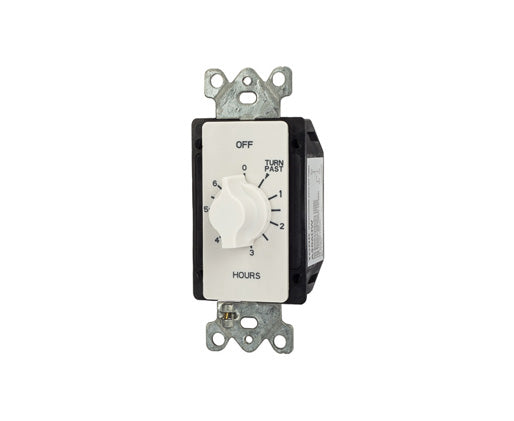

| NPNB-A506HW | 6 Hours | No Hold | White |

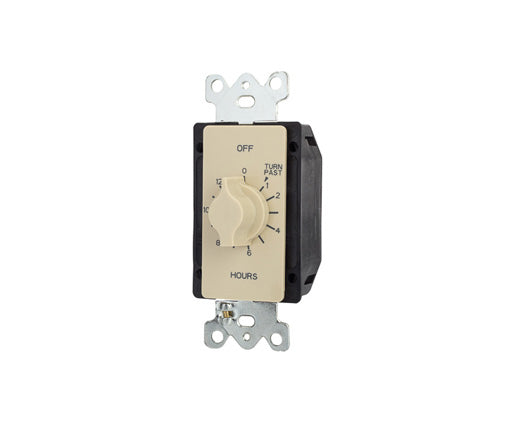

| NPNB-A512H | 12 Hours | No Hold | Ivory |

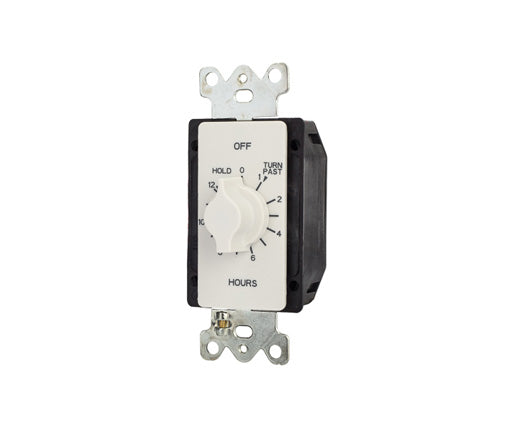

| NPNB-A512HHW | 12 Hours | With Hold | White |

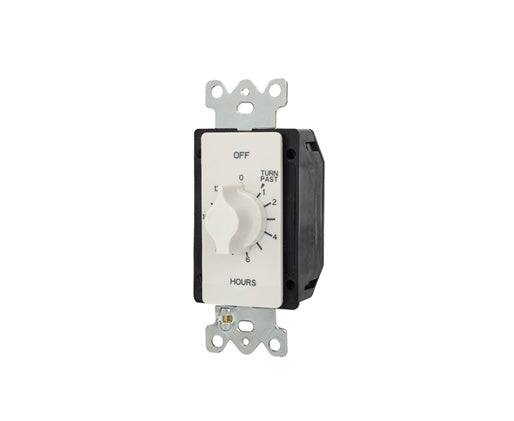

| NPNB-A512HW | 12 Hours | No Hold | White |

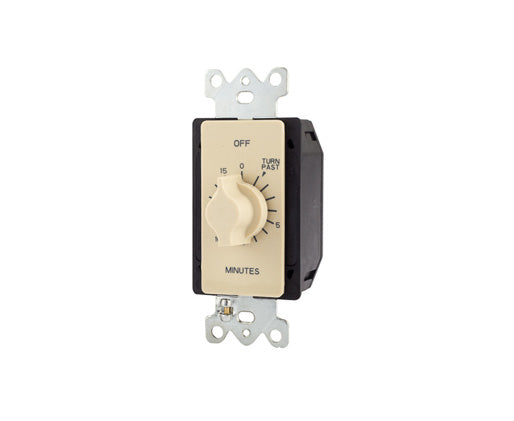

| NPNB-A515M | 15 Minutes | No Hold | Ivory |

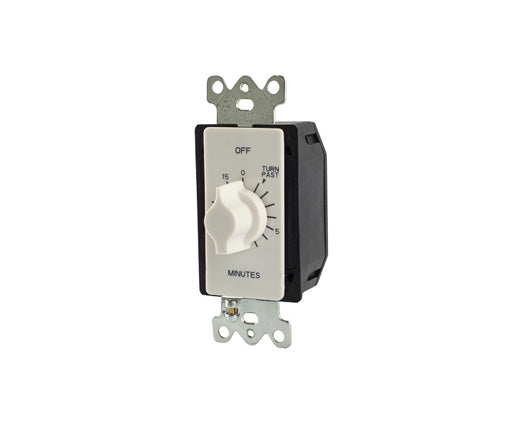

| NPNB-A515MW | 15 Minutes | No Hold | White |

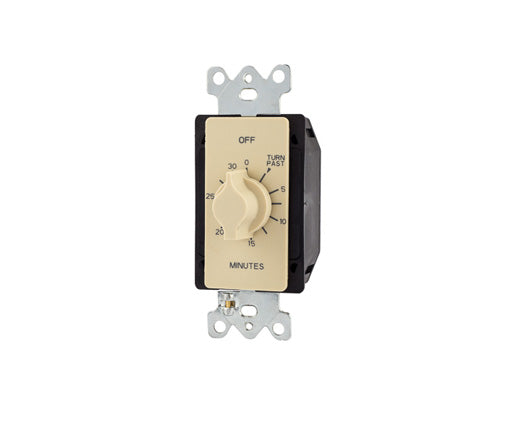

| NPNB-A530M | 30 Minutes | No Hold | Ivory |

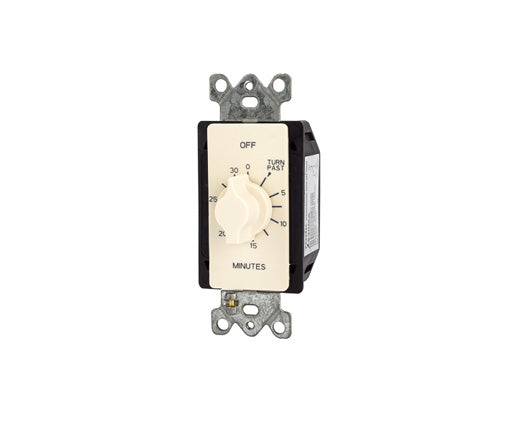

| NPNB-A530MA | 30 Minutes | No Hold | Lt. Almond |

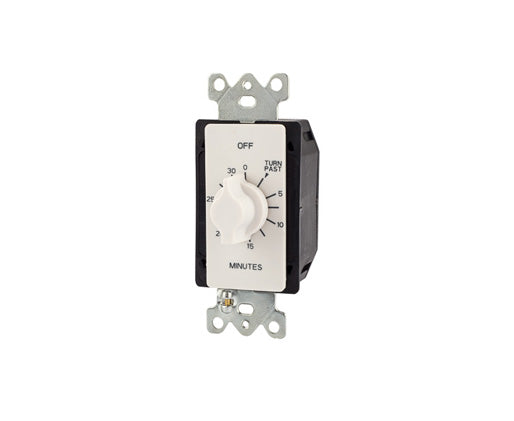

| NPNB-A530MW | 30 Minutes | No Hold | White |

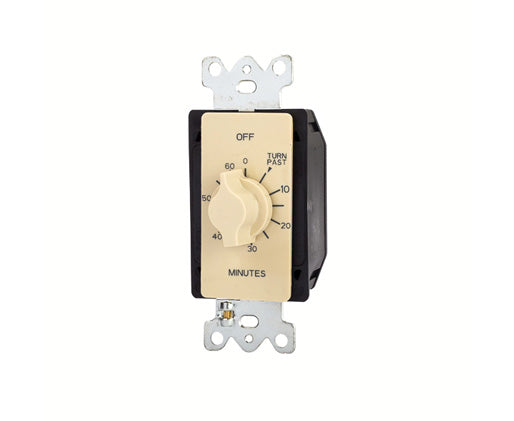

| NPNB-A560M | 60 Minutes | No Hold | Ivory |

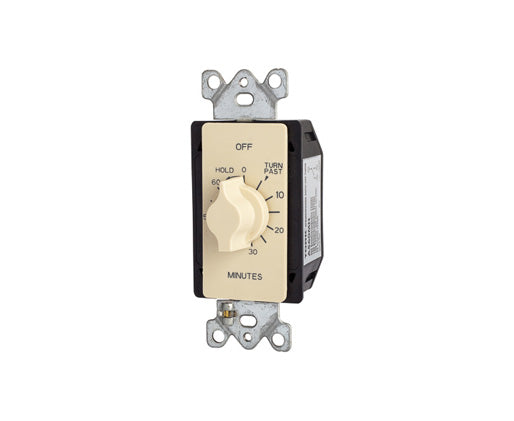

| NPNB-A560MH | 60 Minutes | With Hold | Ivory |

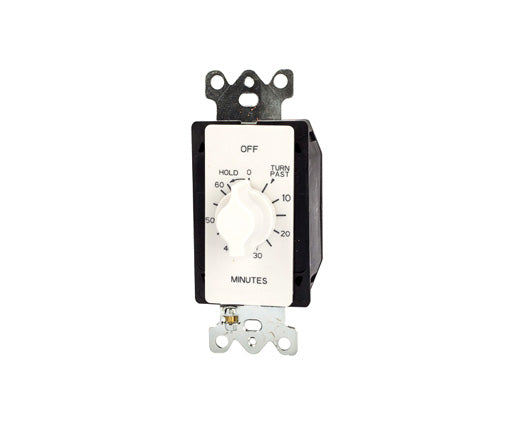

| NPNB-A560MHW | 60 Minutes | With Hold | White |

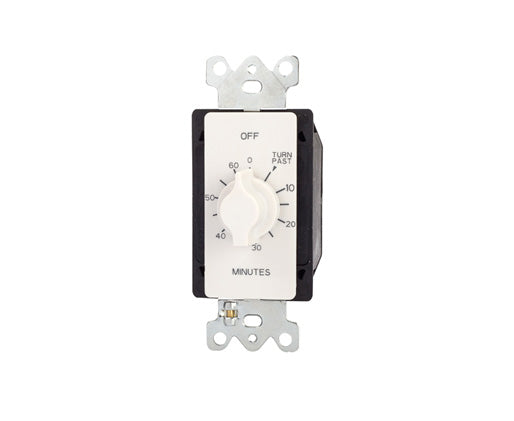

| NPNB-A560MW | 60 Minutes | No Hold | White |
What's In The Box
What's In The Box
- Qty 1 - Auto OFF Springwound In-Wall Timer
