Description

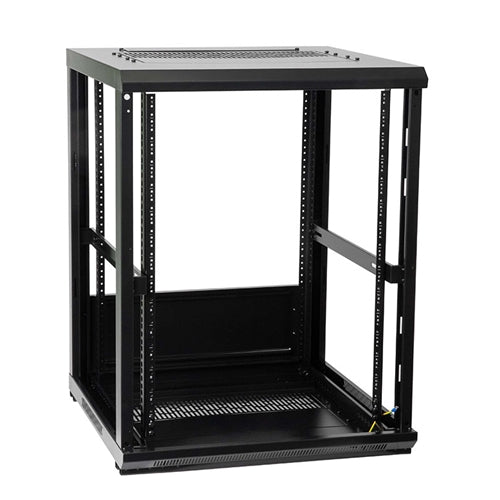

AV Cabinet, 15U, 27U, 36U
Primus Cable AV Cabinets are designed for flexibility and security, making them a great choice for a multitude of audio and video applications. Fully assembled and ready to perform out-of-the-box, they are equipped with pre-installed shelving, blank panels, and tapped 10-32 mounting rails.
Available in three sizes (15U, 27U and 36U), Primus Cable AV Cabinets are designed with a host of features, including casters and adjustable leveling feet that are provided for maximum mobility and sturdy placement.
Features
Features
- Two [2] pair of heavy-duty, EIA-compliant 19" mounting rails, complete with 10-32 tapped holes and RU markings
- Removable, reversible, and lockable tempered-glass front door which opens a full 180°
- Cable entry slots with removable covers on top, back and bottom
- Top panel includes a provision for two [2] optional double fan units (maximum of four [4] total fans)
Equipment Protection
- Welded frame of heavy gauge cold-rolled steel
- Locking front door & rear access panel limit unwanted access to equipment
- Shelf straps and backstops secure equipment to shelves
Flexibility
- Available in three standard sizes that can handle most any audio /video equipment configurations
- Includes both casters & adjustable leveling feet for both fixed & mobile installations
- Front door, side & rear panels are all removable for convenient access to equipment
- Vented top & bottom panels provide free air cooling, and are compatible with an optional fan unit when additional cooling is needed
Complete Solution
- Fully assembled with shelves & blanking panels pre-installed
- Easy to order - everything you need in one item number, no need for a complicated configuration tool
Specifications
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Product Type | AV Cabinet |
| Frame Material | Heavy Gauge Cold Rolled Steel |
| Finish | Black Powder Coat |
| Dimensions (H x W x D) | (Height Varies By Item#) x 23.6" x 23.6" |
| Rack Unit Quantity | 15U, 27U, 36U |
| Front Door | Removable, Reversible, & Lockable Tempered Glass, Opens Full 180º |
| Side Panels | Solid, Full Height, Removable |
| Top Panel |
(1) Solid Knockout, (1) Vented Knockout, (1) Removable Cable Entry Slot
[Note: Removing The Solid Knockout & The Vented Knockout Allows For The Possibility Of (2) Optional Double Fan Units] |
| Bottom Panel |
(1) Solid Knockout, (1) Vented Knockout, (1) Removable Cable Entry Slot [Note: Removing The Solid Knockout & The Vented Knockout Allows For The Possibility Of (2) Optional Double Fan Units] |
| Rear Panel | (1) 3/4 Height Solid Removable Panel, (1) 1/4 Height Removable Cable Knockout |
| Equipment Support | Two Pairs Of Mounting Rails, Adjustable Depth Rails (16.25" - 22"); 1.75" RU Spacing, Marked & Numbered On Rails; 19" W, EIA-310-D Universal Vertical Hole Spacing; 10-32 Threaded Holes |
| Grounding | 14 AWG Ground Wire Connects Door to Cabinet Frame |
| Static Loading Capacity |
15U = 1,500 lbs 27U = 750 lbs 36U = 850 lbs |
| PreInstalled Accessories | Shelving, Blank Panels & Lacing Bars, Amount Varies By Size |
| Compliance & Standards | ANSI/EIA RS-310D, IEC60297-2, DIN41194; Part 1, DIN41494; Part 7 |
Additional Information
| Illustration | |
|---|---|
 |
What’s In The Box
What’s In The Box
- Qty 4 - Adjustable Leveling Feet
- Qty 4 - Casters Shelf Straps
- Qty (Varies) - Shelf Straps
- Qty (Varies) - Shelf Backstops
- Qty 1 - Grounding Kit
- Qty 16 - 10-32 Mounting Screws
- Qty 1 - AV Cabinet
