AXE5400 Tri-Band Mesh Wi-Fi 6E System

by TP-Link
SKU: Deco XE75 Pro
Various lead times may apply to this product. Please contact us for more details.
*These require a router in order to provide an access point.


AXE5400 Tri-Band Mesh Wi-Fi 6E System

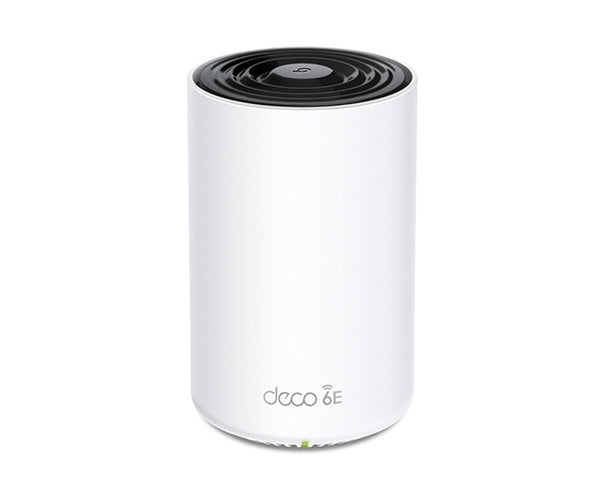

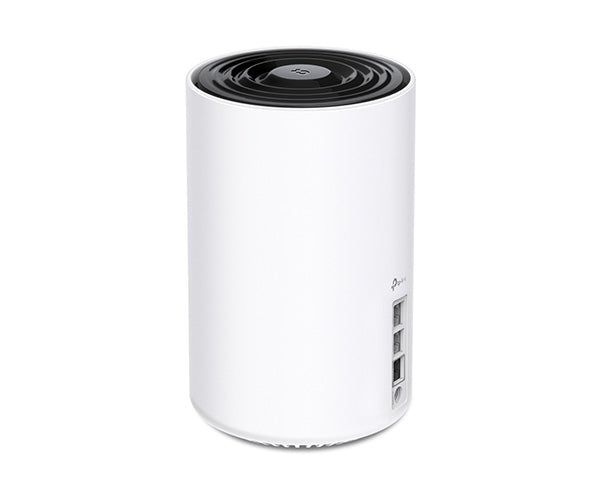

Enjoy fast and reliable 8K video streaming, online gaming, and video chat experiences throughout your home with the Deco XE75 Pro AXE5400 Wireless Tri-Band Gigabit Mesh Wi-Fi System.

By taking advantage of the 2.4 GHz, 5 GHz, and 6 GHz bands, the Deco XE75 Pro provides a total bandwidth of 5378 Mb/s, supporting up to 200 simultaneous devices. This Wi-Fi 6E (802.11ax) module features one 2.5G Ethernet port that supports multi-Gig internet services and devices in addition to two Gigabit speed ports. All three Ethernet ports are auto-sensing, which allows modules to operate as a router when connected to a broadband modem or as a satellite to an existing mesh network.

A mesh network uses a single network ID (SSID) while the Deco XE75 Pro's AI-driven algorithms automatically ensure your wireless devices maintain a strong connection for seamless performance while moving from room to room.

An integrated firewall, WPA3 wireless encryption, and TP-Link HomeShield features help to keep your network protected from a variety of online threats. Quickly configure and maintain your network, including setting up guest access, using the Deco mobile app.

Wireless Application Network Map

Tri-Band Wi-Fi

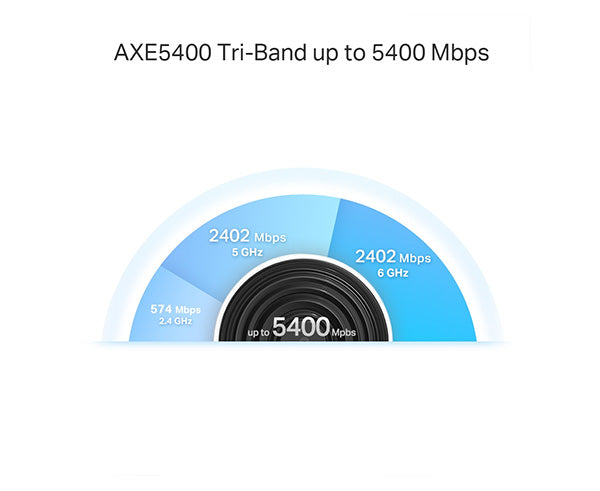

Each Deco XE75 Pro module features four internal high-gain antennas that can transfer up to 2402 Mb/s over the 6 GHz and 5 GHz bands in addition to 574 Mb/s on the 2.4 GHz frequency. The less congested 6 GHz band provides a fast, uninterrupted connection with other Wi-Fi 6E compatible devices.

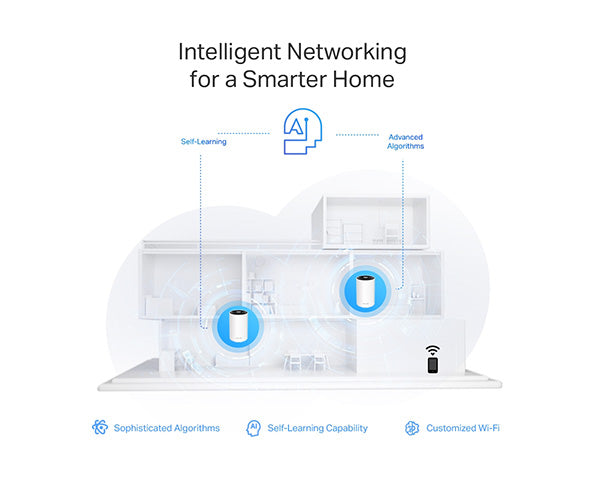

AI-Driven Mesh
The Deco XE75 Pro system uses AI algorithms that intelligently learns the network environment, providing Wi-Fi connectivity that's uniquely customized for your home.

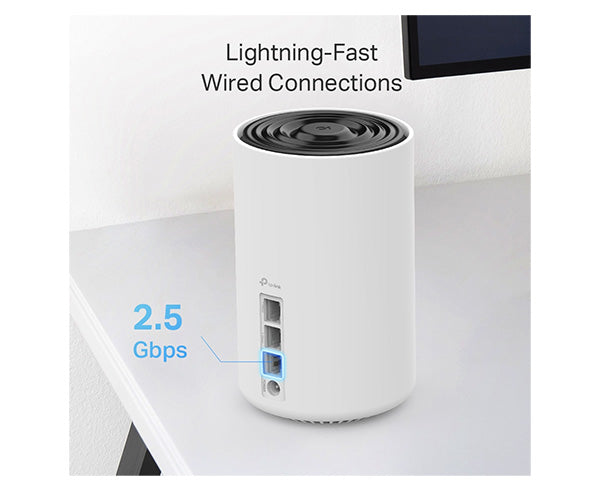

Multi-Gig Connectivity
The 2.5G Ethernet port allows you to take full advantage of multi-Gig internet services and network devices. Each module also has two 1G Ethernet ports.

Versatile Wired Connections
Simply connect your cable or DSL modem to any of the three auto-sensing Ethernet ports to designate it as the router. When in satellite mode, the Ethernet ports may be used to connect wired devices such as computers, smart TVs, and video game consoles.

TP-Link HomeShield
Secure your network with comprehensive network protection, parental controls, and more. This system includes TP-Link HomeShield basic features. A premium subscription is required to enable HomeShield Pro features.

Strong Security
Your network is kept safe from intruders with a built-in firewall and WPA3 wireless encryption.

Easy Setup
Use the Deco mobile app to configure, maintain, and monitor your network from almost anywhere.

Quick Expansion
Eliminate dead zones by adding TP-Link Deco devices to your mesh network to increase your Wi-Fi coverage. All Deco models can work together on the same network.

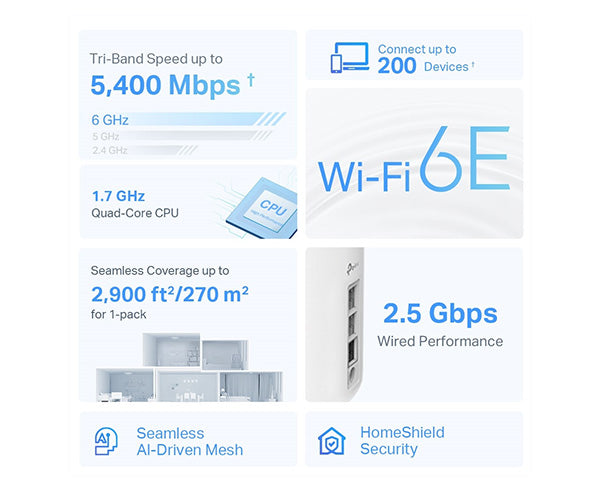

  • Whole Home WiFi 6E  – Cover up to 2,900 ft2 with next-gen seamless WiFi and make dead zones and buffering a thing of the past†‡
  • Brand-New 6 GHz Band – Experience the latest frequency of WiFi, eliminating interference from all legacy devices. The 6 GHz band also delivers a powerful dedicated backhaul to further streamline the WiFi performance of non-6E devices

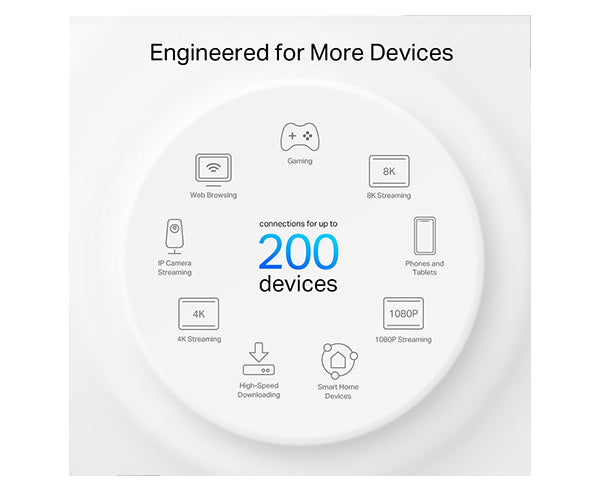

  • True Tri-Band Speed – All three WiFi bands work together to unleash your network’s total speeds up to 5,400 Mbps for 200 devices
  • AI-Driven Mesh – Unites your home under one name and password while delivering the best connections as you move room to room*
  • TP-Link HomeShield – Keeps your home network safe with cutting-edge features for network and IoT protection§
  • Setup Made Easier Than Ever – The Deco app walks you through setup step-by-step
  • Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem



Standards Wi-Fi 6E
IEEE 802.11ax 6 GHz
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AXE5400
6 GHz: 2402 Mbps (802.11ax, HE160)
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)

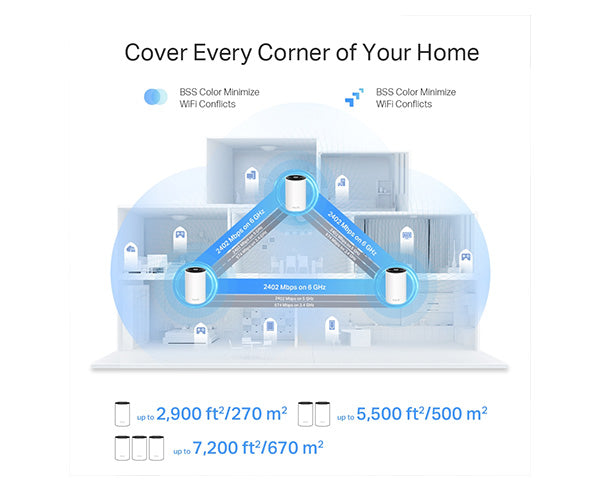

WiFi Range 4-7+ Bedroom Houses (3-pack)
3-5 Bedroom Houses (2-pack)
1-3 Bedroom Houses (1-pack)
TP-Link Mesh Technology
Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

AI-Driven Mesh
Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

4× High-Gain Antennas (Internal)
Multiple antennas form a signal-boosting array to cover more directions and large areas

A newly-opened 6 GHz band brings more bandwidth and faster speeds

Concentrates wireless signal strength towards clients to expand WiFi range
WiFi Capacity Very High
Distribute devices to different bands for optimal performance

Simultaneously communicates with multiple MU-MIMO clients

Simultaneously communicates with multiple WiFi 6 clients

6 Streams
More than enough bandwidth for connected devices
Working Modes Router Mode
Access Point Mode
Ethernet Ports 1× 2.5 Gbps Port + 2× Gigabit Ports

*Per Deco Unit
Supports WAN/LAN auto-sensing
Buttons Reset Button
WiFi Encryption WPA-Personal
Network Security SPI Firewall
Access Control

HomeShield Security
Real-Time IoT Protection
Malicious Site Blocker
Intrusion Prevention System
DDoS Attack Prevention
Home Network Scanner
Guest Network 1× 6 GHz Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
Protocols IPv4
Service Kits HomeShield
Learn More>
Parental Controls HomeShield Parental Controls
Custom Profiles
Professional Content Filter Library
Family Time
Off Time
Time Rewards
Family Online Time Ranking
Pause the Internet
Weekly and Monthly Reports
WAN Types Dynamic IP
Static IP
Quality of Service HomeShield QoS
QoS by Device
Cloud Service OTA Firmware Upgrade
TP-Link ID
NAT Forwarding Port Forwarding
IGMP Snooping
DHCP Address Reservation
DHCP Client List
Management Deco App
WiFi Transmission Power CE:
<20 dBm (2.4 GHz)
<23 dBm (5 GHz)
<23 dBm (6 GHz)

<30 dBm (2.4 GHz)
<30 dBm(5 GHz)
<30 dBm(6 GHz)
Dimensions (W×D×H) 4.1 × 4.1 × 6.7 in
(105 × 105 × 169 mm)
Certifications CE, FCC, RoHS
Environment Operating Temperature: 0°C~40°C (32 °F~104 °F)
Storage Temperature: -40°C~60°C (-40 °F~140 °F)
Operating Humidity: 10%~90% RH
Storage Humidity: 5%~90% RH

Additional Information

Link to Download Deco App

What’s In The Box

What’s In The Box

  • 1 Deco XE75 Pro unit
  • 1 RJ45 Ethernet cable
  • 1 Power adapters
  • 1 Quick Installation Guide
