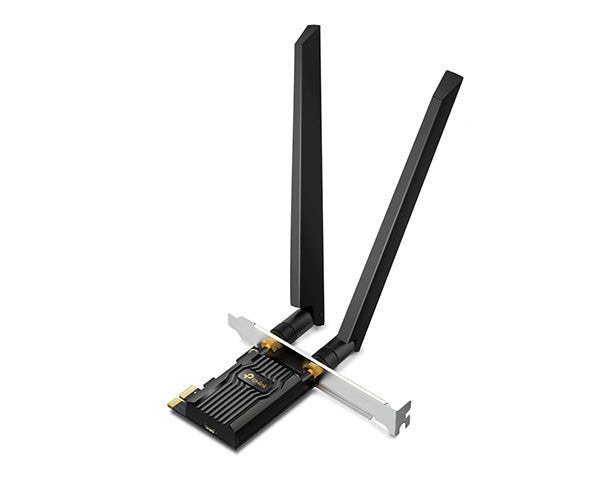

AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
Upgrade Your WiFi to 6E
The Archer TXE72E AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter. WiFi 6E means WiFi 6 extended to the 6 GHz band, a newly-opened frequency band that adds more bandwidth, faster speeds, and lower latency. This opens up resources for future innovations in AR/VR, 8K streaming, and more. Archer TXE72E arms your PC with the newly opened 6 GHz band, unlocking your WiFi 6E router’s full potential. Enjoy unimpeded streaming on the 6 GHz band—exclusive to WiFi 6E devices. This prevents drops in speed and interference from legacy devices.
Blazing Fast for Latency Free Streaming
Archer TXE72E arms your PC with the newly opened 6 GHz band, unlocking your WiFi 6E router’s full potential. Enjoy unimpeded streaming on the 6 GHz band—exclusive to WiFi 6E devices. This prevents drops in speed and interference from legacy devices.

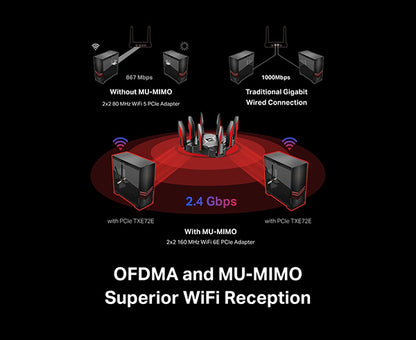

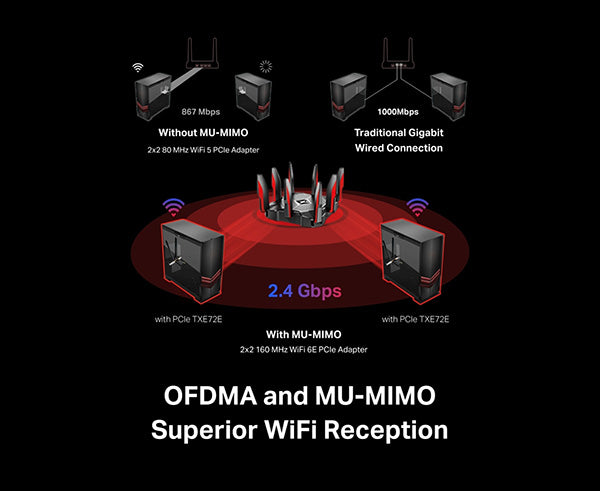

Superior WiFi Reception
Archer TXE72E brings your PC’s WiFi reception to the next level with the revolutionary combination of OFDMA and MU-MIMO. This ensures the efficiency of your PC’s WiFi connection by allowing more devices to communicate with your router simultaneously, rather than waiting in turn for data.
Immersive Game World with Lower Latency
Lower latency is key to seamless experiences in real-time applications like video conferencing and gaming. To achieve this, Archer TXE75E reduces lag by up to 75% with the Intel® Wi-Fi 6E chipset.
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
The Latest Bluetooth 5.3
Coordinate your game controllers, headphones, and keyboards with the latest Bluetooth standard. Archer TXE72E equips your PC with Bluetooth 5.3, which achieves faster speeds and broader coverage.
Your Security Guard
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.
- Easy Setup - Simple software installation via disk with the intuitive Utility
- Low-Profile Bracket - In addition to the standard bracket, a low-profile bracket is also provided for mini tower computer cases
- Operating System - Supports Windows 10, 11 (64-bit)
- Unparalleled Tri-Band Speed — Boost your overall speeds up to 2402 Mbps (6 GHz) + 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
- WiFi 6E Standard — Expand to the clearer, broader 6 GHz band for more bandwidth and faster speeds. Currently 6 GHz Band only supported on Windows 11.
- Reliable Connections — The latest Intel® Wi-Fi 6E chipset’s reduced latency and improved reliability unlocks your Wi-Fi 6E router’s full potential
- Wider Signal Coverage — Two multi-directional antennas are designed for optimal signal reception
- Bluetooth 5.3 — The latest Bluetooth technology achieves faster speeds and broader coverage
- Improved Security — The latest security enhancement, WPA3, provides enhanced protection in personal password safety
- Reliably Engineered — The specialized heatsink and gold plating improve stability and performance even at high CPU temps
- Backward Compatibility — Full support for 802.11ax/ac/a/b/g/n standards
|Dimensions||4.72 x 3.09 x 0.82 (inches)
120 x 78.5 x 21 (mm)
|Antenna Type||2× High-Gain Tri-Band Antennas|
|Wireless Standards||IEEE 802.11a/b/g/n/ac/ax|
|WLAN Signal Rate||6 GHz:
11ax: Up tp 2402Mbps
11ax: Up to 2402 Mbps(dynamic)
11ac: Up to 1732 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)
11ax: Up to 574 Mbps(dynamic)
11n: Up to 400 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
|WLAN Reception Sensitivity||6 GHz:
11ax HE160 MCS0:-86
11ax HE160 MCS11:-56
11ax HE80 MCS0: -90 dBm
11ax HE80 MCS11: -59 dBm
11a 54Mbps: -77 dBm
11ac VHT80 MCS0: -92dBm
11ac VHT80 MCS9: -64dBm
11ax HE40 MCS0: -91 dBm
11ax HE40 MCS11: -60 dBm
11g 54Mbps: -76 dBm
11n HT40 MCS7: -72dBm
|WLAN Transmit Power||5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP)
2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)
6 GHz: 12dBm(FCC)
|WLAN Modes||Infrastructure mode|
|Wireless Security||WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK|
|Certification||FCC, CE, RoHS|

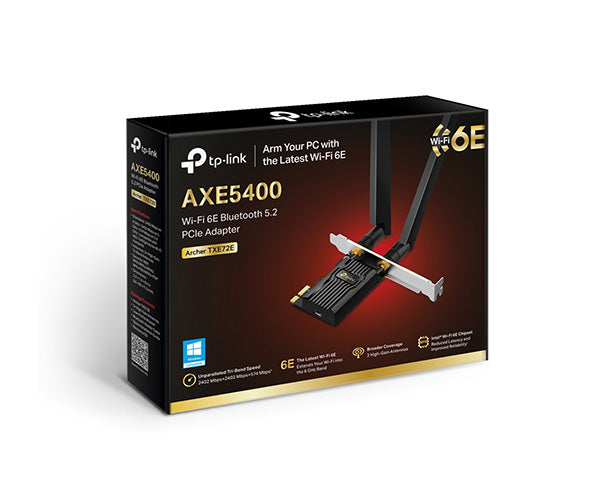

|Package Contents||Archer TXE72E
2× High-Gain Antennas
Bluetooth Header Cable
Quick Installation Guide
|System Requirements||Supported operating systems include Windows 10, 11(64-bit).
Currently 6 GHz Band only supported on Windows 11.
|Environment||Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
